Icom IC-M85 Service Manual page 23

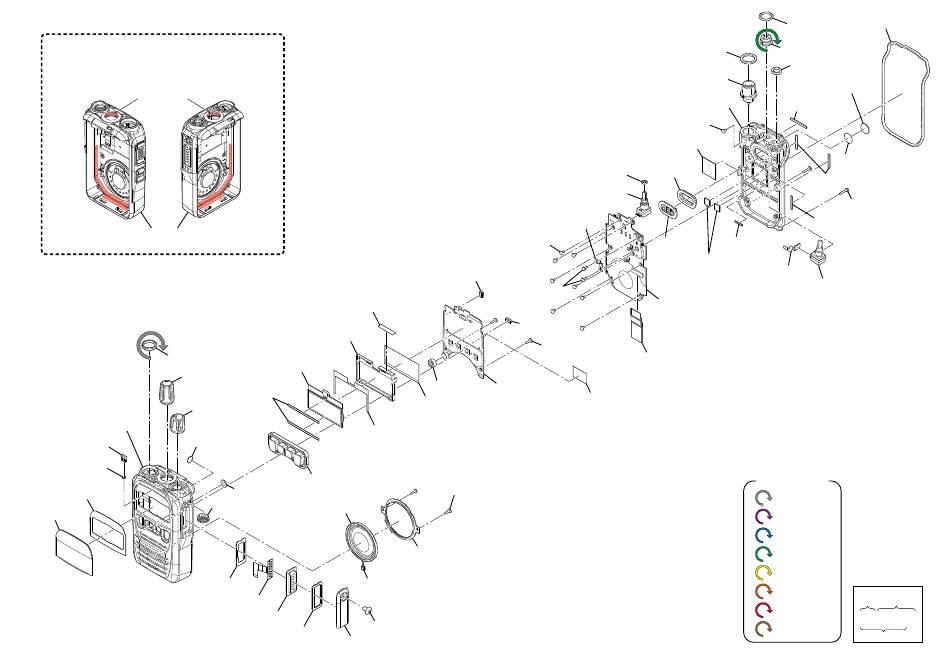

Apply the grease to the following area of the front panel
Used grease: G501 (80G) SHINETSU (8950002750)
Apply all around
MP1 (CHASSIS)
MP48 (CHASSIS)
(8830003440)
MP63 (CHASSIS)
(8610016370)
MP61 (CHASSIS)
(8610016360)
MP1 (CHASSIS)
(8210033312)
MP4 (CHASSIS)
MP16 (CHASSIS)
(8930093460)
MP5 (CHASSIS)
(8930083680)
MP7 (CHASSIS)
(8930097360)
MP8 (CHASSIS)
(8310091550)
MP17 (CHASSIS)
MP15 (FRONT)
(8930098850)
MP11 (FRONT)
(8210033320)
DS6 (FRONT)
(5030004400)
MP14 (FRONT)
(8930085790)
MP13 (FRONT)
(8930097800)
(8930095070)
MP9 (CHASSIS)
(Refere to the parts list.)
MP10 (CHASSIS)
(8930095290)
MP6 (CHASSIS)
SP1 (CHASSIS)
(8930070011)
(2510002080)
W1 (CHASSIS)
(8930093591) (8920001910)
EP1 (CHASSIS)
(8940000020)
MP18 (CHASSIS)
(8950009011)
MP66 (CHASSIS)
MP19 (CHASSIS)
(8810010771)
(8930093580)
MP65 (CHASSIS)
(8210032940)
MP40 (CHASSIS)
(8930074350)
S401 (MAIN)
(2250001060)
MP44 (CHASSIS)
(8930097910)
MP46 (CHASSIS)
(8810011050)
MP5 (FRONT)
(8930070271)
MP45 (CHASSIS)
(8810008641)
MP6 (FRONT)
(8930070271)
MP24 (CHASSIS)
(8810009181)
MP11 (CHASSIS)
FRONT UNIT
(8930093570)
MP8 (FRONT)
MP12 (FRONT)
(8930098820)
(8930097380)
MP14 (CHASSIS)
(8810009181)
MP13 (CHASSIS)
(8930097220)
6-2
MP41 (CHASSIS)
(8930088050)
MP39 (CHASSIS)
MP36 (CHASSIS)
(8830004310)
(8850003421)
MP38 (CHASSIS)
(8830001470)
J1 (CHASSIS)
(6910021492)
MP51 (CHASSIS)
MP31 (CHASSIS)
(8930097400)
(8010024300)
MP37 (CHASSIS)
(8810011050)
MP34 (CHASSIS)
(8930098630)
MP42 (CHASSIS)
(8930093560)
MP54 (CHASSIS)
MP33 (CHASSIS)
(8930098620)
MP401 (MAIN) MP35 (CHASSIS)
(8950008990)
(8930085880)
MP32 (CHASSIS)
(8930097410)
EP2 (CHASSIS)
(8940000090)
R1 (CHASSIS)
(7210003840)
MAIN UNIT
W2 (CHASSIS)
(8910000570)
Tightening torque
: <0.8 (N•m)>
: <0.7 (N•m)>
: <0.6 (N•m)>
: <0.5 (N•m)>
: <0.4 (N•m)>
: <0.3 (N•m)>
: <0.2 (N•m)>
: <0.1 (N•m)>
MP47 (CHASSIS)
(8930096990)
MP53 (CHASSIS)
(8930059800)
MP52 (CHASSIS)
(8930059830)
(8930098660)
MP49 (CHASSIS)
(8810010850)
Legend:
Ref.No. Unit Name
MP1 (CHASSIS)
(1234567890)
Parts No.
