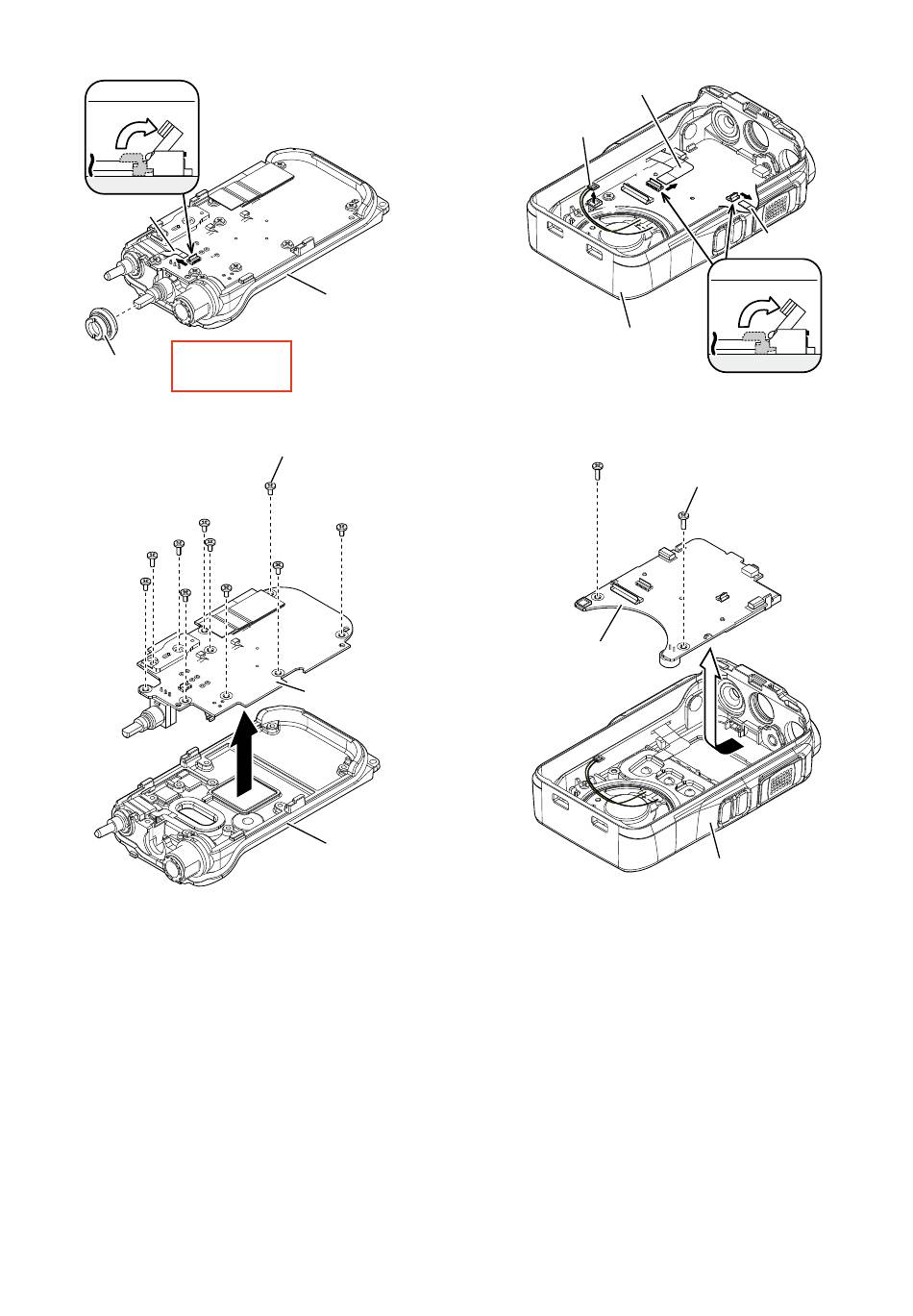

2. REMOVING THE MAIN UNIT
1) Disconnect the flat cable and remove dial nut from
the MAIN UNIT.
FLAT CABLE
Lift up
flat cable
Flat cable
J404 J404
Remove with;
Dial nut
"ICOM Driver (AG)"
(8960000560)
2) Separate the MAIN UNIT from the chassis.
Chassis
Screws ×10
MAIN UNIT
Chassis
3. REMOVING THE FRONT UNIT
1) Disconnect 2 flat and speaker cables from the
FRONT UNIT.
Speaker cable
J4 J4
2) Remove 2 screws, then separate the FRONT UNIT
from the front panel.
FRONT UNIT
3-2
Flat cable
J5 J5
J3
Flat cable
FLAT CABLE
Lift up
Front panel
flat cable
Screws ×2
Front panel
