Install Arm Extensions then Fasten It

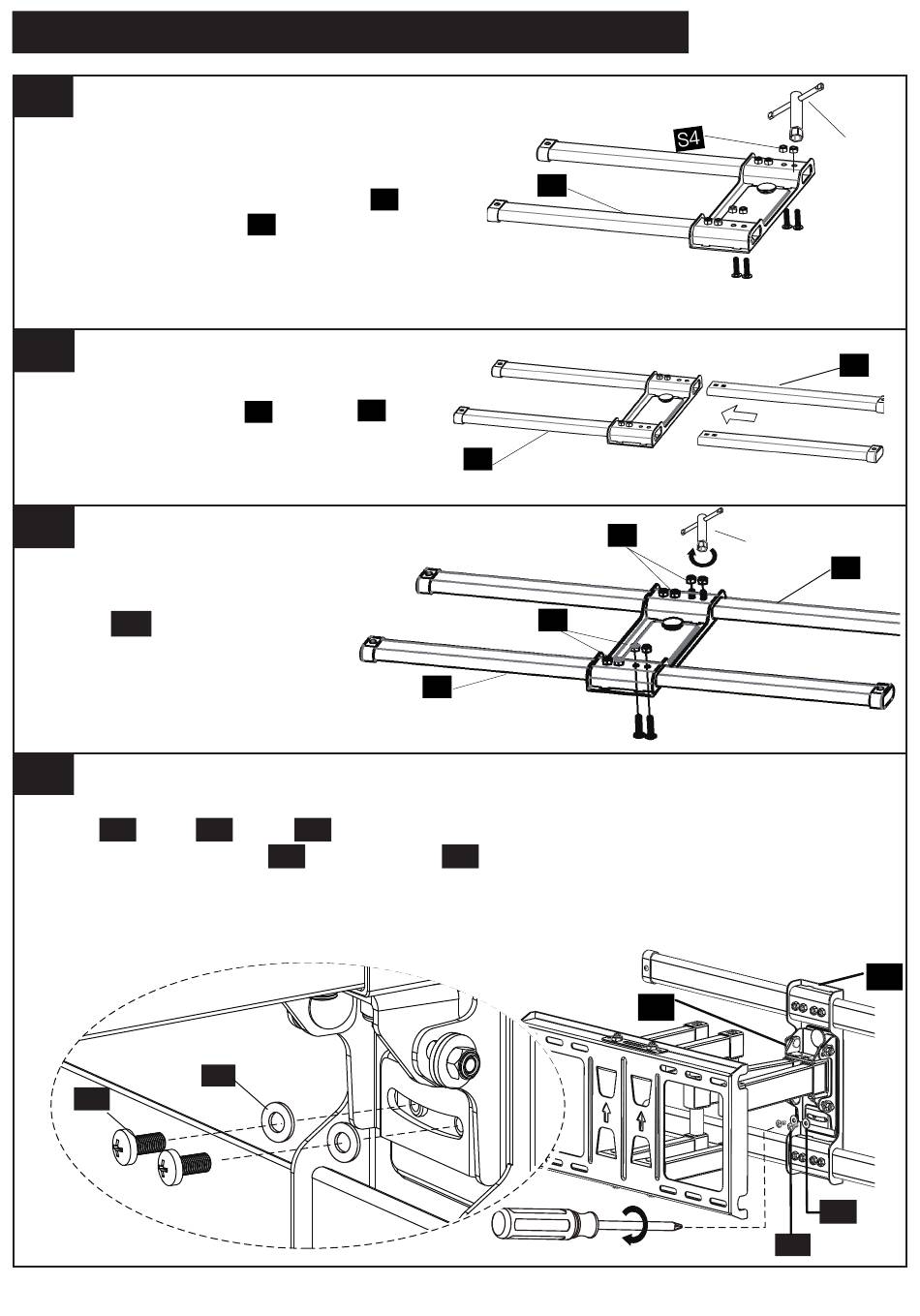

Step 4
4-1
Use socket spanner C to remove the
pre-assembed nuts and screws
from the extensions 02 and save
them to use.
4-2
Insert the extensions
4-3
Fasten the nuts and
screws S4 x8.
S4
4-4
Hang 02 and 03 into 01 , and using Screw Driver secure with
