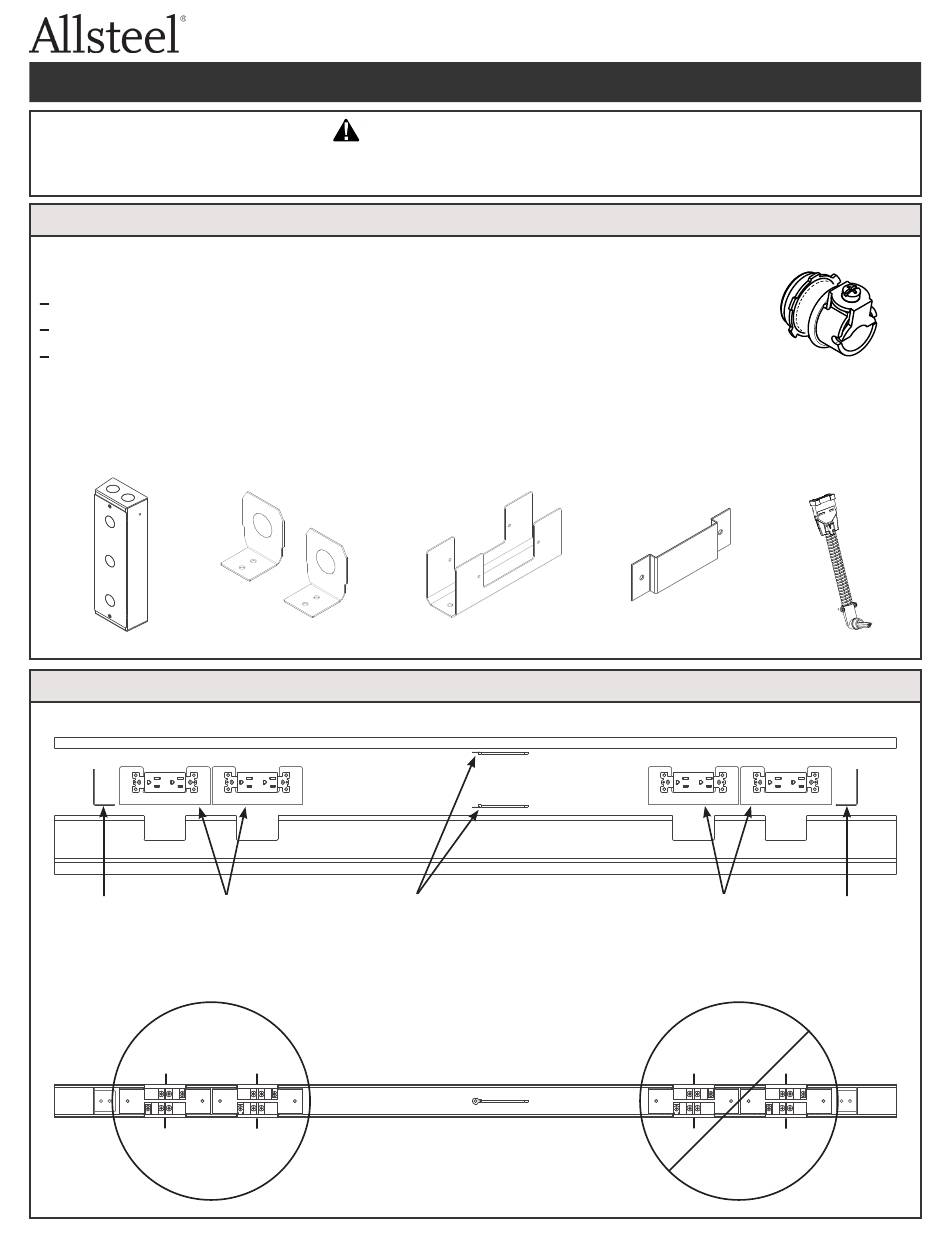

Improperly installed electrical components can result in personal injury and/or property damage. Installations
should always be performed by a licensed electrician in compliance with national and local electrical codes.
Hardwired Electrical Applications
N
: This installation packet pertains to the electrical systems required within the Further product
ote
line under Chicago and New York electrical codes.
1 - Standard in-feeds are not allowed in Chicago or New York.
2 - Standard Junction Blocks, Jumpers, and Duplex Receptacles are not allowed in Chicago.
3 - Customer is to provide all cable, conduit, and fittings. A 1/2" Tite-Bite connector or equivalent
is required for proper connection to provided junction block and beam bracket. (shown right)
Components
Junction Box
System Overview
Note - A hardwired beam should be fully assembled as shown.
Beam
Electrical
Bracket
Brackets
Note - Duplex receptacles which are placed back-to-back from one another must be wired to the
same circuit to prevent potential arcing from wire interference.
Correct
Circuit 1
Circuit 1
Page 1 of 5
W A R N I N G
Chicago
Grounding
Straps
Circuit 2
Circuit 2
Installation Instructions
Chicago
Chicago
New York
Port Cover
Conduit In-feed
Electrical
Brackets
Incorrect
Circuit 1
Circuit 1
Circuit 2
Circuit 2
Beam
Bracket
3430357500
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Allsteel Further Series
Summary of Contents for Allsteel Further Series
- Page 1 Further Installation Instructions W A R N I N G Improperly installed electrical components can result in personal injury and/or property damage. Installations should always be performed by a licensed electrician in compliance with national and local electrical codes. Hardwired Electrical Applications : This installation packet pertains to the electrical systems required within the Further product line under Chicago and New York electrical codes.
- Page 2 Further Installation Instructions In-Feed Junction Box - Flexible Hub Note - A junction box is only necessary if a single in-feed is being split to multiple powered beams. Otherwise, in-feed conduit may be attached directly to a beam bracket at the end of a run. Y-Connectors may also be used in conjunction with the beam brackets as shown below.
- Page 3 Further Installation Instructions In-Feed Junction Box - Fixed Hub Note - Usage guidelines for Flexible Hubs apply. 1 - Attach the mounting bracket to top of hub. Screws will be reused from existing install. 2 - Route in-feed through hub and attach to bottom of junction box, then attach the box to the mounting bracket.
- Page 4 Further Installation Instructions Beam Bracket Note - Beam Brackets are used to close off area containing duplex receptacles within beams. Any beam containing power must have a beam bracket installed on each end. 1 - Insert bracket down into electrical port with bend facing inwards; slide towards end of beam until roughly 2.5”...
- Page 5 Further Installation Instructions Grounding the Beam Note - Two grounding straps are provided with each UN8BBKCH model. Both beam and top cap are required to be grounded within the enclosed area created by the beam brackets. 1 - Position grounding strap near the center of the beam as to not interfere with brackets and can be easily connected to the ground source.
