ENFORCER ECO-LARM RM-R100-TLQ Manual

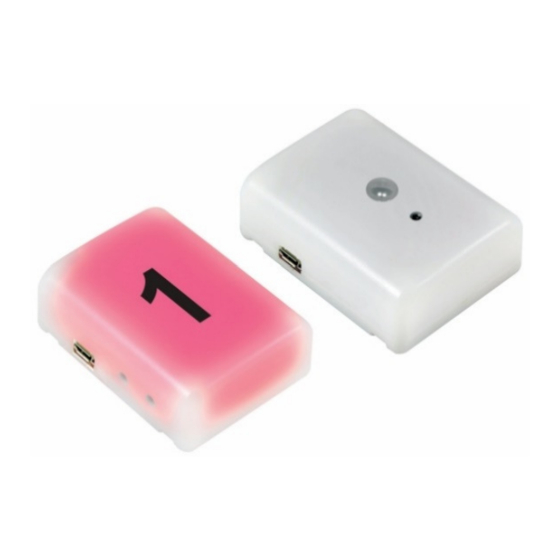

Room occupancy monitor
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual

Features:

• Programmable to use PIR (movement),
phototransistor (light), or door sensor input
(switch) to detect occupancy
• 1-Room indicator has a programmable,
built-in buzzer for service input
• Programmable reminder, 3~30 min
• Simple to install – micro USB or terminal
block (5~12VDC)
*RM-R100-TLQ and RM-R100-RB1Q only.
Room Occupancy Monitor
®
Manual
• Suitable to use in restrooms, fitting rooms,
etc. to monitor occupancy
• Indicators can be paired with up to 15
Sensors per channel
• Each sensor can transmit to unlimited
number of indicators
• Service button connections available*

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the ECO-LARM RM-R100-TLQ and is the answer not in the manual?

Questions and answers

Related Manuals for ENFORCER ECO-LARM RM-R100-TLQ

Summary of Contents for ENFORCER ECO-LARM RM-R100-TLQ

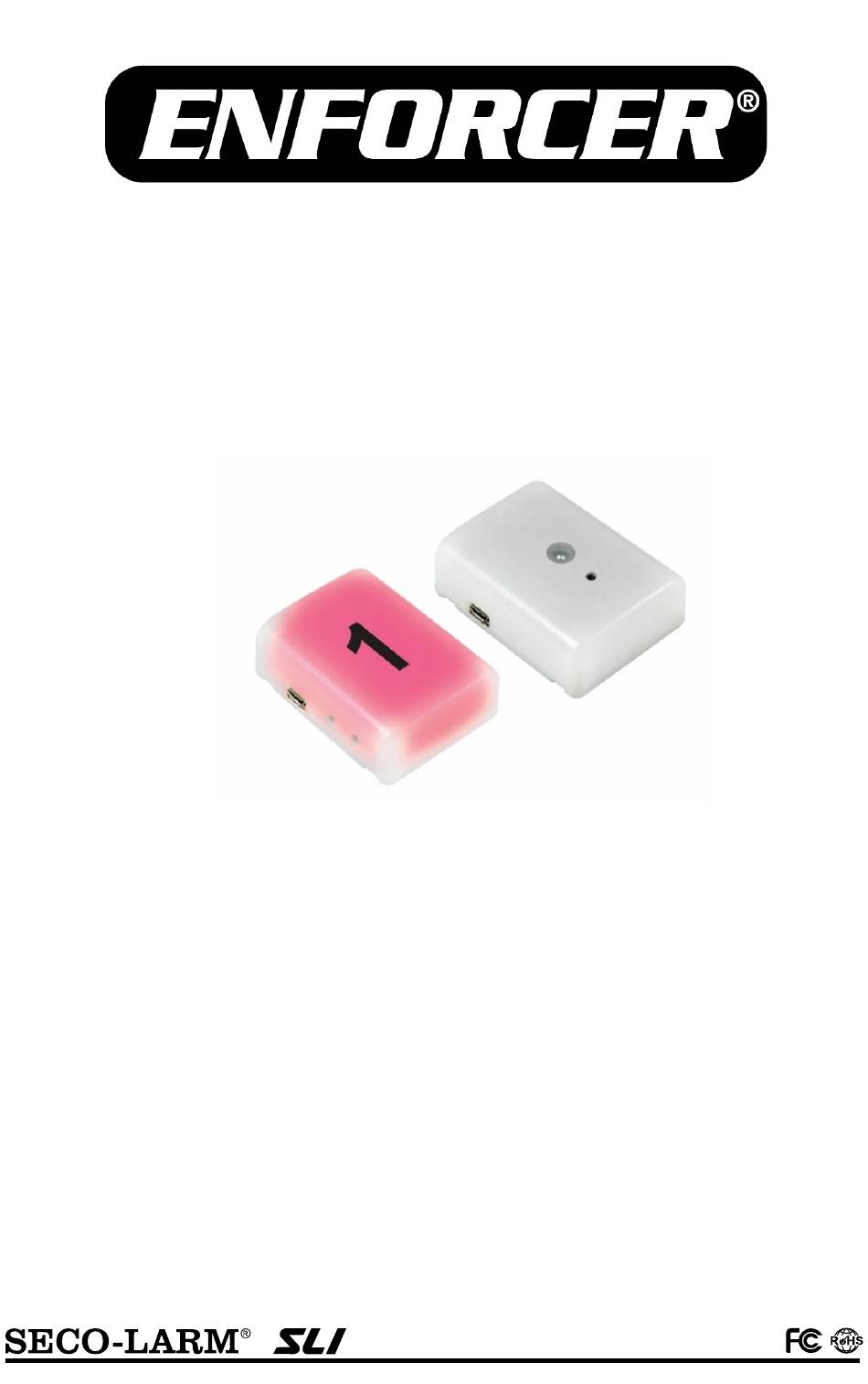

  • Page 1 Room Occupancy Monitor Manual Features: • Programmable to use PIR (movement), • Suitable to use in restrooms, fitting rooms, phototransistor (light), or door sensor input etc. to monitor occupancy (switch) to detect occupancy • Indicators can be paired with up to 15 •...
