HDMI to 3G SDI Converter
-
ID# 975
Operation Manual

Advertisement

loading
Need help?

Need help?

Do you have a question about the 975 and is the answer not in the manual?

Questions and answers

Summary of Contents for Converters.TV 975

  • Page 1 HDMI to 3G SDI Converter ID# 975 Operation Manual...
  • Page 2 Introduction The HDMI to SDI converter allows HDMI signals to be display on SDI display. It is perfectly useful for an high bit rates processing at 2.970Gbit/s which ensure fast signal transmission without signal loss. Further, the external audio allow user to play a different audio source instead of the HDMI audio to be display synchronously without delay on the SDI output.

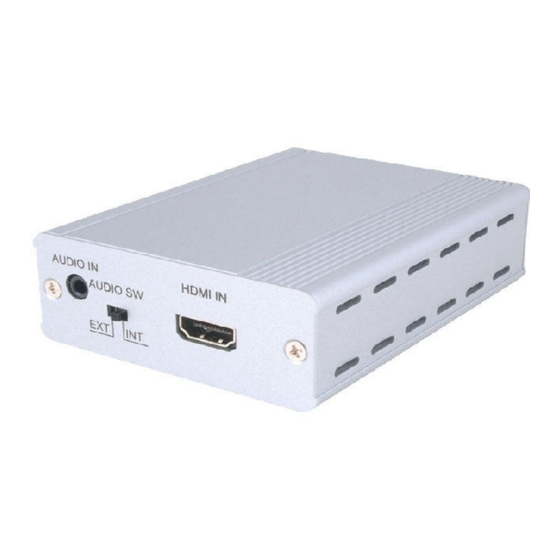

  • Page 3 Operation Controls and Functions Front Panel AUDIO IN This slot is where you connect with audio source equipment such as DVD player with 3.5Ø phone jack for audio signal input. AUDIO SW This switch allows user to choose audio source from EXTernal audio input with 3.5Ø phone jack or INTernal audio input with HDMI cable.
  • Page 4: Specifications

    Specifications Operation Data 2.970 Gbps, 2.970/1.001 Gbps, 1.485Gbps, 1.485/1.001Gbps, and 270Mbps Frequency Bandwidth 225MHz/link (HDMI 1.3) Input Port 1 X HDMI, 1 X 3.5Ø PHONE JACK OUTPUT PORT 1 X BNC (SD-SDI/HD-SDI/3G-SDI) SDI Video Supports SD-SDI-480I, 576I, HD-SDI-720P@50/60,1080I@50/60, 1080P@23.98/24/25/29.97/30 3G-SDI-1080P@50/60 HDMI Cable Distance SDI Cable Distance 3G UP TO 100M...
  • Page 5 Connection...
