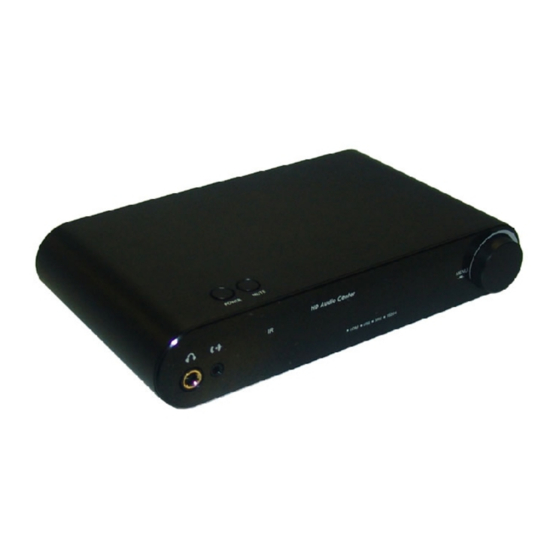

- Page 1 HD Audio Center ID# 930 Operation Manual...
- Page 2 Introduction The HD Audio Center is an excellent device for converting digital and analog audio sources. It allows for simultaneous conversion of a digital or an analog audio input to all digital and analog audio outputs. Featuring a sampling rate converter to 44.1 kHz ~ 192 kHz (up to 24-bit) output, supports LPCM 2CH audio, HDMI, USB Audio 2.0, Optical and Coaxial digital input/output.
- Page 3 Operation Controls and Functions Front Panel 6.3mm Phone Jack: Connect to 6.3mm professional headphone set for user to enjoy the individual professional audio sound. 3.5mm Front In: Connect 3.5mm mini-jack cable to any audio equipment for stereo input audio signal. IR: IR receiver window.
- Page 4 HDMI IN/OUT: Connect to an HDMI source such as a satellite box or DVD Audio player and output to an HDMI HDTV/monitor for display output. USB: Connect to a PC/MAC source for USB audio signal input. COAX OUT/IN: Connect the COAX IN to a coaxial digital audio input source such as set-top box or CD player and the COAX OUT to an amplifier or active speakers with a coaxial cable.
- Page 5 MENU: Press the button to enter into the menu selections then press the up/down buttons to select and press it again to confirm the selection. RETURN: Press the button to return or exit the menu selection. INPUT: Press these hot keys to switch the input sources instantly 1st LAYER 2nd LAYER HDMI In...
- Page 6 1st LAYER 2nd LAYER Fix Level Line Out Set* Volume Level (Headphone/Line Out Setup) Return Reset to Default Return Return Note: This option is for the 6.3mm phone jack output port on the front panel. The 6.3mm port can be used either to headphone or as an line out Specifications Input Ports 1×HDMI, 1×USB, 1×Coaxial,...
- Page 7 Connection...
