  • Page 1 1by 3 DisplayPort Extender Splitter - ID# 987 Operation Manual...
  • Page 2 Introduction For those who want to display large content the 1x3 DisplayPort Extender Splitter is for you. Able to extend an image onto 2 or 3 displays, this device is perfect for multi-tasking, but can also split an image so the same image is repeated on up to three connected displays.

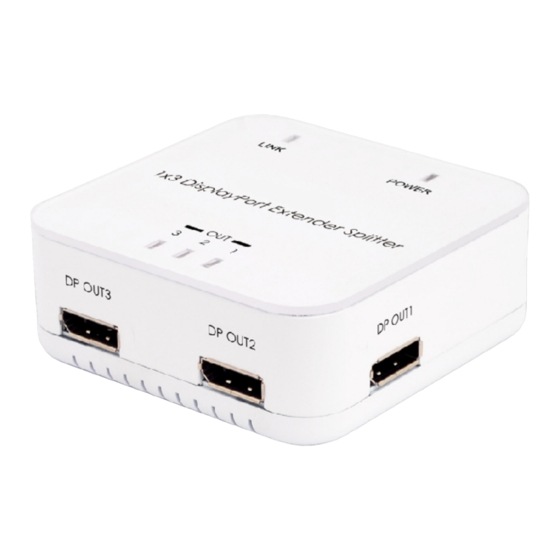

  • Page 3 Operation Controls and Functions Transmitter Front Panel Right Panel ① DP OUT 1~3: Connect these slots with the output displays Display port input port in order to send a signal. Note: It is suggested to use the same type/model of display in order to get the optimal image quality.
  • Page 4 Top Panel ① LINK LED: The green LED will turn on when the input source device is connected. ② POWER LED: The green LED will switch on when the device is powered on. ③ OUT 1~3 LED: The green LED will turn on when the output port is connected with the output display.
  • Page 5 Three Monitors Mode From PC To Monitor Vertical Refresh Rate (Hz) 3840 x 800 1280 x 800 3840 x 1024 1280 x 1024 3072 x 768 1024 x 768 2400 x 600 *1 800 x 600 1920 x 480 *1 640 x 480 4080 x 768 *1 , *2 1360 x 768...
  • Page 6: Connection Diagram

    Connection Diagram...
  • Page 7: Specifications

    Specifications Output Resolution 1920 x 1200 / 1920 x 1024 Input port 1 x DisplayPort Output ports 3 x DisplayPort Power Supply 3.3V / 1.5A DC (US/EU standards, CE/FCC/UL certified) ESD Protection Human body model: ± 8kV (air-gap discharge) ± 4kV (contact discharge) Dimensions(mm) 100 (W) x 70 (D) x 20 (H) Weight(g)
