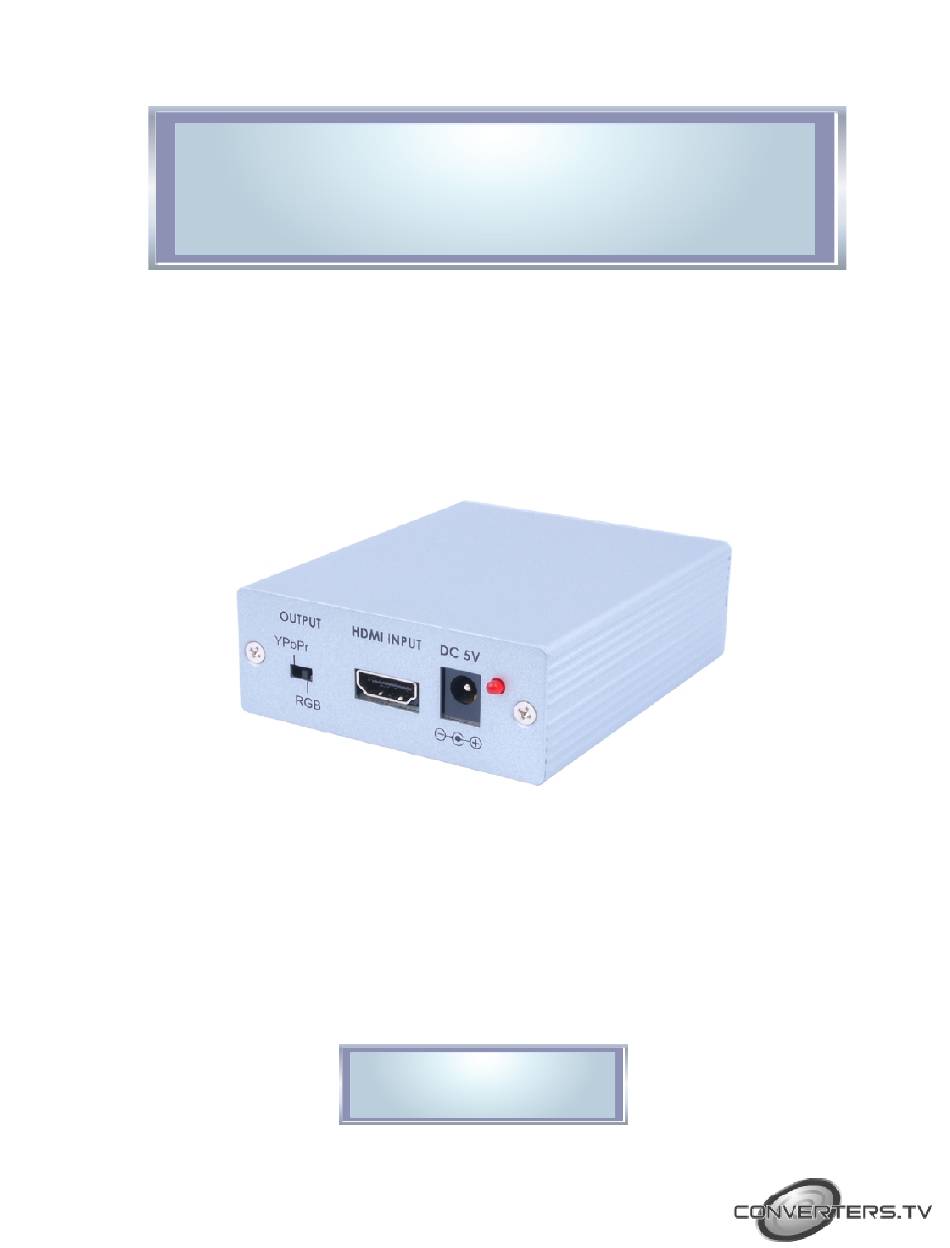

- Page 1 HDMI to PC/Component Converter with Audio Box ID# 900 Operation Manual...
- Page 2 Introduction This converter box is designed to convert Digital High Definition(HD) signal to Analog PC or SD/HD timings. It enables you to convert Digital HDMI sources to any analog PC timing for PC monitor, Projector or TV. Its high bandwidth capability supports a wide range of PC and HDTV resolutions.
- Page 3 Operation Controls and Functions Front Panel ① . YPbPr/RGB switch: Set the switch to RGB when your HDMI source equipment is PC graphic card or other digital RGB source signal. Use HD-15 to HD-15 VGA cable to connect between the unit’s RGB out and RGB input of your PC monitor, or projector. Set the switch to YPbPr when your HDMI source is video source.
-
Page 4: Output Format
HDMI Connector Pin Assignment Pin# Function Assignment Pin# Function Assignment TMDS Data2+ TMDS Data2 Shield TMDS Data2- TMDS Data1+ TMDS Data1 Shield TMDS Data1- TMDS Data0+ TMDS Data0 Shield TMDS Data0- TMDS Clock+ TMDS Clock Shield TMDS Clock- Reserved (N.C. on device) DDC/CEC Ground +5V Power Hot Plug Detect... - Page 5 B. Analog VGA output pin assignment when output switch set to RGB. Part No. Pin No. Description (PC out) Green Blue GND (DDC-RETURN) GND - Red GND - Green DB15HD GND - Blue GND - SYNC DDC-DATA H-SYNC V-SYNC DDC-CLOCK...
- Page 6 C. Analog VGA output pin assignment when output switch set to YPbPr. Part No. Pin No. Description (HD out) GND (DDC-RETURN) GND - Pr GND - Y DB15HD GND - Pb GND - SYNC DDC-DATA H-SYNC V-SYNC DDC-CLOCK...
- Page 7 Input/Output resolution Note: When the TV didn’t support 1080p@24 input, the user needs to disable the 1080p@24 from source equipment, such as Blu-ray player or PS3 etc.). This product does not process HDCP input. When receiving content that has HDCP encryption there will be no video & audio output.
- Page 8 Connection...
-
Page 9: Specifications
Specifications Operation Frequency Up to 162MHz Input port 1 x HDMI Output ports 1 x HD-15 D-SUB (YPbPr or RGBHV) 1 x Analog R/L 3.5mm phone jack Output Signal RGB: 0.7 Vp-p 75ohm H/V: 3 to 5 Vp-p Or Y: 1 Vp-p 75ohm Pb/Pr: 0.7Vp-p 75ohm Input/Output Resolution PC: 640x480 = VGA@60, 72, 75, 85...
