- Page 1 3G-SDI to HDMI Scaler with Audio (L/R + SPDIF) - ID# 901 Operation Manual...
- Page 2 Introduction The SDI to HDMI Scaler with Audio allows SD, HD and 3G-SDI signals to be display on HDMI/SDI displays while ensuring high bit rates of 2.970 Gbps gives you fast signal transmission without signal loss. For professional this means that it is now easier to distribute and extend your SDI signal while giving you the ability to display your work on the existing HDMI displays.

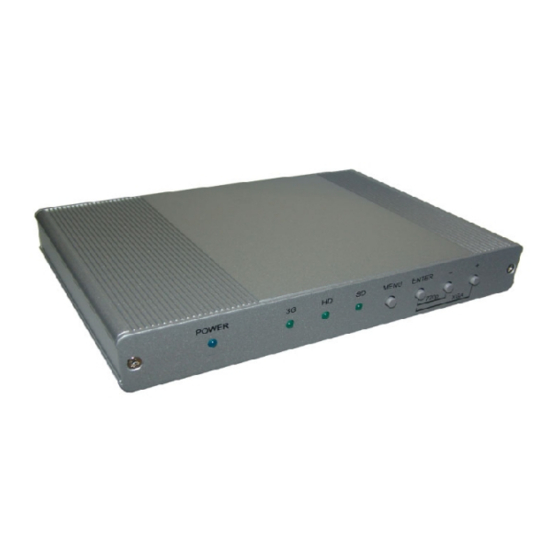

- Page 3 Operation Controls and Functions Front Panel ① POWER LED: This blue LED will illuminate when the device is connected with power supply. ② 3G LED: This green LED illuminate when the input SDI signal is with 3G format. ③ HD LED: This green LED illuminate when the input SDI signal is with HD format. ④...
- Page 4 OSD Menu...
- Page 5 Display • Output Timings: There are total 20 timings available for user’s selection.
- Page 6 Size: Adjust the display’s screen size from Full, Over Scan, Under Scan, • Letter box or Pan scan to fit the different timing’s display and make the viewing become more pleasure. Color Adjust screen color RGB’s Contrast and or Brightness. •...
- Page 7 Factory Reset • Select YES to return to the factory setting. Factory setting on display is 1280 x 720p @ 60Hz with full size screen, Color setting's factory default rate are as the value in the bracket () of the OSD chart and SDI audio is on auto.
-
Page 8: Specifications
Specifications SMPTE Standard 425M Level A & B, 424M, 292M, 259M-C SDI Transmission Rates 2.970 Gbps, 2.970/1.001 Gbps, 1.485Gbps, 1.485/1.001 Gbps, and 270Mbps Frequency Bandwidth 225MHz/link (HDMI 1.3) Input Port 1 x BNC (SD/HD/3G-SDI) Output Port 1 x BNC (SD/HD/3G-SDI), 1 x HDMI, 1 x Coaxial, 2 x RCA Jack Video Output Supports SDI: 480i, 576i... - Page 9 Connection...
