Enwork Quantum Flip Installation Manual

Advertisement

Quick Links

Quantum Flip Table
Installation Guide
TI0092 - Quantum Flip Table Installation Guide – Rev 04.04.25

Advertisement

loading
Need help?

Need help?

Do you have a question about the Quantum Flip and is the answer not in the manual?

Questions and answers

Summary of Contents for Enwork Quantum Flip

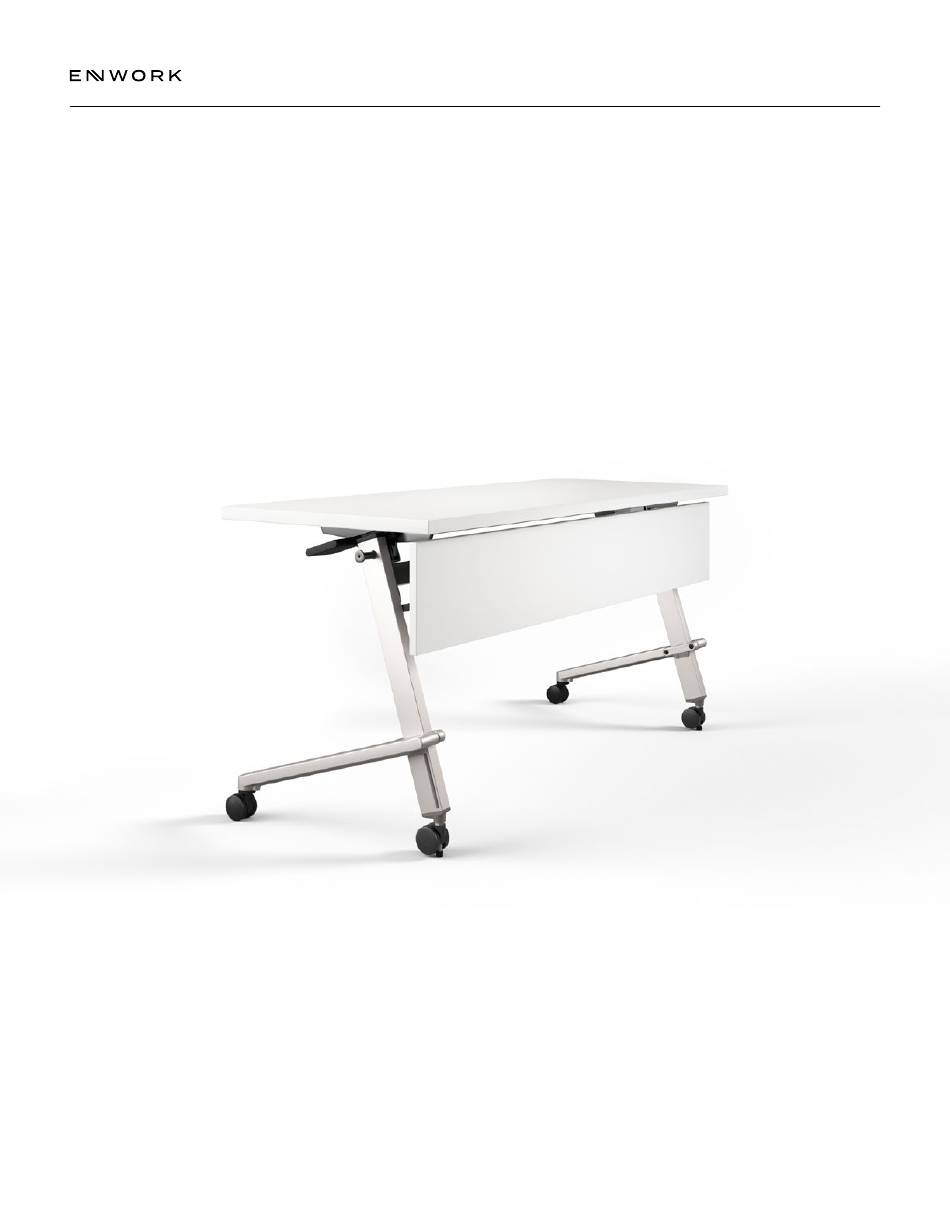

  • Page 1 Quantum Flip Table Installation Guide TI0092 - Quantum Flip Table Installation Guide – Rev 04.04.25...
  • Page 2: Tools And Supplies Required

    TOOLS & SUPPLIES REQUIRED PHILLIPS SCREW DRIVER TI0092 - Quantum Flip Table Installation Guide...
  • Page 3 MODESTY PANEL (X1)* MODESTY PANEL M5 × 10 BUTTON HEAD SCREW [FOR M8 SOCKET SCREW] HARDWARE* WITH WASHER (X2)* *Only included when Modesty Panel is ordered. M5 × 16 BUTTON HEAD SCREW SPACER (X2)* (X2)* TI0092 - Quantum Flip Table Installation Guide...
  • Page 4: Leg Attachment

    Ensure the legs are securely fixed with no movement. If necessary, adjust the height of the rear leg casters to level the table and prevent wobbling on uneven surfaces. CAUTION: Operate the folding mechanism from the side of the table. TI0092 - Quantum Flip Table Installation Guide...
  • Page 5 Attach the linking arms to the table legs by inserting spacers and M5 x 16 screws through the spacer holes and into the corresponding table legs. CAUTION: Operate the folding mechanism from the side of the table. Securely tighten. Spacer M5 ×16 Screw Linking Arm TI0092 - Quantum Flip Table Installation Guide...
  • Page 6 800.815.7251 enwork.com 12900 Christopher Drive Lowell, MI 49331 Specifications subject to change without notice.
