Gilson GX-27X Series Installation Instructions

Installation Instructions
GX-27X System Organizer
Part Number 21050000
This document contains instructions for assembling the
GX-27X System Organizer for use with the GX-271 and
GX-274 systems.

Parts

The GX-27X System Organizer includes the following:
● Right side assembly
● Left side assembly
● Shelves (x2)
● Phillips screws (x24)
A medium-sized Phillips screwdriver is required for this
installation.

Attaching the Shelves

1. Lay the left side assembly down on the floor with
the beveled edge facing the floor and the foot of the
assembly facing the front.
If the color strip faces the right in this
NOTE
position, it is the right side assembly.
2. Take one of the shelves and align the holes on the back
of the shelf with the lower set of holes on the back of
the left side assembly. Insert and slightly finger tighten
the Phillips screws (Figure 2).
Gilson, Inc.
| PO Box 620027 | Middleton, WI 53562-0027 | Tel: 608-836-1551 OR 800-445-7661 | Fax: 608-831-4451
Gilson S.A.S.
| 19, avenue des Entrepreneurs | BP 145, F-95400 Villiers-le-bel, FRANCE
www.gilson.com
| sales@gilson.com | service@gilson.com | training@gilson.com

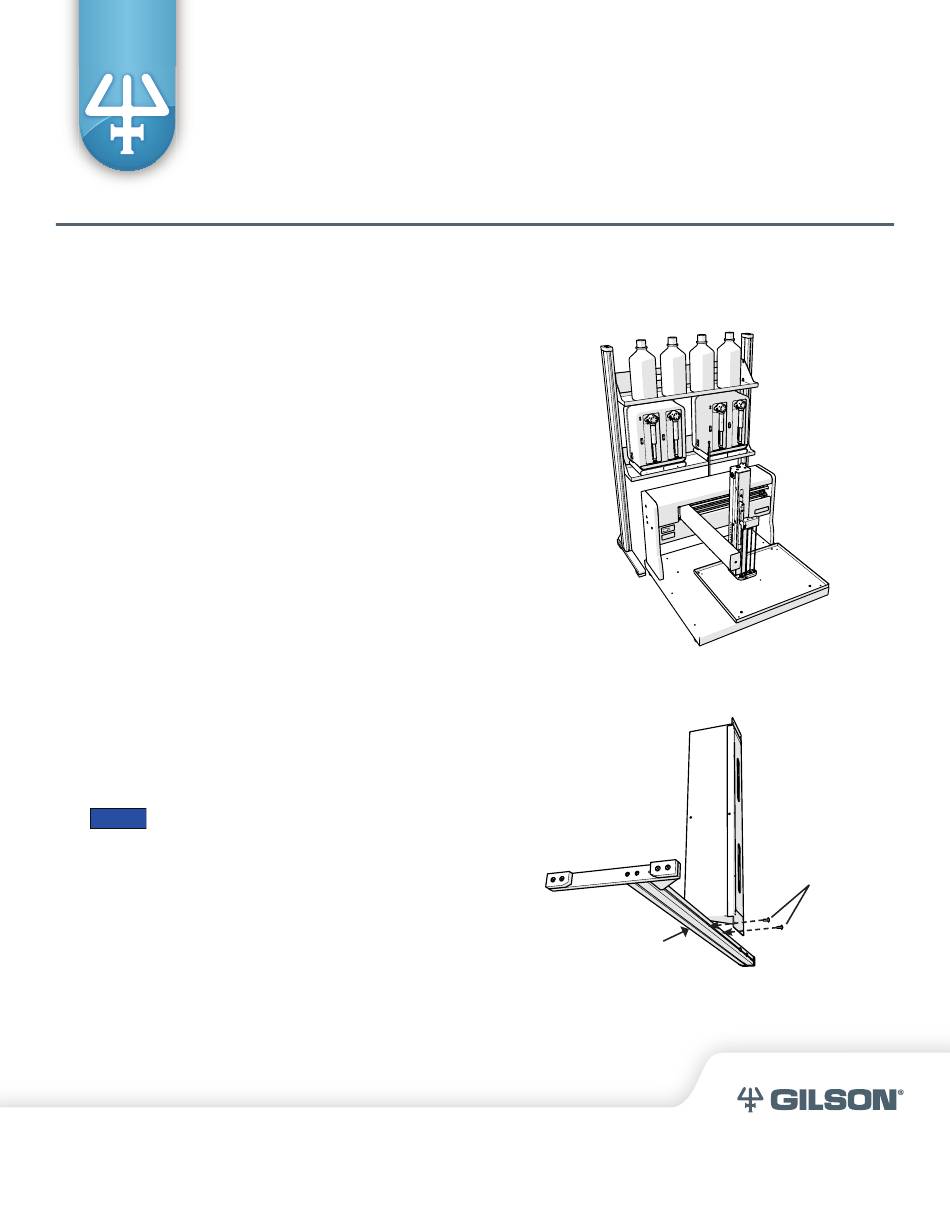

Figure 1: GX-274 System with Organizer
Shelf
Left
Side
Assembly
Beveled
Edge
Figure 2: Installing the Shelf on the Side Assembly (Step 2)
Phillips
Screws
LT319019-03 | Page 1 of 2
