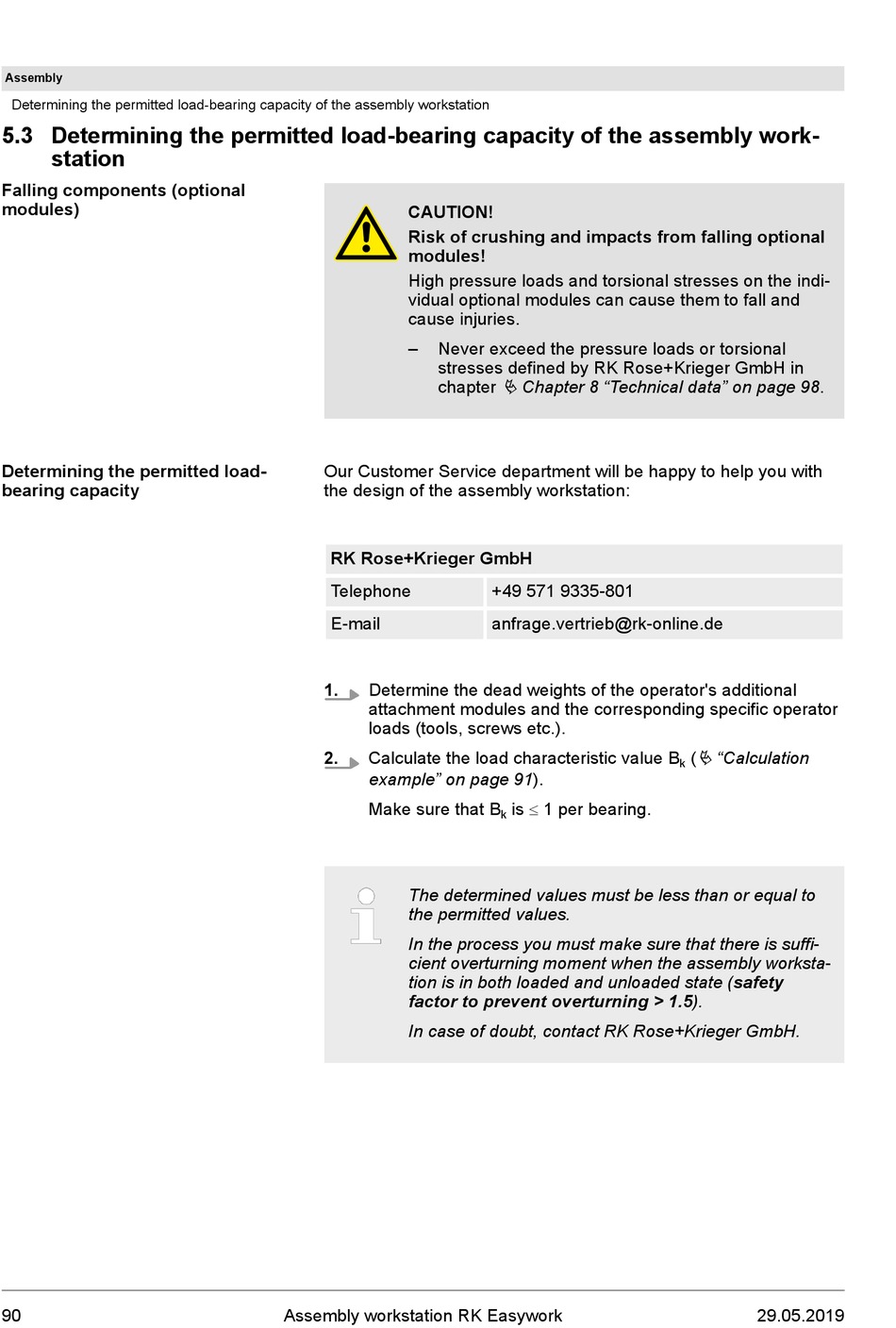

Determining the permitted load-bearing capacity of the assembly workstation

5.3 Determining the permitted load-bearing capacity of the assembly work-
station
Falling components (optional
modules)
Determining the permitted load-
bearing capacity
90
CAUTION!
Risk of crushing and impacts from falling optional
modules!
High pressure loads and torsional stresses on the indi-
vidual optional modules can cause them to fall and
cause injuries.
– Never exceed the pressure loads or torsional
stresses defined by RK Rose+Krieger GmbH in
chapter
Our Customer Service department will be happy to help you with
the design of the assembly workstation:
RK Rose+Krieger GmbH
Telephone
E-mail
1. Determine the dead weights of the operator's additional
attachment modules and the corresponding specific operator
loads (tools, screws etc.).
2. Calculate the load characteristic value B
example" on page 91).
Make sure that B
The determined values must be less than or equal to
the permitted values.
In the process you must make sure that there is suffi-
cient overturning moment when the assembly worksta-
tion is in both loaded and unloaded state (safety
factor to prevent overturning > 1.5).
In case of doubt, contact RK Rose+Krieger GmbH.
Assembly workstation RK Easywork
Ä Chapter 8 "Technical data" on page 98.
+49 571 9335-801
anfrage.vertrieb@rk-online.de
is £ 1 per bearing.
