Mounting rail
29.05.2019

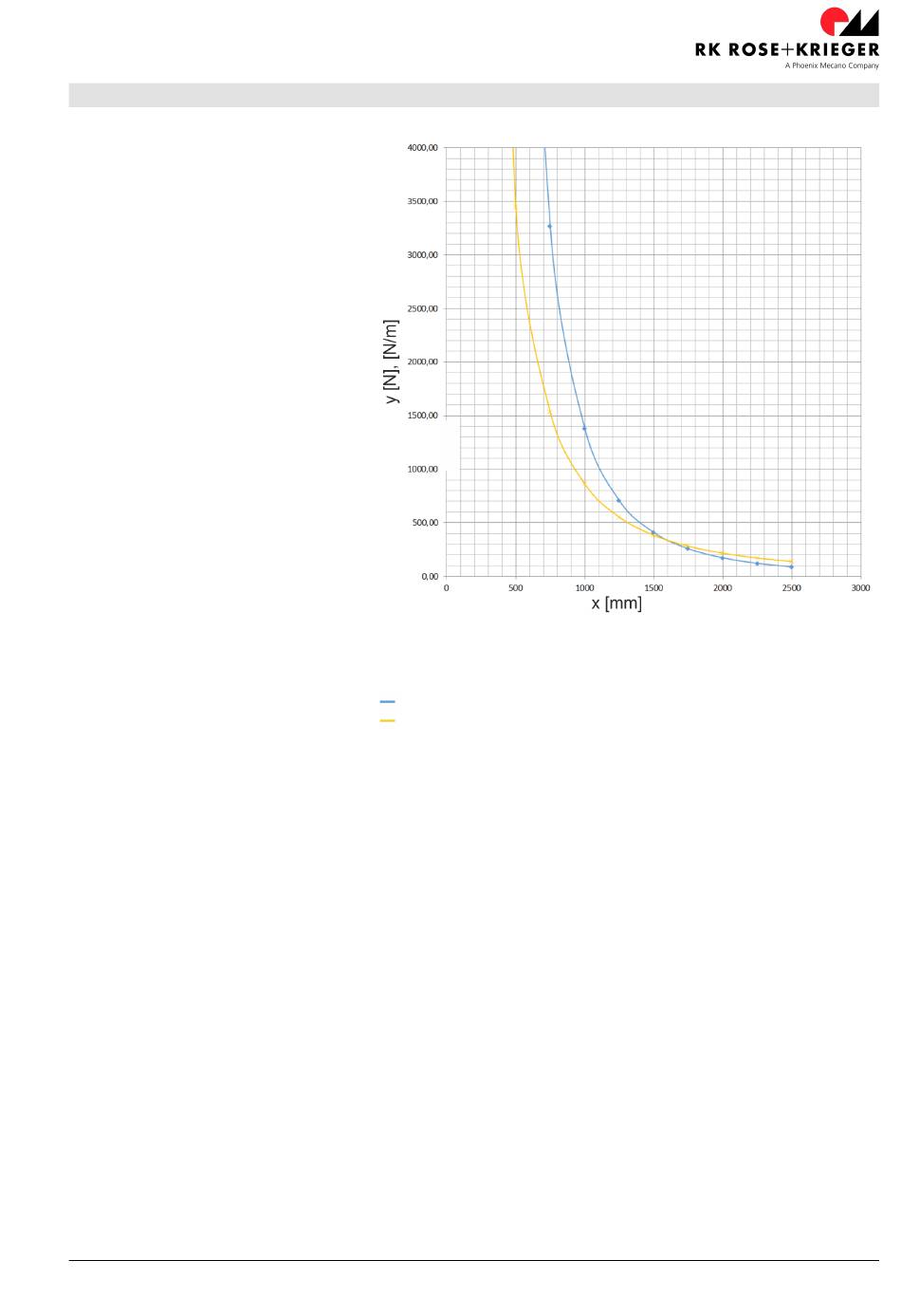

Fig. 32: Concentrated/distributed load dependent on length
x Length L [mm]
y Concentrated load [N], distributed load [N/m]
Permitted distributed load at max. deflection of L/300
Permitted concentrated load (in the centre) at max. deflection
of L/300
Assembly workstation RK Easywork
Technical data
Load diagrams
