Technical data

Rating plate

Runner profile
8.4 Rating plate

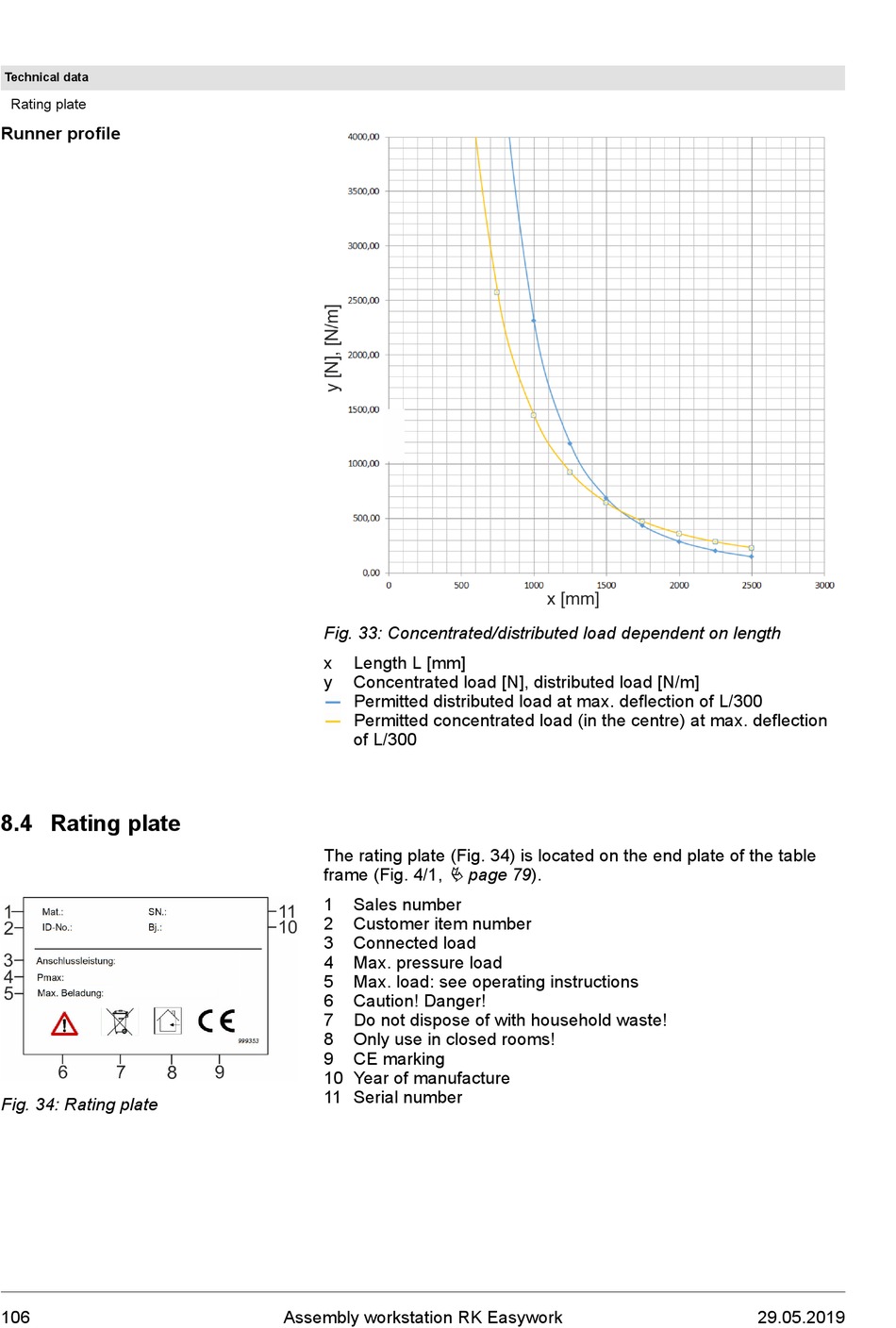

Fig. 34: Rating plate
106
Fig. 33: Concentrated/distributed load dependent on length
x Length L [mm]
y Concentrated load [N], distributed load [N/m]
Permitted distributed load at max. deflection of L/300
Permitted concentrated load (in the centre) at max. deflection
of L/300
The rating plate (Fig. 34) is located on the end plate of the table
frame (Fig. 4/1, Ä page 79).
1 Sales number
2 Customer item number
3 Connected load
4 Max. pressure load
5 Max. load: see operating instructions
6 Caution! Danger!
7 Do not dispose of with household waste!
8 Only use in closed rooms!
9 CE marking
10 Year of manufacture
11 Serial number
