Set-up and function
Optional modules > Pivoting material rail

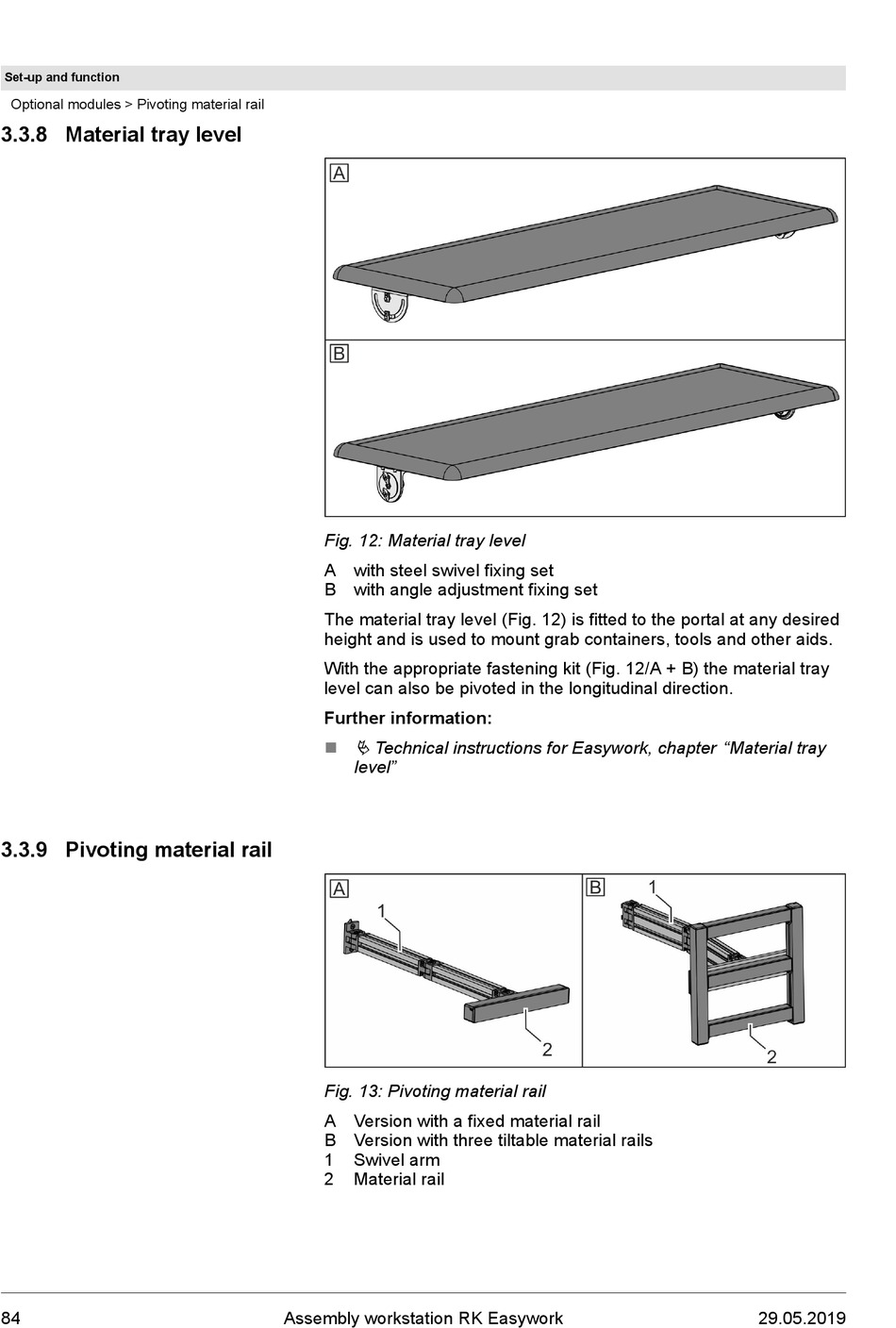

3.3.8 Material tray level

3.3.9 Pivoting material rail

84
Fig. 12: Material tray level
A with steel swivel fixing set
B with angle adjustment fixing set
The material tray level (Fig. 12) is fitted to the portal at any desired
height and is used to mount grab containers, tools and other aids.
With the appropriate fastening kit (Fig. 12/A + B) the material tray
level can also be pivoted in the longitudinal direction.
Further information:
n Ä Technical instructions for Easywork, chapter "Material tray
level"
Fig. 13: Pivoting material rail
A Version with a fixed material rail
B Version with three tiltable material rails
1 Swivel arm
2 Material rail
Assembly workstation RK Easywork 29.05.2019
