Technical data

Load diagrams

8.3 Load diagrams
Material tray level
104

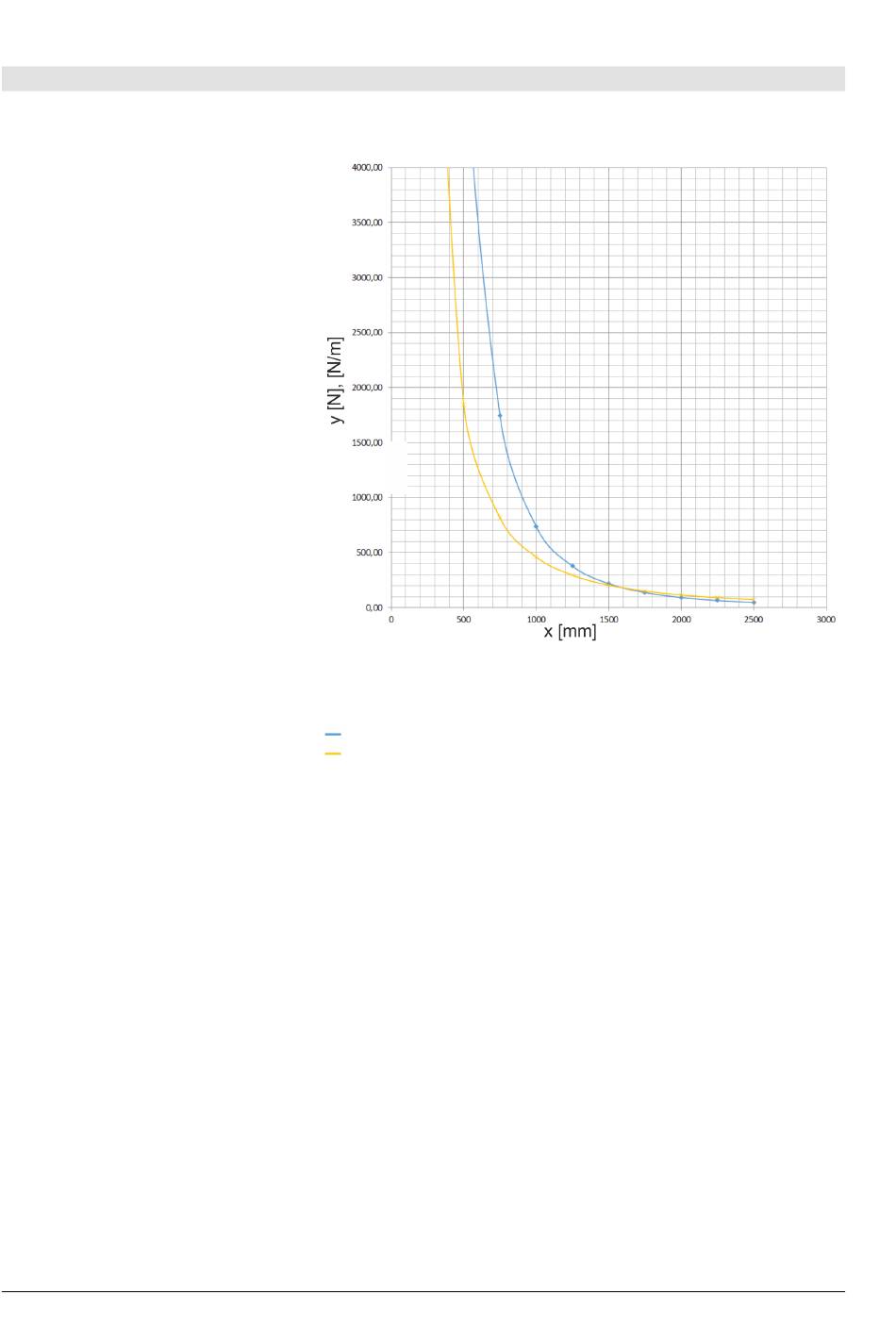

Fig. 31: Concentrated/distributed load dependent on length
x Length L [mm]
y Concentrated load [N], distributed load [N/m]
Permitted distributed load at max. deflection of L/300
Permitted concentrated load (in the centre) at max. deflection
of L/300
