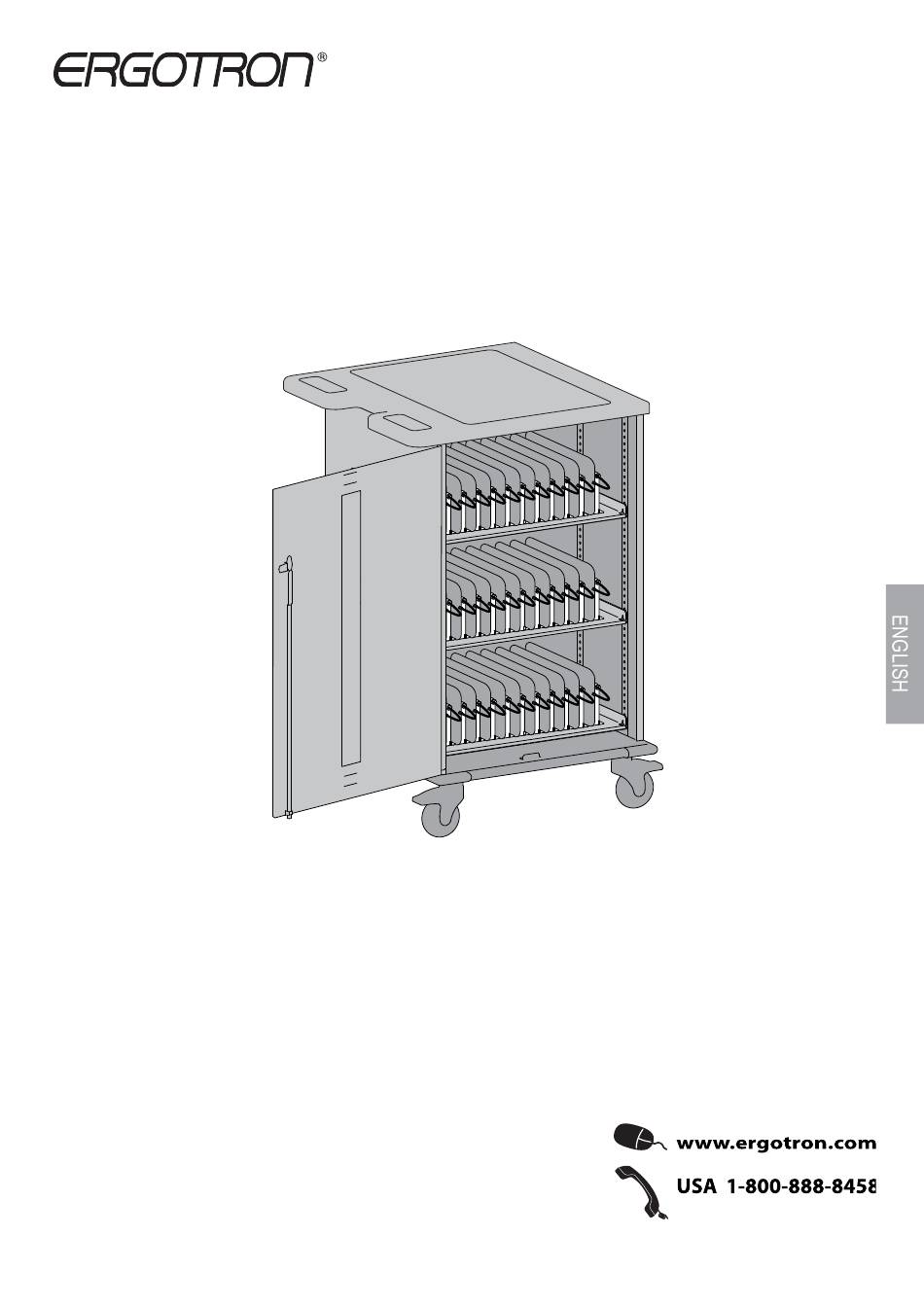

User's Guide

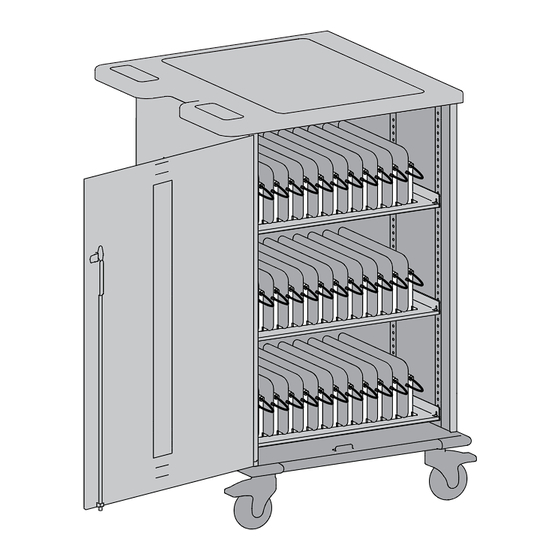

YES BASIC Charging Cart
Built with Anthro-DNA™
Model Part #YESBASGMPW4
Ergotron's Yes Cart for Mini-laptops is designed to automatically charge and store 1-36 tablet, smart phone,
and mini-laptop devices safely and effi ciently. Adjustable shelves customize shelf height in 1" increments to
fi t a range of device heights; adjustable bays slide left to right to fi t even the largest cases.
Please review this manual before installing your equipment to learn how to use the cart safely.
AC input: 120V~ 60 Hz. Max Amps: 10A.
For the latest User Installation Guide please visit: www.ergotron.com
888-24-362-G-00 rev. B • 09/17
1 of 13

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the YES BASIC YESBASGMPW4 and is the answer not in the manual?

Questions and answers

Related Manuals for Ergotron YES BASIC YESBASGMPW4

Summary of Contents for Ergotron YES BASIC YESBASGMPW4

  • Page 1 Built with Anthro-DNA™ Model Part #YESBASGMPW4 Ergotron's Yes Cart for Mini-laptops is designed to automatically charge and store 1-36 tablet, smart phone, and mini-laptop devices safely and effi ciently. Adjustable shelves customize shelf height in 1" increments to fi t a range of device heights; adjustable bays slide left to right to fi t even the largest cases.

  • Page 2: Hazard Symbols

    Inadequate repair can create signifi cant hazards to users and is not covered by the warranty. Repairs should always be performed by an Ergotron service representative or a qualifi ed electrician.

  • Page 3: Equipment Electrical Safety

    Equipment Electrical Safety There are specifi c risks associated with the use of equipment having power cables. You must be aware of, and avoid these risks when the Cart is located in close proximity to children. WARNING: Failure to observe the following Electrical Safety notices can result in fi re or death by electric shock. Electrical: Electrical cables can be hazardous.

  • Page 4: Features And Specifications

    Features & Specifi cations Front Locking Door Latch with Padlock Bracket Cord Wrap with Detachable Power Cord Ergonomic Handle 4” Total-Lock Casters Control Box and Circuit Breakers Removable Device Dividers with Cable Channels and Width Adjustment Shelves with Height Adjustment Center Panel with Power Outlets and Cord pass through openings Power Adapter Storage Panels...
  • Page 5 Unlock and open front door. a. Unlock with Key. b. Lift handle up. c. Rotate handle clockwise. d. Open door. Remove back panel. 888-24-362-G-00 rev. B • 09/17 5 of 13...
  • Page 6 a. Route device cables into dividers. b. Route adapters through cart to back of cart and plug into outlets. a. Insert device into divider. b. Plug power cable into device. 6 of 13 888-24-362-G-00 rev. B • 09/17...
  • Page 7 a. Bundle cables and attach bundle to panel with cable tie. The bundles for the bottom set of outlets are stored on bottom shelf. b. Replace back panel. Plug power cord into base of cart and into wall outlet. 888-24-362-G-00 rev. B • 09/17 7 of 13...
  • Page 8 How to Remove Dividers How to Replace Dividers 8 of 13 888-24-362-G-00 rev. B • 09/17...
  • Page 9 How to Adjust Shelf Height 888-24-362-G-00 rev. B • 09/17 9 of 13...

  • Page 10: Specifications

    Specifi cations Power System 120V~ 60Hz. Max Amps: 10A Physical Dimensions Height: 106 cm (41.7-inches) Length: 73 cm (28.7-inches) Width: 64 cm (25-inches) Weight (without Mobile Devices) 80 kg (176 lb) Weight Capacity: Top Surface 11.3 kg (25 lb) Shelves (Top, Middle, Bottom) ea. 27.2 kg (60 lb) Adapter Shelves (ea.) 5.4 kg (12 lb)

  • Page 11: Troubleshooting Guide

    My power cord/plug is damaged. Are they under warranty? For warranty information visit: www.ergotron.com/warranty When I plug in the unit it trips the circuit breaker in my building. Help! The carts are designed to run on a 15 amp circuit. If you have other items plugged into the same circuit you may be overloading it.

  • Page 12: Cleaning And Maintenance

    Ergotron-approved documentation (i.e. installation instructions). Only Ergotron, Inc. or an Ergotron-certifi ed entity may adjust, service or replace Cart components. If any component on the Cart is missing or damaged, the Cart must not be used. Contact Ergotron immediately to request a replacement part.

  • Page 13: Regulatory Information

    FCC Caution: Changes or Modifi cations not expressly approved by Ergotron could void the user’s authority to operate the equipment. This Class A digital apparatus complies with Canadian CAN ICES-3(A)/NMB-3(A). / Cet appareil numérique de la classe A est conforme à la norme CAN ICES-3(A)/NMB-3(A) du Canada.
