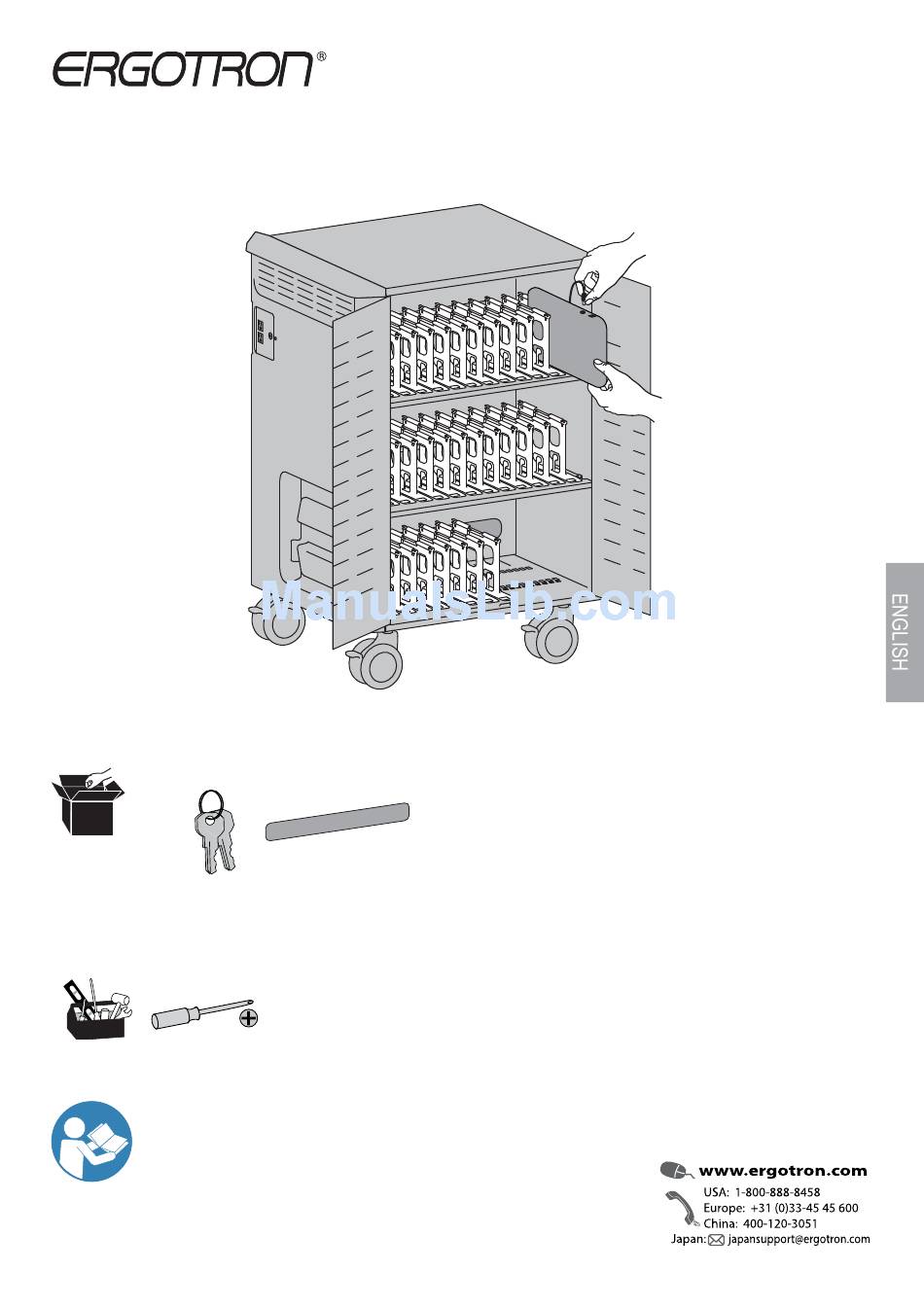

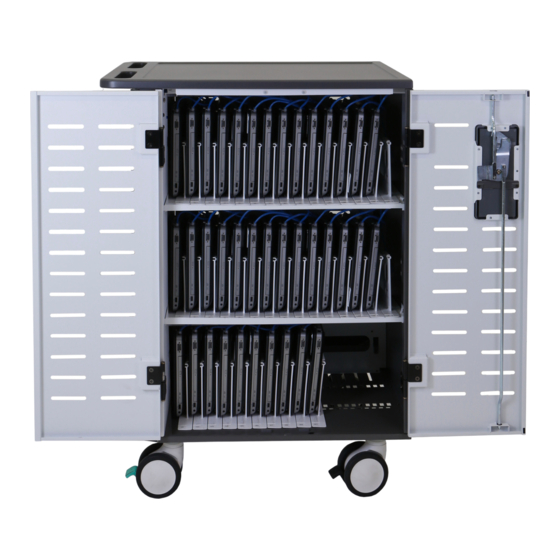

- Page 1 User's Guide Zip40 Charging Cart Includes PowerShuttle™ Technology Components Tools Needed For the latest User Installation Guide please visit: www.ergotron.com User's Guide - English Guía del usuario - Español Manuel de l’utilisateur - Français Gebruikersgids - Deutsch Benutzerhandbuch - Nederlands Guida per l’utente - Italiano...
-
Page 2: Moving Parts
Hazard Symbols Symbol Signal Word Level of Hazard Review A NOTE indicates important information that helps you NOTE make better use of this product. These symbols alert users of a safety condi- tion that demands attention. All users should A CAUTION indicates either potential damage to be able to recognize and understand the CAUTION hardware or loss of data and tells you how to avoid the... -
Page 3: Features And Specifications
Features & Specifi cations OPTIONAL Four 12V continuous operating fans External auxiliary outlet 2 receptacles – US, JP 1 receptacle – EU, UK, AU, CN Power Button Lock not included Cable wrap A < 25 lbs. (11.3 kg) B < 76.5 lbs. (34.7 kg) C <... - Page 4 Open doors. 4 of 17 888-24-326-G-02 rev. E • 08/18...
- Page 5 Choose confi guration for number of devices. Cart is already confi gured for this, please skip to page 9. Slot Size: 1.1" (27.9 mm) Dividers and Ethernet cables will need to be reconfi gured for this set up, please see instructions on pages 6-8. Slot Size: 1.4"...
- Page 6 To confi gure for 30 devices, remove dividers. i. Pull lever towards you. ii. With lever pulled, slide divider towards you. iii. Lift up and off. To confi gure for 30 devices, reattach dividers, 10 per shelf. i. Insert tabs on bottom of divider into designated holes on shelf. ii.
- Page 7 Attach spacers if your devices are < 9" (229 mm). 888-24-326-G-02 rev. E • 08/18 7 of 17...
- Page 8 Remove back panel. Plug in and route power cables. There are different instructions for each type of power cable. Follow the instructions that match your style power cable. a. Plug in the power cables for the top shelf. Use the top row of outlets, and for the 40 device confi...
- Page 9 d. Plug in the power cables for the Middle shelf. Use the entire third outlet row, and for the 40 device confi guration, the remaining outlets on the second row. Store the power cables from the second outlet row in the top basket and the power cables from the third row in the bottom basket. e.
- Page 10 Remove the baskets designed to hold the power supplies that are not present with this type of power cable. a. Lift basket up to unlock tab. b. Pull basket out. c. Lift bottom basket up to unlock tab then pull out. d.
- Page 11 Attach back panel. Optional Wireless Access Point (WAP) (not included). Unplug power cable from cart and remove side cover. WARNING WARNING: MOVING PARTS CAN CRUSH AND CUT. Unplug power cord. DO NOT place MOVING PARTS CAN CRUSH AND CUT hands on or near fans. Placing hands on or near fans may cause equipment damage and/or Unplug power cord.
- Page 12 Access door to unplug WAP. Attach WAP with velcro strap. Plug WAP into Auxiliary outlet. Attach side cover and plug power cable back into cart. NOTE: Route WAP Ethernet cable through side cover access door. 12 of 17 888-24-326-G-02 rev. E • 08/18...
- Page 13 Plug in and insert devices. Plug in power cable and turn cart power on. 888-24-326-G-02 rev. E • 08/18 13 of 17...
-
Page 14: Cleaning And Maintenance
Electrical: Do not use fl ammable cleaners on Cart surfaces. CAUTION: Adjustment, Service, Replacement - DO NOT attempt to adjust, service or replace any part of the Cart unless directed to do so through Ergotron-approved documentation (i.e. installation instructions). Only Ergotron, Inc. or an Ergotron-certifi ed entity may adjust, service or replace Cart components. If any component on the Cart is missing or damaged, the Cart must not be used. -
Page 15: Safe Use Recommendations
Safe Use Recommendations There are specifi c risks associated with the use of Cart when moving or stationary (for charging or storage). You must be aware of, and avoid these risks when the Cart is located in close proximity to children. WARNING: Failure to observe the following Cart Use Safety notices may result in serious personal injury or equipment damage. -
Page 16: Specifications
2) This device must accept any interference received, including interference that may cause undesired operation. CAN ICES3(A)/NMB-3(A). Changes or modifi cations not expressly approved by the Ergotron could void the user's authority to operate the equipment. Intended for institutional use. - Page 17 For Warranty visit: www.ergotron.com/warranty For Service visit: www.ergotron.com For local customer care phone numbers visit: http://contact.ergotron.com NOTE: When contacting customer service, reference the serial number. © 2015 Ergotron, Inc. All rights reserved. 888-24-326-G-02 rev. E • 08/18 17 of 17...
