Ergotron LiFeKinnex FBC-1116 User Manual

4-bay charger

Advertisement

Quick Links

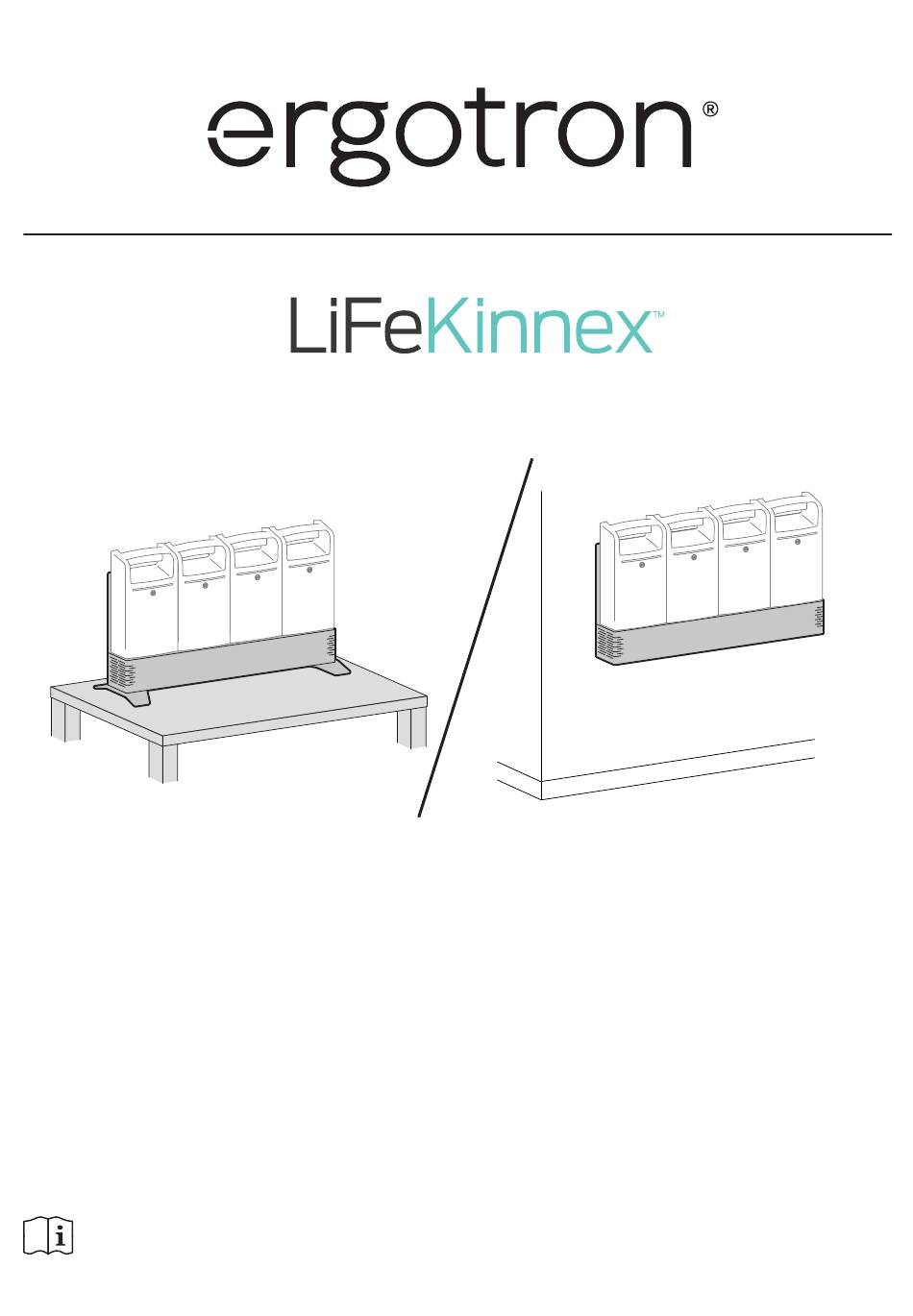

Desk Top
Please review this manual before installing your equipment to learn how to use this product safely.
The LiFeKinnex Charger is designed to charge up to 4 LiFeKinnex Batteries simultaneously. (Battery Model FBP-1164, Part Number 916-333-00)
The charger can be placed on a desk or mounted fl ush on the wall.
This product is certifi ed according to IEC/EN 60601-1, as class I equipment.
AC input: 100-240V~ 50/60-Hz. Max amps: 4.8 - 2.1A.
Manufactured for Ergotron by Green Cubes Technology www.greencubestech.com
Patents Ergotron.com/patents
Batteries Sold Separately.
For the latest User Installation Guide please visit: www.ergotron.com
English, Español, Français, Deutsch, Nederlands, Italiano, Svenska, 日本語, 汉语
www.ergotron.com |
USA: 1-800-888-8458
888-83-081-G-00 rev. B • 03/19
4-Bay Charger
|
Europe: +31 (0)33-45 45 600
Wall Mounted
|
|
China: 400-120-3051
Japan: japansupport@ergotron.com
User's Guide
English
1 of 18

Advertisement

loading
Need help?

Need help?

Do you have a question about the LiFeKinnex FBC-1116 and is the answer not in the manual?

Questions and answers

Summary of Contents for Ergotron LiFeKinnex FBC-1116

  • Page 1 AC input: 100-240V~ 50/60-Hz. Max amps: 4.8 - 2.1A. Manufactured for Ergotron by Green Cubes Technology www.greencubestech.com Patents Ergotron.com/patents Batteries Sold Separately. For the latest User Installation Guide please visit: www.ergotron.com English, Español, Français, Deutsch, Nederlands, Italiano, Svenska, 日本語, 汉语 www.ergotron.com | USA: 1-800-888-8458...
  • Page 2: Equipment Electrical Safety

    Ensure the product is connected to an outlet having the same confi guration as the plug. No adapter should be used with this product. Ergotron does not accept any liability for damage if the unit is misused, incorrectly operated or inadequately repaired. Under these circumstances the warranty will be void.
  • Page 3 Safety Do not attempt to connect the charger in serial or parallel with any other charger. This system was not designed to serve this purpose. This Charger shall be installed by qualifi ed personnel only. The system shall be always installed in the vertical direction as shown in the picture on cover page. WARNING: DO NOT charge battery with any other charger.
  • Page 4: Features And Specifications

    Certifi cation: CAN ICES3(A)/NMB-3(A). UL 60601-1 Safety of Medical Electrical Equipment Changes or modifi cations not expressly approved by the Ergotron could void CAN/CSA C22.2 No. 601.1 the user's authority to operate the equipment. IEC 60601-1 Intended for institutional use.
  • Page 5 Components M4 x 10mm Screw Caps Cable Clip Foot Screw M4 x 8mm Charger Power Cord Screw Concrete Wall Anchor M6 x 60mm #12-11 x 2 " Screw Drywall Anchor Battery Sold Separately. Lithium Iron Phosphate 245Wh, 916-333-00 Desk Top Tools Needed Wall Mounted Tools Needed...
  • Page 6: Wall Mounted

    Desk Top Wall Mounted M4 x 10mm M4 x 8mm Dock Batteries on Charging Station and plug Charging Station into wall outlet. (Batteries Sold Separately.) Batteries use magnets to attach to Charging Station. To Remove Battery, squeeze handle and pull off . 6 of 18 888-83-081-G-00 rev.
  • Page 7 Wall Mounted 25" (635 mm) 16" (406.4 mm) 5.29" (134.2 mm) 8.5" (216 mm) 12" (305 mm) 3.8" (95 mm) HOLLOW WALL 1/2" - 5/8" (13-16mm) CONCRETE WOOD 7 of 18 888-83-081-G-00 rev. B • 03/19...
  • Page 8: Hollow Wall

    Wall Mounted HOLLOW WALL 1/2" - 5/8" (13-16mm) Ø 7/16" (11 mm) 34"- 42" (864- 1067mm) 8 of 18 888-83-081-G-00 rev. B • 03/19...
  • Page 9 Wall Mounted HOLLOW WALL 1/2" - 5/8" (13-16mm) Remove the bottom two screws from Tighten wall anchor by screwing in until you anchors. feel some good resistance. Loosen the top two screws just enough to hang the charger on. Skip to Page 14 to continue installation. 9 of 18 888-83-081-G-00 rev.
  • Page 10 Wall Mounted CONCRETE Ø 1/4" (6.5 mm) 34"- 42" (864- 1067mm) 10 of 18 888-83-081-G-00 rev. B • 03/19...
  • Page 11 Wall Mounted CONCRETE #12-11 x 2 " Skip to Page 14 to continue installation. 11 of 18 888-83-081-G-00 rev. B • 03/19...
  • Page 12 Wall Mounted WOOD Stud Finder 34"- 42" (864- 1067mm) Ø 5/32" (4 mm) 12 of 18 888-83-081-G-00 rev. B • 03/19...
  • Page 13 Wall Mounted WOOD #12-11 x 2 " 13 of 18 888-83-081-G-00 rev. B • 03/19...
  • Page 14 Wall Mounted M4 x 8mm HOLLOW WALL M6 x 60mm #12-11 x 2 " CONCRETE WOOD 14 of 18 888-83-081-G-00 rev. B • 03/19...
  • Page 15 Dock Batteries on Charging Station and plug Charging Station into wall outlet. (Batteries Sold Separately.) Batteries use magnets to attach to Charging Station. To Remove Battery, squeeze handle and pull off . Instructions on connecting device to Wi-Fi network can be found at www.ergotron.com/lifekinnex 15 of 18 888-83-081-G-00 rev. B • 03/19...
  • Page 16 SERVICE AND MAINTENANCE The Charger shall be installed and repaired by qualifi ed personnel only. The cleaning and preventive inspection should be performed by individuals with previous training. Prior to cleaning or storing the Charger for extended periods, the system should be powered off . To do this, unplug the AC power source and remove all batteries.
  • Page 17 ERGOTRON ELECTROMAGNETIC GUIDANCE AND MANUFACTURER’S DECLARATION Guidance and Manufacturer’s Declaration – Electromagnetic Emissions The Power Module is intended for use in the electromagnetic environment specifi ed below. The customer or the user of the Power Module should assure that it is used in such an environment.
  • Page 18 | USA: 1-800-888-8458 Europe: +31 (0)33-45 45 600 China: 400-120-3051 Japan: japansupport@ergotron.com © 2018 Ergotron, Inc. All rights reserved. Manufactured for Ergotron by Green Cubes Technology www.greencubestech.com. LiFeKinnex is a registered trademark of Ergotron, Inc. ™ 18 of 18...
