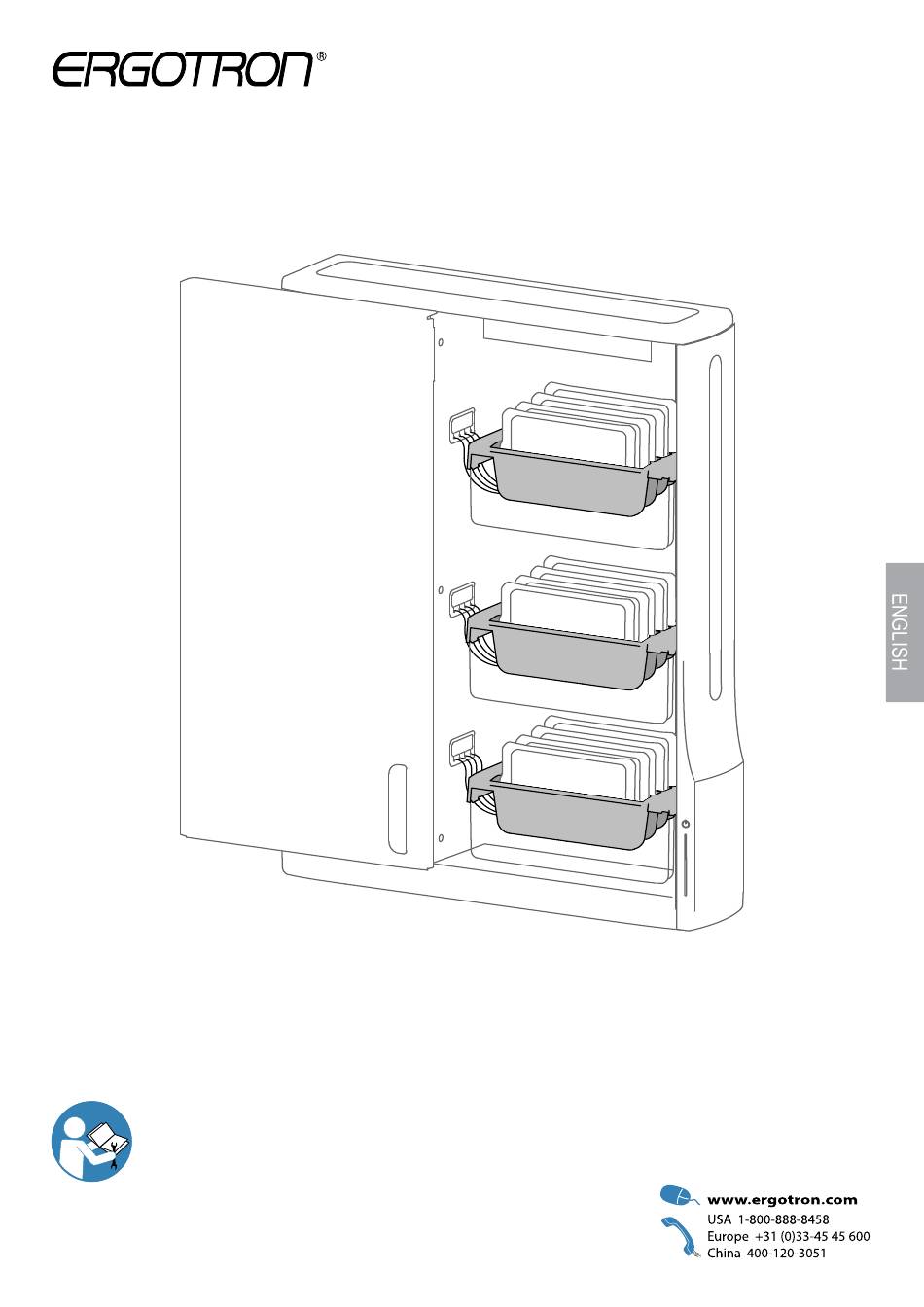

Zip12 Wall Cabinet Easy Charging Kit
User's Guide
for Samsung Galaxy Tab Active 8.0"
1 of 8
Advertisement
Subscribe to Our Youtube Channel
Related Manuals for Ergotron Zip12
Summary of Contents for Ergotron Zip12
- Page 1 User's Guide Zip12 Wall Cabinet Easy Charging Kit for Samsung Galaxy Tab Active 8.0" For the latest User Installation Guide please visit: www.ergotron.com User's Guide - English Guía del usuario - Español Manuel de l’utilisateur - Français Gebruikersgids - Deutsch Benutzerhandbuch - Nederlands Guida per l’utente - Italiano...
-
Page 2: Tools Needed
Components USB wall chargers NOT included. Use the USB wall chargers that come with your Samsung Galaxy Tab Active 8.0" . Tools Needed NOTES: 1. Only for use with Zip 12 Charging Wall Cabinet. 2. Product is designed to work best with Samsung provided case installed. 2 of 8 888-97-394-G-00 rev. - Page 3 a. Remove two screws on left side. Save screws for reattaching cover. b. Unlock door by turning key 180° clockwise, then turning door knob 180° clockwise. a. Slide door to the left and remove these 3 screws. Save screws for reattaching cover. b.
- Page 4 Remove snap clips from tablet tray edges. Save for future use. Not needed with Easy Charge Kit. Place Easy Charge tray into tablet tray with the curved side towards the outer wall and cables on the left side. Press into place and listen for snaps to engage.
- Page 5 Pull USB cables through outer wall. Make sure cables are positioned one per slot and attach to USB wall chargers. Plug in USB wall chargers. Face USB jacks towards each other. 5 of 8 888-97-394-G-00 rev. C • 08/15...
- Page 6 Tie up excess cable with velcro cable ties. NOTE: Keep cables away from power system components that might get hot during operation. Insert Samsung Galaxy Active Tab 8.0" into charging tray, screen facing outwards, pins on bottom. 6 of 8 888-97-394-G-00 rev.
- Page 7 a. Attach left cover with 2 screws saved from removal of cover. b. Open door and attach 3 inside screws saved from removal of left cover a. Close door. b. Lock door by turning key 180° counterclockwise and turning knob 180° counterclockwise. 7 of 8 888-97-394-G-00 rev.
- Page 8 • 15 to 20 minutes every 2 hours. For Warranty visit: www.ergotron.com/warranty For Service visit: www.ergotron.com For local customer care phone numbers visit: http://contact.ergotron.com NOTE: When contacting customer service, reference the serial number. © 2015 Ergotron, Inc. All rights reserved.
