Ergotron YES 40 User Manual

Charging cart
Hide thumbs

Advertisement

Quick Links

Download this manual
Components
A
4x
1
This cart is designed to automatically charge and store 1-40 tablet, smart phone, and hand
held devices safely and effi ciently. Adjustable shelves customize shelf height in
2/3" (1.7 cm) increment to fi t a range of device heights; adjustable bays slide left to right to
fi t even the largest cases.
Please review this manual before installing your equipment to learn how to use the cart
safely.The cart is listed to UL 60950-1 Information Technology Equipment safety standard,
and UL 62368-1 Audio/Video Information and Communication Technology Equipment.
AC input: 120V~ 60-Hz. Max amps: 12A.
For the latest User Installation Guide please visit:
www.ergotron.com |
USA: 1-800-888-8458
888-83-085-G-00 rev. A • 02/19

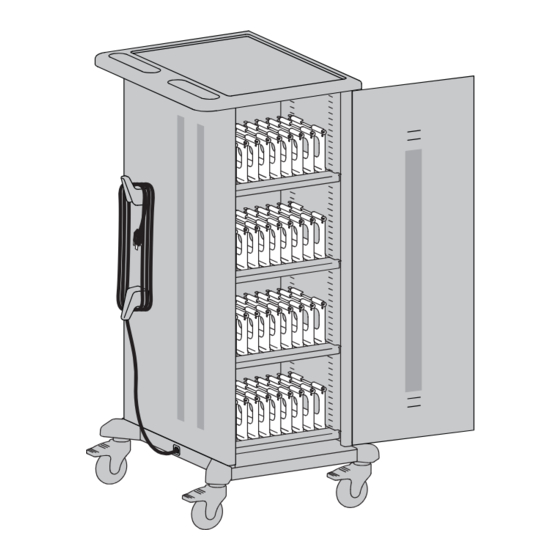

YES 40 Charging Cart
For Tablets
Includes PowerShuttle
Technology
™
B
1x
1x
4mm
C

Table of Contents

Safety .................................... 2-3
Set up .................................... 5-7
How to Access Grommet
Mount Hole ...............................10
Specifi cations ........................... 11
Troubleshooting ..................... 12
User's Guide
D
40x
1 of 12

Advertisement

loading
Need help?

Need help?

Do you have a question about the YES 40 and is the answer not in the manual?

Questions and answers

Related Manuals for Ergotron YES 40

Summary of Contents for Ergotron YES 40

  • Page 1: Table Of Contents

    User's Guide YES 40 Charging Cart For Tablets Includes PowerShuttle Technology ™ Components This cart is designed to automatically charge and store 1-40 tablet, smart phone, and hand Table of Contents held devices safely and effi ciently. Adjustable shelves customize shelf height in Safety ........

  • Page 2: Safety

    Never unplug this product from the outlet when your hands are wet. Do not use power cord to pull the cart. Ergotron does not accept any liability for damage if the unit is misused, incorrectly operated or inadequately repaired. Under these circumstances the warranty will be void. 2 of 12...
  • Page 3 Safe Use Recommendations WARNING: Failure to observe the following Cart Use Safety notices may result in serious personal injury or equipment damage. WARNING: Death or serious injury may occur when children climb on audio and/or video equipment furniture. A remote control or toys placed on the furnishing may encourage a child to climb on the furnishing and as a result the furnishing may tip over on to the child.

  • Page 4: Features & Specifi Cations

    Features & Specifi cations For added security, each door features hasps to hold your own padlock (maximum shackle dia 5/16" (0.8 cm); minimum shackle height 2" (5.1 cm)). When installed, your padlock restricts access to the handle so the unit can’t be opened.

  • Page 5: Set Up

    Make sure cart is unplugged from the wall before starting set up. Open doors. 5 of 12 888-83-085-G-00 rev. A • 02/19...
  • Page 6 Route cables. 6 of 12 888-83-085-G-00 rev. A • 02/19...
  • Page 7 Add the Bay labels to each Bay Plug in and insert devices. NOTE: ALL DEVICES MUST BE TURNED OFF BEFORE CHARGING. Failure to follow these instructions may result in overheating. To charge devices, plug in power cord and turn cart power on. 7 of 12 888-83-085-G-00 rev.

  • Page 8: How To Adjust Bay Width

    How to Adjust Bay Width: Remove Divider Install Divider 8 of 12 888-83-085-G-00 rev. A • 02/19...

  • Page 9: How To Adjust Shelf Height

    How to Adjust Shelf Height: 9 of 12 888-83-085-G-00 rev. A • 02/19...

  • Page 10: Specifi Cations

    2) This device must accept any interference received, including interference that may cause undesired operation. CAN ICES3(A)/NMB-3(A). Changes or modifi cations not expressly approved by the Ergotron could void the user's authority to operate the equipment. Intended for institutional use.

  • Page 11: Cleaning & Maintenance

    WARNING: Do not use fl ammable cleaners on Cart surfaces. CAUTION: Adjustment, Service, Replacement - DO NOT attempt to adjust, service or replace any part of the Cart unless directed to do so through Ergotron-approved documentation (i.e. installation instructions). Only Ergotron, Inc. or an Ergotron-certifi ed entity may adjust, service or replace Cart components. If any component on the Cart is missing or damaged, the Cart must not be used.
  • Page 12 For Service visit: www.ergotron.com NOTE: When contacting customer service, reference the serial number. www.ergotron.com | USA: 1-800-888-8458 ™ © 2015 Ergotron, Inc. All rights reserved. PowerShuttle is a registered trademark of Ergotron, Inc. ™ 12 of 12 888-83-085-G-00 rev. A • 02/19...
