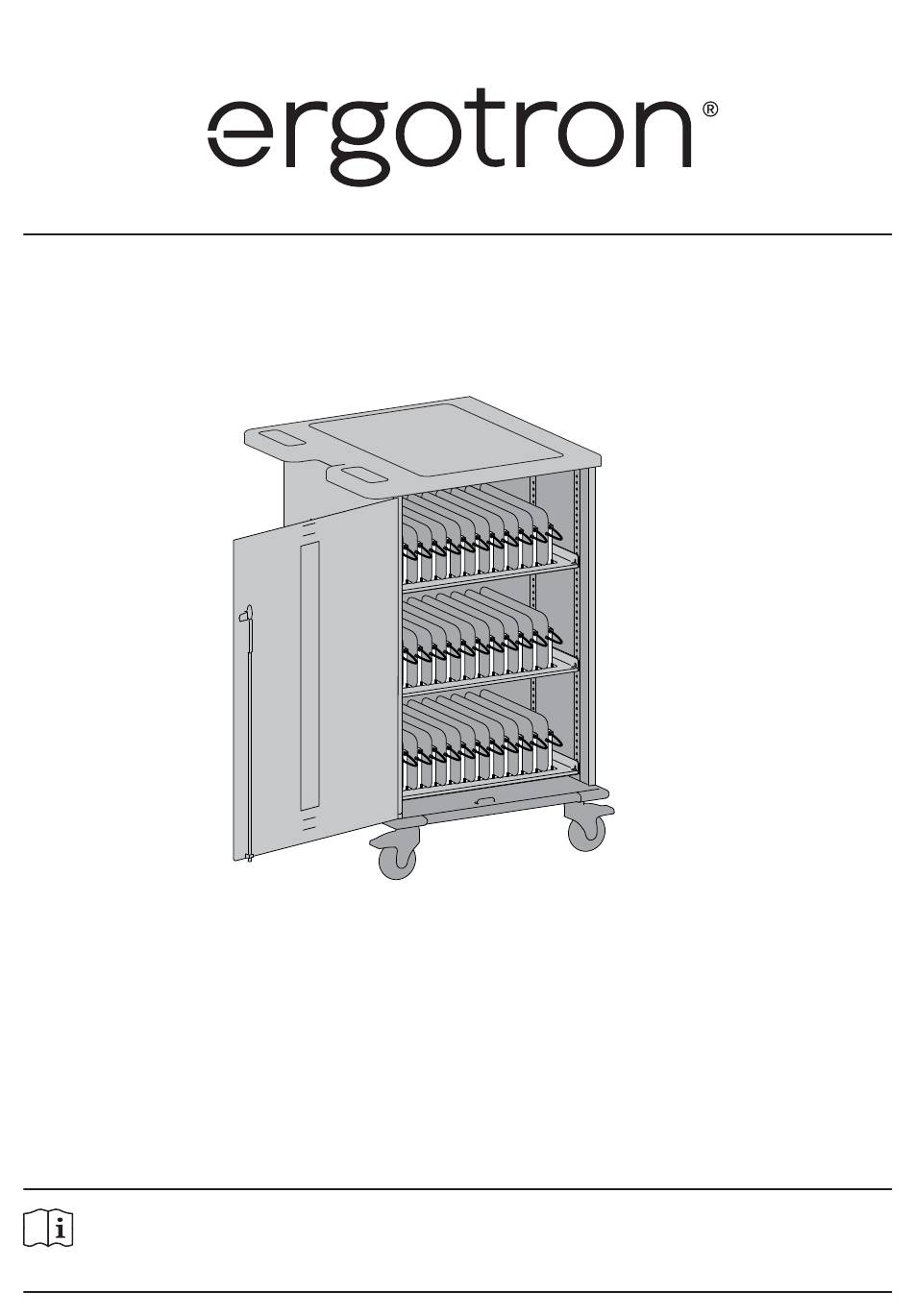

YES BASIC Charging Cart
Ergotron's Yes Cart for Chromebooks is designed to automatically charge and store 1-30 tablet, smart
phone, and Chromebook devices safely and effi ciently. Adjustable shelves customize shelf height in 2.5 cm
increments to fi t a range of device heights; adjustable bays slide left to right to fi t even the largest cases.
Please review this manual before installing your equipment to learn how to use the cart safely.
AC input: 220-240V~, 10A 50/60 Hz.
For the latest User Installation Guide please visit: www.ergotron.com
English, Español, Français, Deutsch, Nederlands, Italiano, Svenska, 日本語, 汉语
www.ergotron.com |
USA: 1-800-888-8458
888-83-088-G-00 rev. A • 04/19
|
Europe: +31 (0)33-45 45 600
Model Part #: YES30-LTPCHR-3
|
|
China: 400-120-3051
Japan: japansupport@ergotron.com
User's Guide
YES30-LTPCHR-4
YES30-LTPCHR-5
English
1 of 13
Advertisement
Table of Contents
Related Manuals for Ergotron YES BASIC Series
Summary of Contents for Ergotron YES BASIC Series
- Page 1 YES30-LTPCHR-4 YES30-LTPCHR-5 Ergotron's Yes Cart for Chromebooks is designed to automatically charge and store 1-30 tablet, smart phone, and Chromebook devices safely and effi ciently. Adjustable shelves customize shelf height in 2.5 cm increments to fi t a range of device heights; adjustable bays slide left to right to fi t even the largest cases.
-
Page 2: Hazard Symbols
Inadequate repair can create signifi cant hazards to users and is not covered by the warranty. Repairs should always be performed by an Ergotron service representative or a qualifi ed electrician. -
Page 3: Equipment Electrical Safety
Equipment Electrical Safety There are specifi c risks associated with the use of equipment having power cables. You must be aware of, and avoid these risks when the Cart is located in close proximity to children. WARNING: Failure to observe the following Electrical Safety notices can result in fi re or death by electric shock. Electrical: Electrical cables can be hazardous. -
Page 4: Features And Specifications
Features & Specifi cations Front Locking Door Latch with Padlock Bracket Cord Wrap with Detachable Power Cord Ergonomic Handle 10 cm Total-Lock Casters Control Box and Circuit Breakers Removable Device Dividers with Cable Channels and Width Adjustment Shelves with Height Adjustment Center Panel with Power Outlets and Cord pass through openings Power Adapter Storage Trays... - Page 5 Unlock and open front door. a. Unlock with Key. b. Lift handle up. c. Rotate handle clockwise. d. Open door. Remove back panel. 888-83-088-G-00 rev. A • 04/19 5 of 13...
- Page 6 a. Route device cables into dividers. b. Route adapters through cart to back of cart and plug into outlets. Store adapters and bundled cables on adapter shelves. a. Insert device into divider. b. Plug power cable into device. 6 of 13 888-83-088-G-00 rev.
- Page 7 Replace the back panel. Plug power cord into base of cart and into wall outlet. 888-83-088-G-00 rev. A • 04/19 7 of 13...
- Page 8 How to Remove Dividers How to Replace Dividers 8 of 13 888-83-088-G-00 rev. A • 04/19...
- Page 9 How to Adjust Shelf Height 888-83-088-G-00 rev. A • 04/19 9 of 13...
-
Page 10: Specifications
Specifi cations Power System 220-240V~ 50/60Hz. Max Amps: 10A Physical Dimensions Height: 106 cm (41.7-inches) Length: 73 cm (28.7-inches) Width: 64 cm (25-inches) Weight (without Mobile Devices) 80 kg (176 lb) Weight Capacity: Top Surface 11.3 kg (25 lb) Shelves (Top, Middle, Bottom) ea. 27.2 kg (60 lb) Adapter Shelves (ea.) 5.4 kg (12 lb) -
Page 11: Troubleshooting Guide
My power cord/plug is damaged. Are they under warranty? For warranty information visit: www.ergotron.com/warranty When I plug in the unit it trips the circuit breaker in my building. Help! The carts are designed to run on a 15 amp circuit. If you have other items plugged into the same circuit you may be overloading it. -
Page 12: Cleaning And Maintenance
Ergotron-approved documentation (i.e. installation instructions). Only Ergotron, Inc. or an Ergotron-certifi ed entity may adjust, service or replace Cart components. If any component on the Cart is missing or damaged, the Cart must not be used. Contact Ergotron immediately to request a replacement part. - Page 13 For Warranty visit: www.ergotron.com/warranty For Service visit: www.ergotron.com For local customer care phone numbers visit: http://contact.ergotron.com NOTE: When contacting customer service, reference the serial number. ™ www.ergotron.com | USA: 1-800-888-8458 Europe: +31 (0)33-45 45 600 China: 400-120-3051 Japan: japansupport@ergotron.com © 2018 Ergotron, Inc. All rights reserved. PowerShuttle is a registered trademark of Ergotron, Inc.
