For the latest User Installation Guide please visit: www.ergotron.com
User's Guide - English
Guía del usuario - Español
Manuel de l'utilisateur - Français
Gebruikersgids - Deutsch
Benutzerhandbuch - Nederlands
Guida per l'utente - Italiano
Användarhandbok - svenska
ユーザーガイ ド : 日本語
用户指南 : 汉语
888-61-070-G-04 rev. F • 10/14

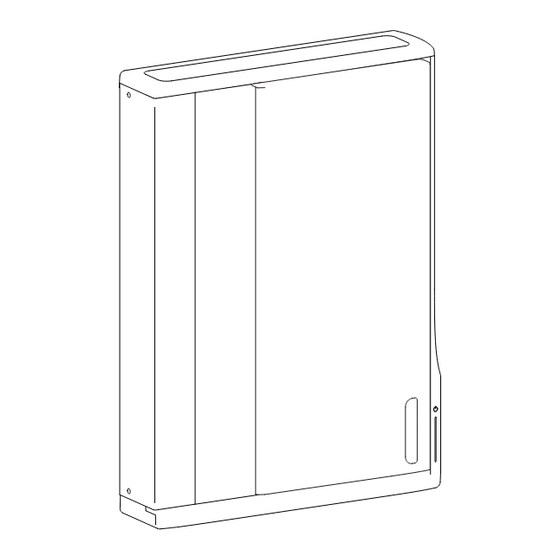

Tablet Charging Wall Mount 12
Includes Show & Stow™ technology.
User's Guide
Show
&Stow
TM
1 of 17
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Ergotron Tablet Charging Wall Mount 12
Summary of Contents for Ergotron Tablet Charging Wall Mount 12
- Page 1 User's Guide Tablet Charging Wall Mount 12 Show Includes Show & Stow™ technology. &Stow For the latest User Installation Guide please visit: www.ergotron.com User's Guide - English Guía del usuario - Español Manuel de l’utilisateur - Français Gebruikersgids - Deutsch Benutzerhandbuch - Nederlands Guida per l’utente - Italiano...
-
Page 2: Hazard Symbols
< 44.4 lbs. (20.1 kg) WARNING: Because surfaces vary widely and the ultimate CAUTION: Make sure the mounting method is out of Ergotron’s control, it is imperative wall mount bracket is level, CAUTION: DO NOT EXCEED MAXIMUM that you consult with appropriate engineering, architectural fl ush and snug to the wall LISTED WEIGHT CAPACITY. -
Page 3: Tools Needed
Components 1/4”-20 x 2” M6 x 70mm 5/32” Tools Needed Stud Finder 10mm WOOD STUD HOLLOW WALL Ø 3/16" (5 mm) Ø 1/2" (13 mm) CONCRETE Ø 3/8" (10 mm) REMOVE INTERNAL PACKAGING 888-61-070-G-04 rev. F • 10/14 3 of 17... -
Page 4: Mounting Considerations
MOUNTING CONSIDERATIONS Space Requirements: When mounting to wood stud, at least one screw in the upper mounting bracket must be installed in a stud (preferably the center hole). 35.3" (900 mm) 7" 11.8" 6.5” (178 mm) (300 mm) (168 mm) 6"... - Page 5 WOOD STUD HOLLOW WALL First Choose a Hole Option: The stud can be located at one of fi ve mounting holes on the top bracket. While the fi rst option (center hole of bracket) is recommended, you should consult with a construction professional to confi rm which method is best suited for your particular situation.
- Page 6 WOOD STUD HOLLOW WALL Find stud and draw a mark. Put a mark on the stud 62”-68” (158-173 cm) from fl oor. 62”-68” (158-173 cm) Place template on wall lining up the Secure template to wall. chosen hole with the stud and the mark 62”-68”...
-
Page 7: Hollow Wall
WOOD STUD HOLLOW WALL 1. Drill the three holes for the top bracket that correspond with the hole option determined on previous page. 2. Drill the bottom two holes. NOTE: Use the Ø 3/16” (5 mm) drill bit when drilling directly into the wood stud. Use the Ø... - Page 8 CONCRETE Put a mark on the wall 62”-68” Secure template to the wall (158-173 cm) from fl oor. lining up the chosen mounting holes with the mark 62”-68” (158-173 cm) from fl oor. 62”-68” (158-173 cm) 62”-68” (158-173 cm) Drll the top 3 holes, then the bottom two holes. Ø...
- Page 9 Hang unit onto top bracket. Warning: 2 people are required to lift this product. a. Remove two screws on left side. Save screws for reattaching cover. b. Unlock door by turning key 180° clockwise. a. Open door and remove these 3 screws. Save screws for reattaching cover. b.
- Page 10 a. Secure unit to wall by inserting screw through back wall and into bottom right wall anchor. b. Close door, then insert screw through back wall and into bottom left wall anchor. WOOD STUD CONCRETE HOLLOW WALL 5/32” M6 x 70mm 1/4”-20 x 2”...
- Page 11 a. Plug in all the tablet power cables into the outlets inside. b. Route cables through the access holes. c. Open door an pull cables through the access holes. 888-61-070-G-04 rev. F • 10/14 11 of 17...
- Page 12 Pull out tablet tray and insert tablet. NOTE: Tablet should be positioned so power plug is at top or left side. a. Slide cable clip off of tablet slot and route cable through clip, then reattach cable clip. NOTE: Leave enough slack in cable to plug into tablet. b.
- Page 13 Tie up excess cable with velcro cable ties. NOTE: Keep cables away from power system components that might get hot during operation. a. Attach left cover with 2 screws saved from removal of cover. b. Open door and attach 3 inside screws saved from removal of left cover 888-61-070-G-04 rev.
- Page 14 a. Close door. b. Lock door by turning key 180° counterclockwise. Plug power cable into bottom power jack and then into wall outlet to start charging. 888-61-070-G-04 rev. F • 10/14 14 of 17...
-
Page 15: Specifications
Tablet Charging To begin charging the tablets, plug in the power cord. The power cord is used to turn the power on and off . Charging occurs whenever the power cord is connected to an outlet. NOTE: The power cord acts as the connect/disconnect device switching power off and on. -
Page 16: Cleaning And Maintenance
The power cord acts as the connect/disconnect device switching power off and on. The socket outlet shall be installed near the equipment and shall be easily accessible. CAUTION: Changes or Modifi cations not expressly approved by Ergotron could void the user’s authority to operate the equipment. Use Safety There are specifi c risks associated with the use of this product (for charging or storage). -
Page 17: Service And Warranty
Service and Warranty For local customer care phone numbers visit: http://contact.ergotron.com www.ergotron.com NOTE: When contacting customer service, MADE IN CN 12-345-678 reference the serial number. 1234567-1234 888-61-070-G-04 rev. F • 10/14 17 of 17...
