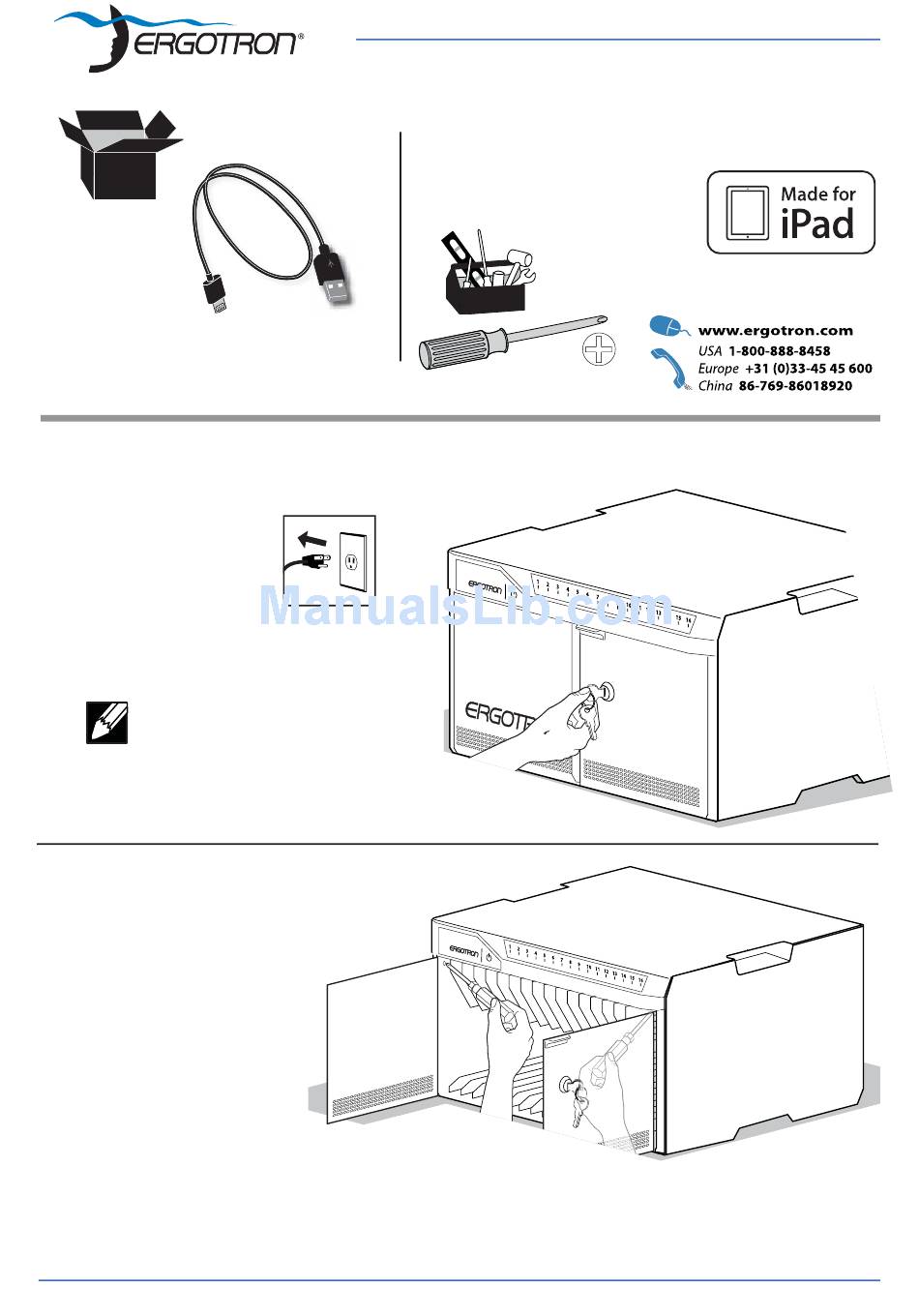

Ergotron Tablet Management Cart / Module Service Manual

Tablet management cart / module sync cable kit for ipad
Hide thumbs
1
2
3
4
5

Advertisement

Table of Contents

16x
Compatibility:
Made for
iPad Air 2
iPad Air
iPad (4th generation)
iPad mini 3
iPad mini with Retina Display
iPad mini
1
Make sure the Module power cord is
disconnected from wall power supply
before proceeding.

Unlock the module and open the doors.

NOTE: the Module power cord acts
as the connect/disconnect device
switching power off and on.
2
Use a Phillips screwdriver to remove the two
screws located on the interior sides of the
module; save screws to reinsert later.
Apple, iPad, iPad Air, iPad mini, Retina and Macintosh are trademarks of Apple Inc., registered in the U.S. and other countries.
"Made for iPad," means that an electronic accessory has been designed to connect specifi cally to iPad, and has been certifi ed by the developer to meet Apple performance standards.
Apple is not responsible for the operation of this device or its compliance with safety and regulatory standards. Please note that the use of this accessory with iPad may aff ect wireless.
888-97-317-G-00 rev E • 12/14
Length
0.5 m (19.7")
Tablet Management Cart / Module
Service Manual
Sync Cable Kit
for iPad®
1 of 5
