Ergotron YES BASIC Service Manual

Built with Anthro-DNA™
This product uses semiconductors that can be damaged by electrostatic discharge (ESD).
Always handle with care to avoid damage to electrostatic-sensitive components.
1
888-05-059-G-00 rev. A • 05/17

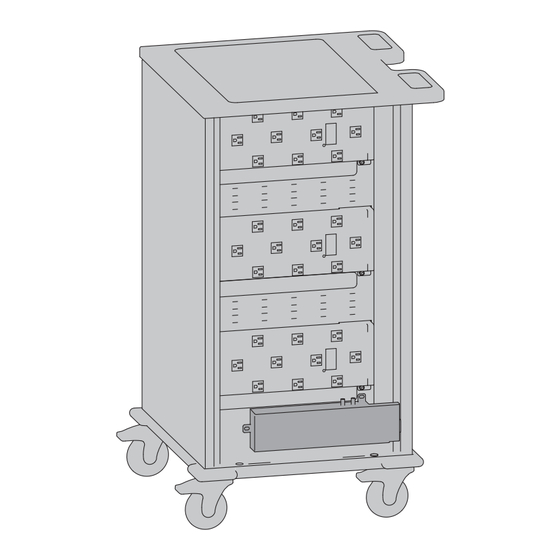

YES BASIC Charging Cart
Timer Module Replacement
To prevent equipment damage, discharge body static before handling
ATTENTION
the printed circuit boards or any module containing a printed
OBSERVE PRECAUTIONS
circuit board. To discharge body static, use a conductive wrist strap
ELECTROSTATIC
attached to a good earth ground or discharge body static by touching
SENSITIVE DEVICES
a grounded bare metal surface. Handle printed circuit boards or
827-181-00
modules by their edges once removed from protective antistatic bags.
Components
1x
Tools Needed
Service Manual
10mm
1/8"
2.5mm
1 of 5
