Built with Anthro-DNA™

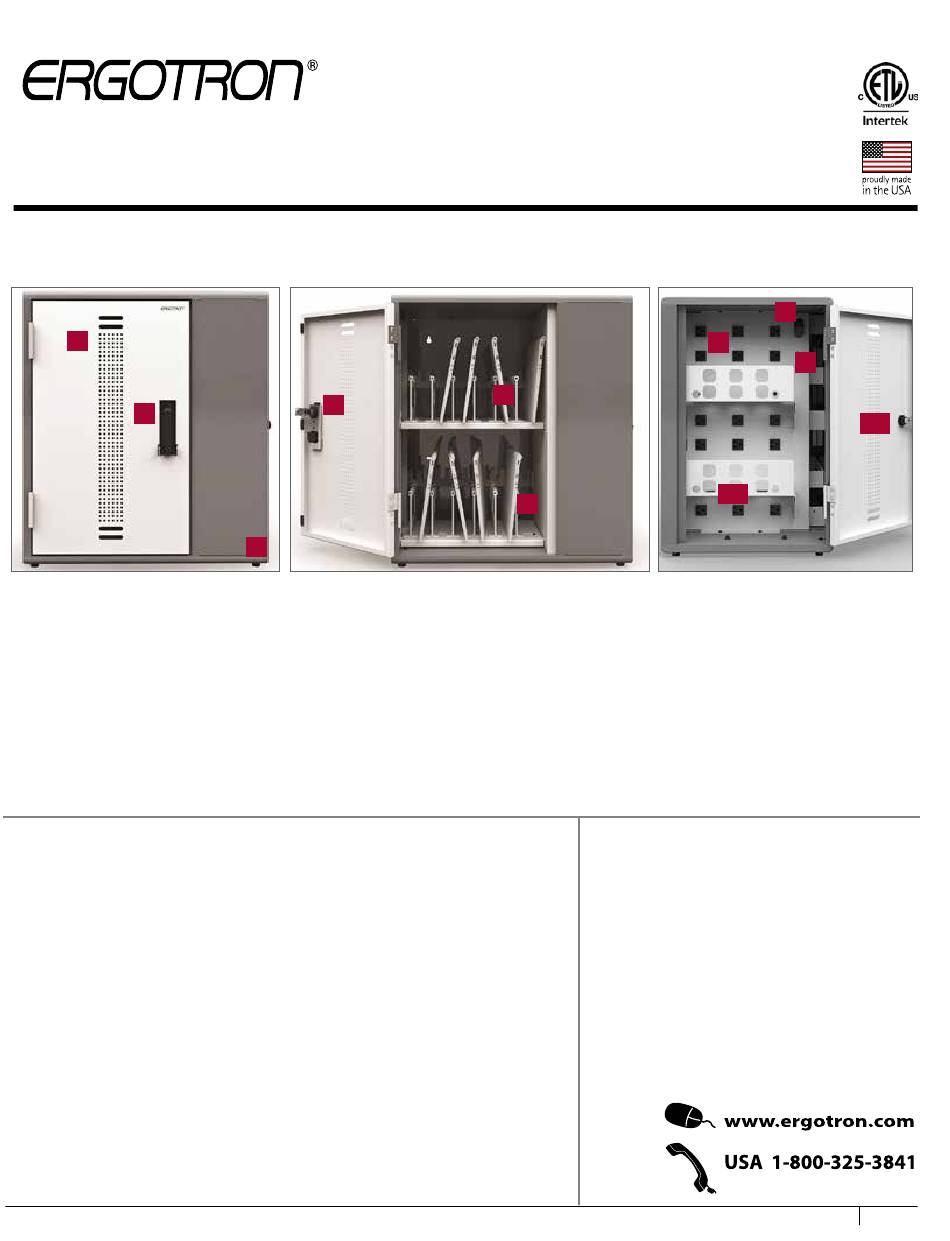

Components at a Glance
1
2
Front of Cabinet (closed)
1. Locking front door to User area.
2. Locking door latch w/padlock
bracket.
3. Feet (for countertop installation)
This Cabinet is designed to automatically charge and store tablet, hand-held, and mini-
laptop devices safely and efficiently. This cabinet supports 1-12 devices. Please review this
manual before installing your equipment to learn how to use the cabinet safely.
The cabinet is listed to UL Information Technology Equipment 60950-1 safety standard.
AC input: 120VAC 60 Hz. Max amps: 12A.
For the latest User Installation Guide please visit: www.ergotron.com
300-5627-00 rev. E 11/16
Owner's Manual for
YES 12 Charging Wall
Cabinet for Mini-laptops
Part # YESMLCGMPW
4
3
Front of Cabinet (open)
4. Lock mechanism
5. Bay dividers with
Cable Channels
6. Back cable carrier (at back of
enclosure)
5
6
Table of Contents
Getting Started ................2
Safety Notices .................2
Installing the Cabinet .......3
Loading Devices ..............6
Troubleshooting Guide ....7
Warranty ..........................8
7
9
8
11
10
Side of Cabinet (open)
7. On/off switch
8. Cord pass-through from front of
cabinet
9. Center divider with power outlets
10. Bins for power adapters
11. Power cord access
12. Locking side door to IT area
1 of 8
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Ergotron YES 12
Summary of Contents for Ergotron YES 12
-
Page 1: Table Of Contents
The cabinet is listed to UL Information Technology Equipment 60950-1 safety standard. Safety Notices ....2 Installing the Cabinet ..3 AC input: 120VAC 60 Hz. Max amps: 12A. Loading Devices ....6 Troubleshooting Guide ..7 Warranty ......8 For the latest User Installation Guide please visit: www.ergotron.com 300-5627-00 rev. E 11/16 1 of 8... -
Page 2: Getting Started
CAN ICES-3(A)/NMB-3(A). • Inadequate repair can create significant hazards to users and is Changes or modifications not expressly approved by Ergotron not covered by the warranty. Repairs should always be performed could void the user's authority to operate the equipment. -
Page 3: Installing The Cabinet
Installing the Cabinet STE P 1 Select the Mounting Location and Method ƒ When choosing the right place to install your cabinet, be sure to check the location of your power source. The power cord that comes with your cabinet is 10 ft long. ƒ... - Page 4 STE P 3 Wall-mount to Drywall ƒ Determine the installation point for your cabinet. While one person holds the cabinet frame up to the wall at the desired height, the other marks the height of the top of the cabinet. Measure down 1-1/2"...
- Page 5 STE P 5 Install Feet • Stick a 3/4" wood screw through each rubber bumper (581-5063-00). • Locate the four pre-drilled holes on the bottom of the cabinet, one in each corner. Using the Anthro driver, attach each foot to the cabinet. 3/4"...
-
Page 6: Loading Devices
Loading Devices, Cable Management In the front User area of the cabinet • Check that the vertical spacing of the shelves fits your devices. Shelves can be installed at any height inside the cabinet. To adjust shelf height, the • To route the cords, route one Anthro driver to loosen charging cord along the top of... -
Page 7: Troubleshooting Guide
My power cord/plug is damaged. Is it covered under warranty? For warranty information visit: www.ergotron.com/warranty When I plug in the unit it trips the circuit breaker. What is wrong? The cabinets are designed to run on a 15 amp circuit. If you have other equipment or appliances plugged into the same circuit you may be overloading it. - Page 8 For local customer care phone numbers visit: http://contact.ergotron.com © 2016 Ergotron, Inc. All rights reserved. All trademarks are the property of their respective companies. Anthro is a registered trademark and brand of Ergotron Inc. Anthro-DNA is a trademark of Ergotron Inc.
