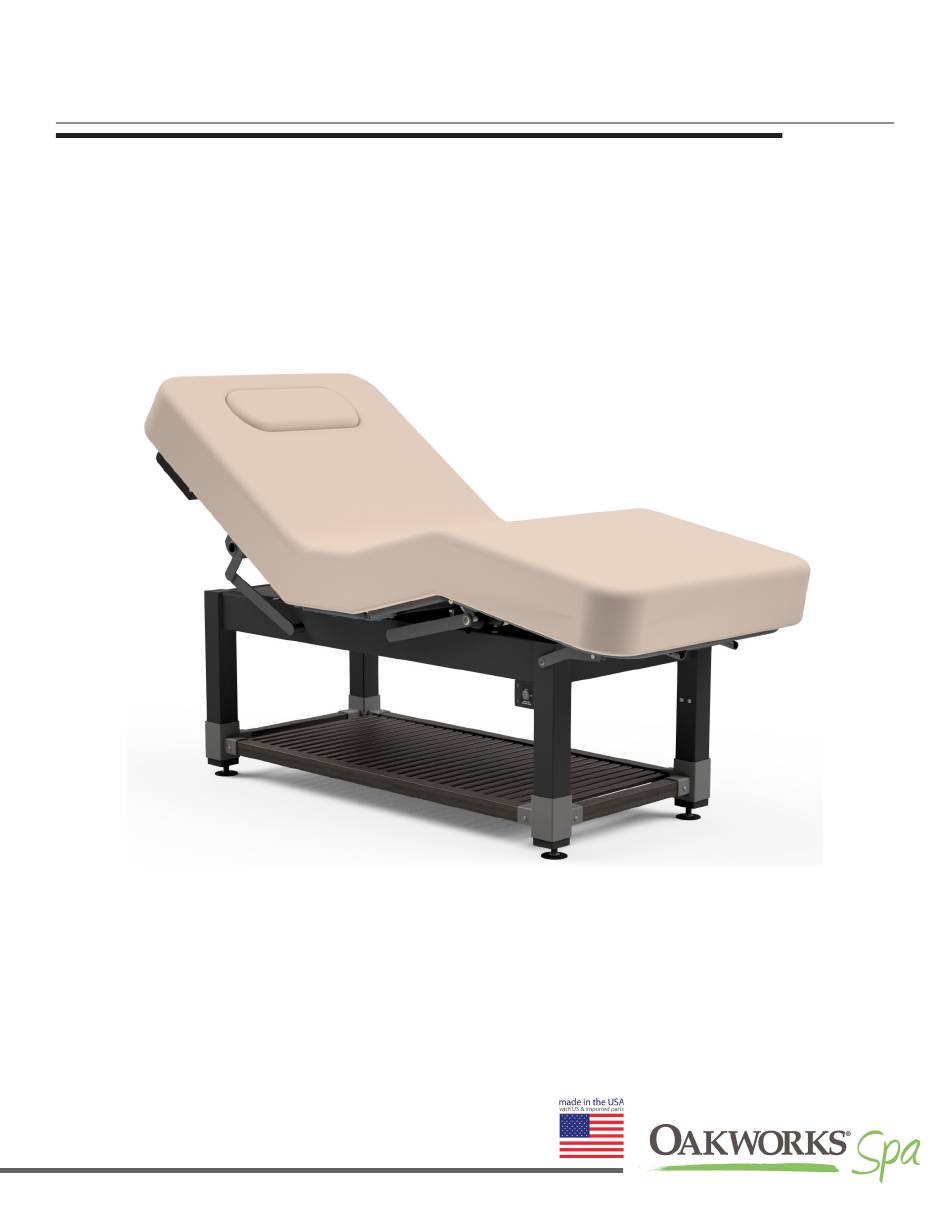

  • Page 1 USER MANUAL OAKWORKS ® Clodagh Leo www.oakworks.com · 717.235.6807...
  • Page 2 OAKWORKS , Inc. tial damages in connection with or ® arising out of the furnishing, per- formance, or use of this document OAKWORKS is a registered and the program material which it ® trademark of OAKWORKS , Inc. describes. ®...

  • Page 3: Table Of Contents

    Symbol Identification ................... 1 Important Safety Instructions ................2-3 Installation Grounding ......................4 Product Description & Photo Clodagh Leo Electric Salon ................. 5 Controls Operations .................... 6 Directions for Use Storage Shelf ...................... 7 Important Safety Note ..................7 Table Keyswitch ....................7 Levelling Instructions ...................

  • Page 4: Product Use Description

    PRODUCT USE DESCRIPTION / IMPORTANT SAFETY INSTRUCTIONS P R O D U C T U S E D E S C R I P T I O N The product is a cord connected spa/massage table for commercial use. It is intended for indoor use. Maximum weight capacity of 500 lbs.

  • Page 5: Important Safety Instructions

    2. Never operate this furnishing if it has a damaged cord or plug, if it is not working properly, if it has been dropped or damaged, or dropped into water. Contact Oakworks Customer Service before use at 717.235.6807. 3. Keep the cord away from heated surfaces.
  • Page 6 IMPORTANT SAFETY INSTRUCTIONS ENTRAPMENT • Risk of Injury - The picture below indicate areas of entrapment that can occur when operating this equip- ment. It is the responsibility of the operator to ensure that bystanders are not in or around these areas dur- ing operation.

  • Page 7: Installation

    INSTALLATION The tables come completely assembled and ready to use. Plug the cord into a functioning outlet that is rated for the table. (See Grounding below) Arrange the power cord and control cords so that they will not create a tripping hazard. Be sure access to the plug is not blocked for disconnecting the table from power.

  • Page 8: Product Description & Photo

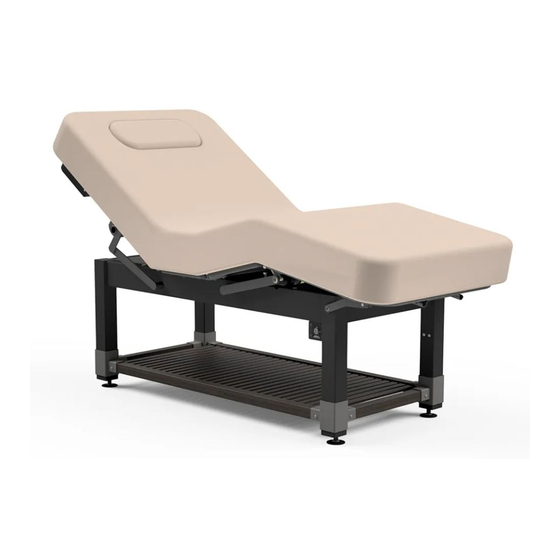

    PRODUCT DESCRIPTION Clodagh Leo Electric Salon STANDARD SPECIFICATIONS OPTIONS Motion 1 Powered 25”-35” (64-90 cm.) Height Range Adjustable Breast Comfort (ABC) System Motion 2 Powered 0-70º Backrest Wood Finishes Motion 3 Powered 0-30º Foot Rest Base Powder Coat Foot Control...

  • Page 9: Controls Operations

    DO NOT use this area for holding anything. Damage can occur to the table. The Clodagh Leo Electric Salon Table offer height, backrest, footrest, and optional ABC positioning with electronic ease. Operate the foot and hand control as shown below to raise or lower the height, backrest, footrest, or optional ABC functions of the table.

  • Page 10: Directions For Use

    DIRECTIONS FOR USE S T O R A G E S H E L F This product offers a large under-table shelf to accommodate storage of towels and other equipment without interfering with the lift capacity of the table. The maximum shelf load weight is 200 lbs. (91 kg.) I M P O R T A N T S A F E T Y N O T E The cabinet hood area under the backrest top is not designed for storage or as an area to hold acces-...

  • Page 11: Levelling Instructions

    DIRECTIONS FOR USE L E V E L I N G I N S T R U C T I O N S 1. Place the table in the location where you plan to use it. 2. Rock the table to determine if it is level with the floor. If the table rocks back and forth at all, the foot that clears the floor when you rock the table will need adjustment.

  • Page 12: Removing Top Pad

    DIRECTIONS FOR USE R E M O V I N G T O P P A D The top pad has been designed to be easily removable and replaceable with no tools needed. IF THE TABLE HAS A HEATED TOP: Unplug the table from the wall outlet and disconnect the wires circled from the control box located under the platform.

  • Page 13: Adjustable Body Comfort (Abc) System Use (Option)

    • For safety of your client, use a cloth sheet between the ABC System and your client. Oakworks Adjustable Breast Comfort (ABC) System is designed to lower the pressure on breasts and pectoral muscles, allowing the client to relax and create a more comfortable position for their spine. The height of the cushion is easily adjusted up and down in small increments by using the hand control.

  • Page 14: Integrated Heated Top (Option)

    DIRECTIONS FOR USE INTEGRATED HEATED TOP (OPTION) USING THE INTEGRATED HEATED TOP: The table comes with the option for a fully integrated dual zone heated top pad. Simply press the heating indicator(s) located on the right side rail of the table to the desired heat level. The heat can reach up to 40°C (105°F).

  • Page 15: Quicklock Face Rest: (Accessory Option)

    DIRECTIONS FOR USE QuickLock FACE REST: (ACCESSORY OPTION) • QuickLock Face Rest Weight Limit - 25 lbs (11.3 kg) CAUTION • Do not put excessive weight or pressure on the Face Rest. • Excessive pressure can cause premature failure of the Face Rest. Double articulating action provides nearly limitless positioning options with the QuickLock Face Rest.

  • Page 16: Arm Rest Installation And Adjustment Instructions

    DIRECTIONS FOR USE ADJUSTABLE SIDE ARM RESTS (ACCESSORY OPTION - SALON ONLY) • Do not use the arm rest for client support during the mounting or dismounting of the chair. CAUTION • The arm rest is not designed to support the client’s weight. TO INSTALL THE ARM RESTS: The Arm Rests adjust automatically as the back rest moves to remain parallel to the floor.

  • Page 17: Boiance Shelf Support (Accessory Option)

    DIRECTIONS FOR USE BOIANCE SHELF SUPPORT: (ACCESSORY OPTION) • Boiance Shelf Support Weight Limit - 25 lbs (11.3 kg) CAUTION • Do not put excessive weight or pressure on the Boiance Shelf Support. • Excessive pressure can cause premature failure of Boiance Shelf Support. USING THE BOIANCE SHELF SUPPORT: The shelf and bracket used together allow you to create the perfect place for clients’...

  • Page 18: Bluetooth Speaker (Accessory Option)

    DIRECTIONS FOR USE BLUETOOTH SPEAKER (ACCESSORY OPTION) BLUETOOTH SPEAKER ATTACHMENT: Located on the Face Rest Bracket on the underside of the head end of the table. Position Bluetooth Speaker with the magnetic attachment facing up. Plug the cord into the side of the speaker and attach it to the bracket. CONNECTING TO BLUETOOTH SPEAKER: Turn Bluetooth Speaker on by pressing the power button.

  • Page 19: Cleaning & Disinfection

    Follow the cleaners/disinfectant manufacturers’ directions for use. Please note that cleaning and disin- fecting an Oakworks table is a two part process. First it must be cleaned of any visible soil, then it can be disinfected. Oakworks recommends that the table be positioned in the flat position during the clean- ing process.

  • Page 20: Inspections

    INSPECTIONS / WARRANTY INSPECTIONS RECOMMENDED REGULAR INSPECTIONS (monthly or local standard) • Check for damage to the power, hand control(s) and foot control(s) on all cables. • Visually inspect components for obvious damage that could cause problems during operation. • If the table is creaking/ squeaking during movement of the electric salon top, apply a small amount of lithium grease to the linkages and bushings indicated below.

  • Page 21: Model Number & Serial Number

    The model number and serial number are located on the underside of the foot section. Serial Number Model Number 16796025 LESX4EX1T411USXX Ser#:CFK123456 Clodagh Leo Electric Salon 4EX/1/T/4/11/US/XX TTClay 09/01/2021 Order#:654321 Notes: Sample Product Label Model Numbers and Serial Numbers always start with a letter.

  • Page 22: Specifications

    SPECIFICATIONS T A B L E D I M E N S I O N S SHELF DIMENSIONS 45.0” L x 18.3” W x 9.8” H 114.3 cm L x 46.5 cm W x 24.9 cm H...

  • Page 23: Permissible Environmental Conditions

    SPECIFICATIONS PERMISSIBLE ENVIRONMENT CONDITIONS Conditions Temperature Humidity Atomic Pressure Normal Use 50° (10°C) to 104° (40°C) 20% to 60% RH 98 to 105 kPa Storage & Transport -20° (-29°C) to 135° (57°C) 20% to 95% RH 98 to 105 kPa ELECTRICAL SPECIFICATIONS Designed for: North America...

  • Page 24: Contact Information

    USER MANUAL OAKWORKS ® Clodagh Leo C O N T A C T I N F O R M A T I O N: Oakworks Inc. ® 923 East Wellspring Road New Freedom, PA 17349 Phone: 717.235.6807 FAX: 717.235.6798 www.oakworks.com...
