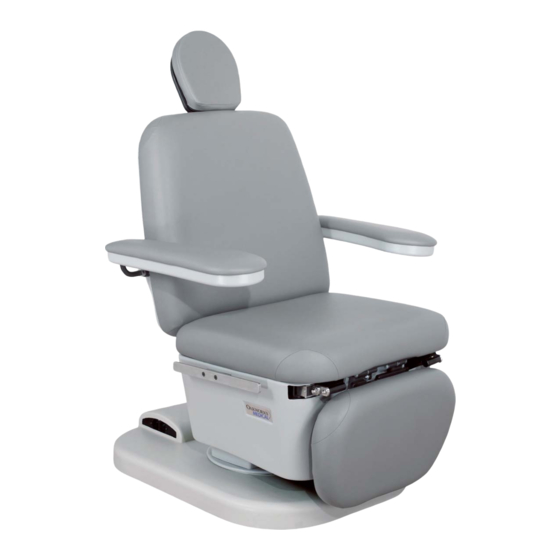

- Page 1 USER MANUAL OAKWORKS ® 300 Series Procedure Chair made in the USA with US & imported parts www.oakworksmed.com · 717.235.6807...
- Page 2 ® damages in connection with or arising out of the furnishing, performance, or OAKWORKS is a registered use of this document and the program ® trademark of OAKWORKS , Inc. material which it describes. ®...
-
Page 3: Table Of Contents
Product Use Description ..................1 Important Safety Instructions Symbol Identification ................... 1 Safety Instructions ................... 1-2 Product Description & Photo 300 Series Procedure Chair ................3 Installation Grounding ......................4 Directions for Use Hand Control Operations ..................5 Foot Control Operations ..................6 Swivel Base Use .................... -
Page 4: Product Use Description
PRODUCT USE DESCRIPTION / IMPORTANT SAFETY INSTRUCTIONS P R O D U C T U S E D E S C R I P T I O N The Procedure Chair is a powered positioning examination table used to support the patient during medical procedures. - Page 5 Close supervision is necessary when this furnishing is used near children or disabled persons. The Oakworks Procedure Chair has two lifting columns that raise and lower the chair and three actuators that allow the client to be positioned for both client and therapist comfort. Each of these devices has a duty cycle of approximately 10%, meaning 2 minutes of operation within a 20 minute period.
-
Page 6: Product Description & Photo
PRODUCT DESCRIPTION 300 Series Procedure Chair Adjustable Head Rest (accessory) 12 Button Hand Control electric adjustment Electric 0° to 80° Back Rest Paper Roll Holder (1) Self-Adjusting Removable Arm Rests (2) (accessory) Retractable Foot Rests Fixed T-Rail (Stirrups) (2) (2) (option) -
Page 7: Installation
INSTALLATION The Procedure Chairs come completely assembled and ready to use. Plug the cord into a functioning outlet that is rated for the table. (see Grounding below) Arrange the power cord and control cords so that they will not create a tripping hazard and where the controls are located to your liking and are conveniently accessible. -
Page 8: Directions For Use
DIRECTIONS FOR USE H A N D C O N T R O L O P E R A T I O N S CAUTION Do not sit on the Fowler (Backrest) or Leg Rest sections. Do not leave the patient unat- tended. -
Page 9: Foot Control Operations
DIRECTIONS FOR USE F O O T C O N T R O L O P E R A T I O N S CAUTION Do not sit on the Fowler (Backrest) or Leg Rest sections. Do not leave the patient unat- tended. -
Page 10: Swivel Base Use
DIRECTIONS FOR USE S W I V E L B A S E U S E CAUTION When rotating the chair, make sure there is nothing around the chair that can impede the rotational motion (like stools, cabinets, etc) Rotate up º... -
Page 11: Head Rest Use
DIRECTIONS FOR USE H E A D R E S T U S E CAUTION Do not extend the dowels more than 4” (10 cm.) from the Back Rest section. Adjustable Large The Adjustable head rest The Large head rest is angle is adjusted using a adjusted by using the knob. -
Page 12: Procedure Tray Use
DIRECTIONS FOR USE P R O C E D U R E T R A Y U S E CAUTION Make sure the Leg Rest is fully lowered before using the procedure tray. Do not sit or push on the Procedure Tray when extended from the seat. Maximum Weight rating of 15 lbs. -
Page 13: Arm Rest Installation And Adjustment
DIRECTIONS FOR USE A R M R E S T I N S T A L L A T I O N A N D A D J U S T M E N T CAUTION Do not use the arm rest for patient support during the mounting or dismounting of the chair. -
Page 14: Procedure Chair Face Rest Crescent
DIRECTIONS FOR USE P R O C E D U R E C H A I R F A C E R E S T C R E S C E N T The Procedure Chair Face Rest Crescent is designed to be used for prone positioning. An Adjustable Head Rest is required for this accessory. -
Page 15: Power Outlet Use
DIRECTIONS FOR USE P O W E R O U T L E T U S E WARNING The maximum amperage for the Power Outlet is 3 amps. Connecting equipment that exceeds this rating will damage the system. Only connect low current devices. Do not connect an extension cord or power strip to the Power Outlet. -
Page 16: Cleaning & Disinfection
To reduce the risk of electric shock: DANGER - Always unplug this furnishing from the electrical outlet before cleaning. The following cleaners were tested by OAKWORKS ® and found to be acceptably compatible with all materials used in construction of our products: Formula 409 ®... -
Page 17: Cleaning Process
Follow the cleaners/disinfectant manufacturers’ directions for use. Please note that cleaning and disinfecting an OAKWORKS table is a two part process. First it must be cleaned of any visible soil, then it can be disinfected. The table should be cleaned as soon as possible after use. Please follow these procedures for best results: Using a fresh wipe or wipes, clean any visible soil off of the table, working from the top to the bottom of the table. -
Page 18: Model Number & Serial Number
Model Number 16796025 PC30G32719743MTTZZH8BK Serial Number Ser#: PC1565022 PCM 300 Series 27 x 19-35 x 74 3M/TT/XXH8BK TTSKYBLUE 01/04/2013 Order#:654321 Notes: Sample Product Label Model Numbers and Serial Numbers always start with a letter. MODEL NUMBER DESCRIPTION... -
Page 19: Specifications
SPECIFICATIONS PRODUCT SPECIFICATIONS Weight 280-325 lbs. (127-148 kg.) Shipping Weight 372-417 lbs. (169-189 kg.) Lifting Capacity 550 lbs. (250 kg.) ENVIRONMENTAL CONDITIONS Conditions Temperature Humidity Atmospheric Pressure Normal Use 50° (10°C) to 104° (40°C) 20% to 60% RH 98 to 105 kPa Storage &... -
Page 20: Guidance And Manufacturer's Declaration - Electromagnetic Emissions
SPECIFICATIONS Guidance and manufacturer’s declaration - electromagnetic emissions The chair is intended for use in the electromagnetic environment specified below. The customer or the user of the chair should assure that it is used in such an environment. Emissions Test Compliance Electromagnetic environment - guidance The chair uses RF energy only for its internal RF emissions function. Therefore, its RF emissions are very low and Group 1 CISPR 11 are not likely to cause any interference in nearby elec-... -
Page 21: Guidance And Manufacturer's Declaration - Electromagnetic Immunity
SPECIFICATIONS Guidance and manufacturer’s declaration - electromagnetic immunity The chair is intended for use in the electromagnetic environment specified below. The customer or the user of the chair should assure that it is used in such an environment. Electromagnetic Immunity Test IEC 60601 test level Compliance level environment - guidance Floors should be wood, con- crete or ceramic tile. If floors Electrostatic discharge (ESD) ±6 kV contact ±6 kV contact are covered with synthetic... - Page 22 SPECIFICATIONS Guidance and manufacturer’s declaration - electromagnetic immunity The chair is intended for use in the electromagnetic environment specified below. The customer or the user of the chair should assure that it is used in such an environment. Immunity Test IEC 60601 test level Compliance level Electromagnetic environment - guidance Portable and mobile RF communications equipment should be used no closer to any part of the chair, includ- ing cables, than the recommended separation distance calculated from the equation applicable to the frequency of the transmitter.
-
Page 23: Product Disposal
SPECIFICATIONS PRODUCT DISPOSAL Disposal of the 300 Series Procedure Chair must be compliant with the applicable regulations and require- ments of the local state environmental protection agency, state health agency, Centers for Disease Control (CDC), Occupational Safety and Health Administration (OSHA), U.S. Food and Drug Administration... -
Page 24: Contact Information
USER MANUAL OAKWORKS ® 300 Series Procedure Chair C O N T A C T I N F O R M A T I O N: Oakworks Inc. ® 923 East Wellspring Road New Freedom, PA 17349 Phone: 717-235-6807 FAX: 717-235-6798 www.oakworksmed.com...
