CAN bootloader

Note:

When writing to the RAM, care must be taken to avoid overlapping the first 4Kbytes

(0x1000) in RAM because they are used by the bootloader firmware.

Note:

No error is returned when performing write operations on write protected sectors.

Write operations to FLASH/SRAM must be word aligned, if less data are written the

remaining bytes must be filled with 0xFF.

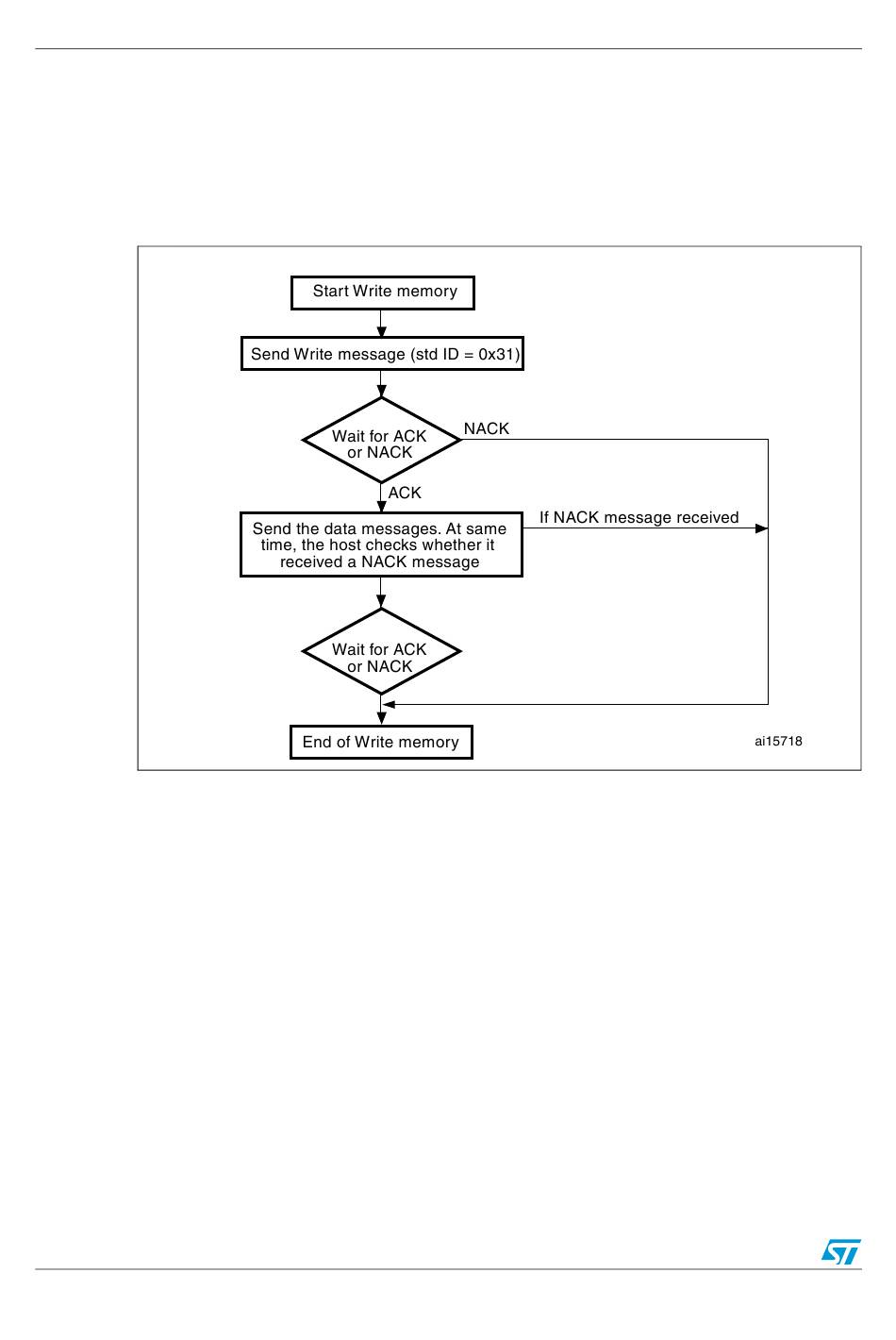

Figure 40. Write Memory command via CAN: Host side

Note:

If the start address is invalid, the command is NACKed by the device.

54/83

Doc ID 14156 Rev 1

AN2662
