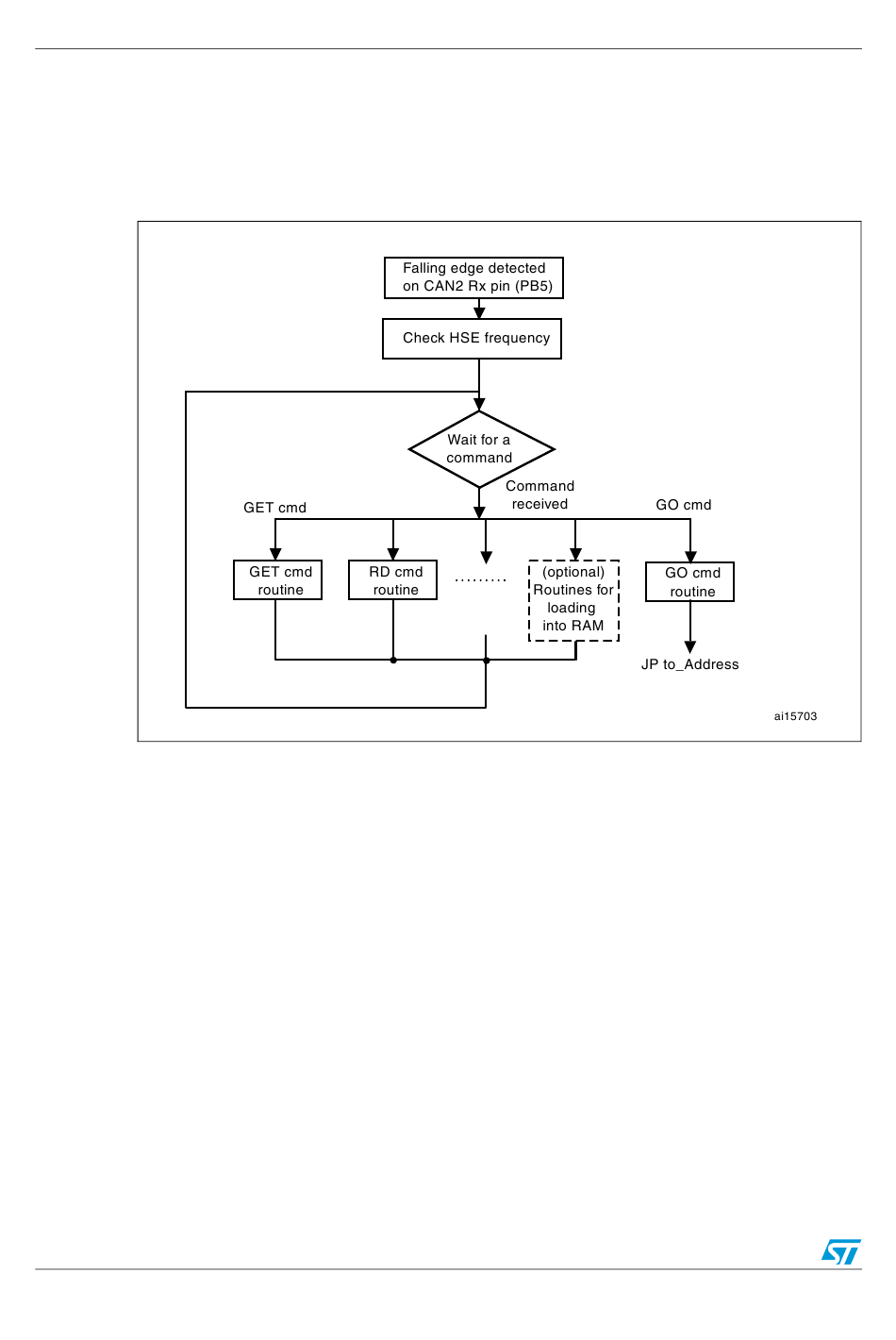

Can Bootloader; Bootloader Code Sequence; Figure 25. Bootloader For Stm32F105Xx And Stm32F107Xx Withcan2 - ST STM32F105 Series Application Note

System memory boot mode

Hide thumbs Also See for STM32F105 Series:

Table of Contents

CAN bootloader

3.1

Once System memory boot mode is entered and the microcontroller has been configured as

described above, the bootloader code waits for a falling edge on the CAN2_Rx pin. When a

detection occurs the CAN Bootloader firmware starts to check the external clock frequency,

Figure 26

38/83

shows the flowchart of the frequency check.

Doc ID 14156 Rev 1

AN2662
