Figure 31. Get Version & Read Protection Status Command: Device Side - ST STM32F105 Series Application Note
System memory boot mode
Hide thumbs
Also See for STM32F105 Series:
- Reference manual (1128 pages) ,
- Application note (29 pages)
Table of Contents
Advertisement
CAN bootloader

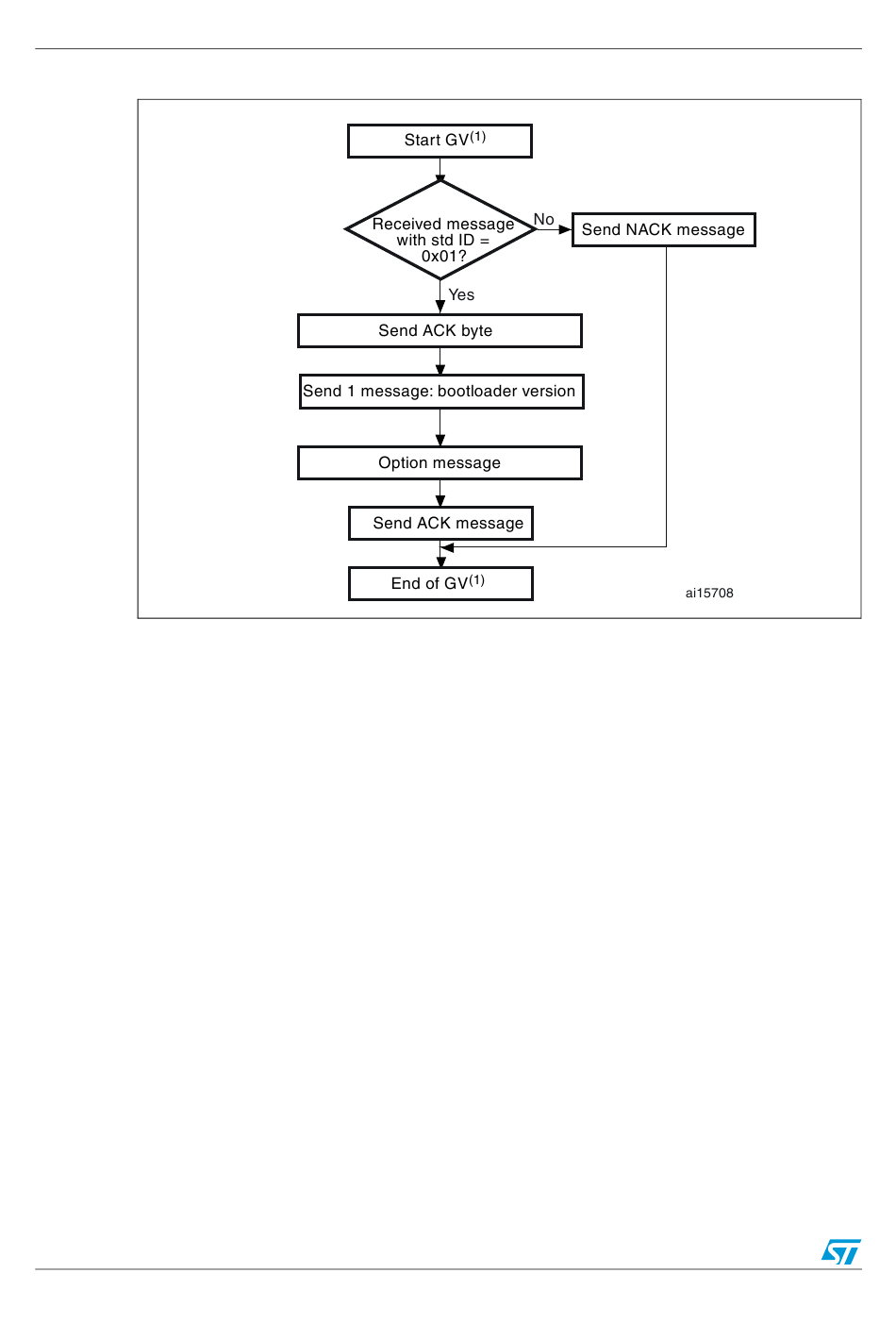

Figure 31. Get Version & Read Protection Status command: device side
1. GV = Get Version & Read Protection Status.
The STM32F105xx and STM32F107xx sends the messages as follows:
Message 1: Std ID = 0x01, DLC = 1, data = ACK
Message 2: Std ID = 0x01, DLC = 1, data[0] = bootloader version (0 < version <= 255):
Message 3: Option message 1: Std ID = 0x01, DLC = 2, data = 0x00(byte1 and byte2)
Message 4: Std ID = 0x01, DLC = 1, data = ACK
46/83
0x10 = Version 1.0
Doc ID 14156 Rev 1
AN2662
