User Manual
Installation
Industrial Ethernet Workgroup Switch
GRS105/GRS106
Installation GRS105/GRS106
Technical support
Release 01 11/2021
https://hirschmann-support.belden.com

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the HIRSCHMANN GRS105 and is the answer not in the manual?

Questions and answers

Related Manuals for Belden HIRSCHMANN GRS105

Summary of Contents for Belden HIRSCHMANN GRS105

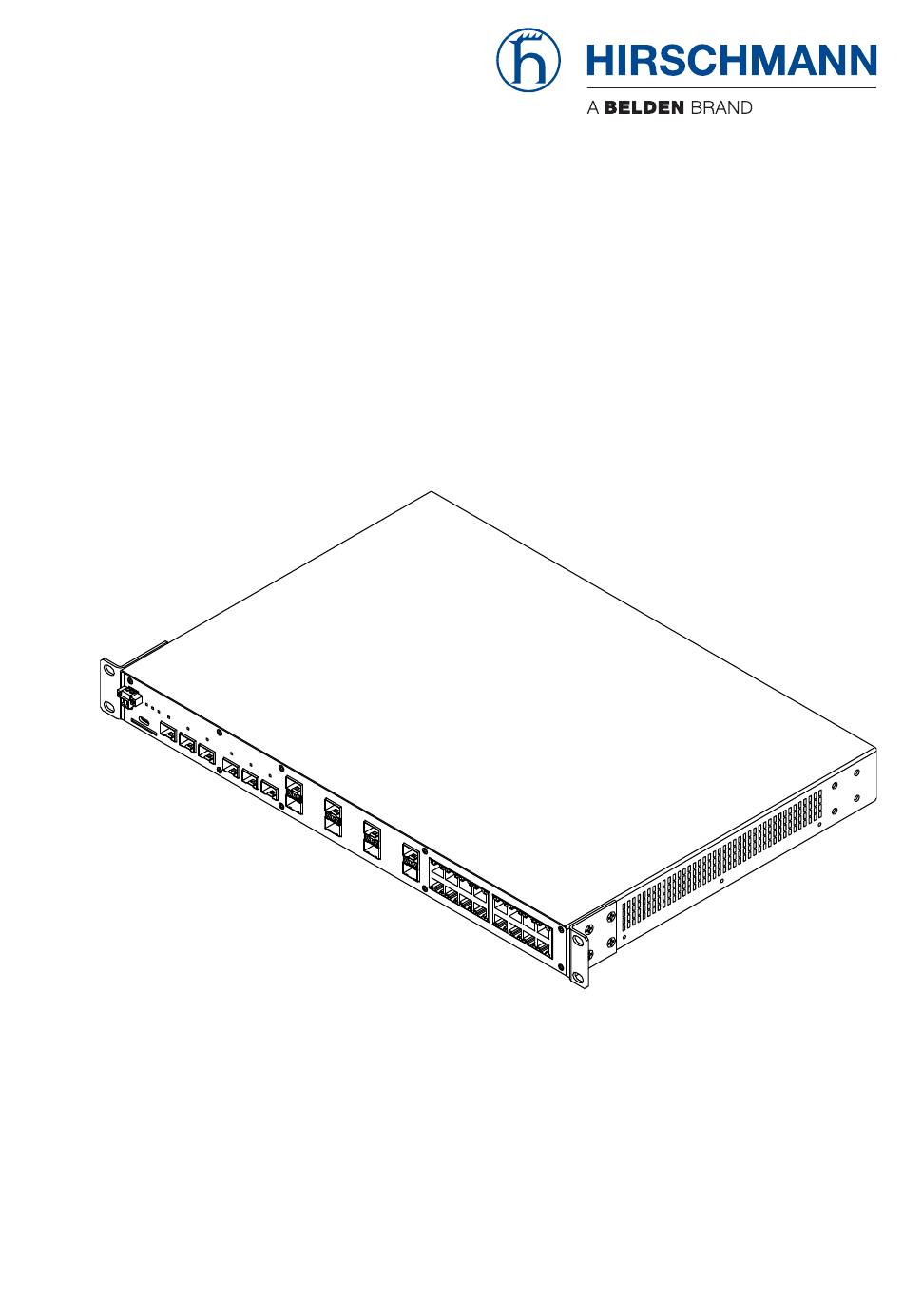

  • Page 1 User Manual Installation Industrial Ethernet Workgroup Switch GRS105/GRS106 Installation GRS105/GRS106 Technical support Release 01 11/2021 https://hirschmann-support.belden.com...
  • Page 2 The naming of copyrighted trademarks in this manual, even when not specially indicated, should not be taken to mean that these names may be considered as free in the sense of the trademark and tradename protection law and hence that they may be freely used by anyone. ©...

  • Page 3: Table Of Contents

    Contents About this manual General safety instructions Warning symbols Intended use National and international safety regulations Installation site requirements Qualification requirements for personnel Device casing Strain relief Shielded ground Electrical connections 2.9.1 Grounding the device 2.9.2 Requirements for connecting electrical wires 2.9.3 Requirements for connecting the supply voltage 2.9.4 Requirements for connecting the signal contact 2.10 LED or laser components...
  • Page 4 5.3.2 Front view device variant GRS106-6F8T16T... 5.3.3 Rear views 5.3.4 Port assignment Supply voltage 5.4.1 Supply voltage characteristic value G 5.4.2 Supply voltage characteristic value M 5.4.3 Supply voltage characteristic value L Ethernet ports 5.5.1 10/100/1000 Mbit/s twisted pair port 5.5.2 100/1000/2500 Mbit/s twisted pair port 5.5.3 1/2.5 Gbit/s F/O port 5.5.4 1/2.5/10 Gbit/s F/O port...
  • Page 5 Default settings First login (Password change) Maintenance and service Monitoring the ambient air temperature Monitoring the ambient humidity Disassembly 12.1 Removing the device 12.2 Removing an SFP transceiver (optional) 12.3 Removing the SD card (optional) Technical data 13.1 General technical data 13.2 Supply voltage 13.3 Power consumption/power output 13.4 Signal contact...
  • Page 6 Order numbers Accessories Underlying technical standards Further support Installation GRS105/GRS106 Release 01 11/2021...

  • Page 7: About This Manual

    About this manual The “Installation” user manual contains a device description, safety instructions, a description of the display, and the other information that you need to install the device. The Network Management Software Industrial HiVision provides you with options for smooth configuration and monitoring. You find further information on the Internet at the Hirschmann product pages: https://www.hirschmann.com/en/QR/INET-Industrial-HiVision Documentation mentioned in the “User Manual Installation”...

  • Page 8: General Safety Instructions

    General safety instructions Note: Read these instructions carefully, and familiarize yourself with the device before trying to install, operate, or maintain it. The following notes may appear throughout this documentation or on the device. These notes warn of potential hazards or call attention to information that clarifies or simplifies a procedure.

  • Page 9: Warning Symbols

    Warning symbols This is a general warning symbol. This symbol alerts you to potential personal injury hazards. Observe all safety notes that follow this symbol to avoid possible injury or death. If this symbol is displayed in addition to a safety instruction of the type “Danger”...

  • Page 10: Intended Use

    Intended use  Use the product only for the application cases described in the Hirschmann product information, including this manual.  Operate the product only according to the technical specifications. See “Technical data” on page 61.  Connect to the product only components suitable for the requirements of the specific application case.

  • Page 11: Qualification Requirements For Personnel

    Qualification requirements for personnel  Only allow qualified personnel to work on the device. Qualified personnel have the following characteristics:  Qualified personnel are properly trained. Training as well as practical knowledge and experience make up their qualifications. This is the prerequisite for grounding and labeling circuits, devices, and systems in accordance with current standards in safety technology.

  • Page 12: Strain Relief

    Strain relief Note: If the strain relief is insufficient, there is a potential risk of torsion, contact problems and creeping interruptions.  Relieve the connection points of cables and lines from mechanical stress.  Design strain reliefs in such a way that they help prevent any mechanical damage to cables, wires or conductors caused by external influences or their own weight.

  • Page 13: Requirements For Connecting The Supply Voltage

    2.9.3 Requirements for connecting the supply voltage The supply voltage is connected to the device casing through protective elements exclusively. The supply voltage is electrically isolated from the casing. Before connecting the supply voltage, always verify that the requirements listed are complied with. Prerequisites: All of the following requirements are complied with: ...

  • Page 14: Recycling Note

    2.11 Recycling note After usage, this device must be disposed of properly as electronic waste, in accordance with the current disposal regulations of your county, state, and country. Installation GRS105/GRS106 Release 01 11/2021...

  • Page 15: Approvals

    Approvals CE marking The labeled devices comply with the regulations contained in the following European directive(s): 2011/65/EU and 2015/863/EU (RoHS) Directive of the European Parliament and of the Council on the restriction of the use of certain hazardous substances in electrical and electronic equipment.

  • Page 16: Ukca Marking

    S.I. 2016 No. 1091 Electromagnetic Compatibility Regulations 2016 The UKCA conformity declaration will be available to the relevant authorities at the following address: Belden UK Ltd. 1 The Technology Centre, Station Road Framlingham, IP13 9EZ, United Kingdom Installation GRS105/GRS106 Release 01 11/2021...

  • Page 17: Fcc Note

    Supplier's Declaration of Conformity 47 CFR § 2.1077 Compliance Information Full Gigabit Family GRS105-.../GRS106-... U.S. Contact Information Belden – St. Louis 1 N. Brentwood Blvd. 15th Floor St. Louis, Missouri 63105, United States Phone: 314.854.8000 This device complies with part 15 of the FCC Rules. Operation is subject to...
  • Page 18  Electric circuit overloading: Observe the effects of electric circuit overloads on the overload current protection and the power supply cables when you connect devices to the power supply. Refer to the device parameters specified on the type plate of the device. ...

  • Page 19: Key

    The symbols used in this manual have the following meanings:  Listing Work step   Subheading Installation GRS105/GRS106 Release 01 11/2021...

  • Page 20: Description

    Description General device description The GRS105/GRS106 family provides you with a range of device variants. The device is designed for the special requirements of industrial automation. The device meets the relevant industry standards, provides very high operational reliability, even under extreme conditions, and also long-term reliability and flexibility.

  • Page 21: Device Name And Product Code

    Device name and product code The device name corresponds to the product code. The product code is made up of characteristics with defined positions. The characteristic values stand for specific product properties. Item Characteristic Characte- Description ristic value 1 ... 3 Product GREYHOUND Switch Series...

  • Page 22: Device Views

    Item Characteristic Characte- Description ristic value 28 ... 32 Software version XX.X. Current software version 08.9. Software version 08.9. Table 1: Device name and product code Device views 5.3.1 Front view device variant GRS106-6F8F16T... 1 2 3 4 Signal contact (2-pin terminal block) Status LED Power (P) Status LED Device status (Status) Status LED AutoConfiguration Adapter (ACA)

  • Page 23: Rear Views

    Port group II 8 × RJ45 socket for 100/1000/2500 Mbit/s Twisted pair connections Port group III 16 × RJ45 socket for 10/100/1000 Mbit/s Twisted pair connections MAC address field Oblong hole Mounting bracket Port group I 6 × SFP slot for 1/2.5/10 Gbit/s F/O connections Management interface (MGMT), USB Type-C socket SD card slot (ACA31) Table 3:...

  • Page 24: Port Assignment

    5.3.4 Port assignment 15 17 19 21 23 25 27 29 1 2 3 4 5 6 16 18 20 22 24 26 28 30 Port Description 1 ... 6 Port group I 7 ... 14 Port group II 15 ... 30 Port group III Table 7: Port assignment: Front view;...

  • Page 25: Supply Voltage

    Supply voltage Note: Observe the safety instructions in “Requirements for connecting electrical wires” on page The following supply voltage characteristic value combinations are available: G9, GG, GM, GL, M9, MM, ML, L9, LL. Supply voltage variant characteristic value G: Built-in C14 plug according to IEC 60320-1 Supply voltage variant characteristic value M: 3-pin terminal block Supply voltage variant characteristic value L: 2-pin terminal block Table 8:...

  • Page 26: Supply Voltage Characteristic Value G

    The supply voltage is electrically isolated from the casing. The power supply units are protected against polarity reversal. With a non-redundant supply of the supply voltage, the device reports the loss of a supply voltage. You can prevent this message by applying the supply voltage via both inputs, or by changing the configuration in the device management.

  • Page 27: Supply Voltage Characteristic Value L

    − Figure 2: Supply voltage with characteristic value M: 3-pin terminal block with screw lock Type of the voltages Specification of the Pin assignment that can be connected supply voltage DC voltage Rated voltage range Plus terminal of the supply voltage 110 V DC ...

  • Page 28: Ethernet Ports

    Ethernet ports You can connect end devices and other segments to the device ports using twisted pair cables, DAC cables or optical fibers (F/O). 5.5.1 10/100/1000 Mbit/s twisted pair port This port is an RJ45 socket. The 10/100/1000 Mbit/s twisted pair port allows you to connect network components according to the IEEE 802.3 10BASE-T/100BASE-TX/ 1000BASE-T standard.

  • Page 29: 1/2.5 Gbit/S F/O Port

    Function BI_DB+ BI_DB- BI_DA+ BI_DD+ BI_DD- BI_DA- BI_DC+ BI_DC- Table 13: Pin assignments of 100/1000/2500 Mbit/s twisted pair port, RJ45 socket, MDI-X mode 5.5.3 1/2.5 Gbit/s F/O port This port is an SFP slot. The port allows you to connect network components according to the IEEE 802.3 1000BASE-SX/1000BASE-LX standard.

  • Page 30: Management Interfaces

    Management interfaces 5.6.1 Signal contact Figure 4: Signal contact: 2-pin terminal block with screw lock, location on the device (front of the device) The signal contact is a potential-free relay contact. When the device is not connected to a power supply, the signal contact is open. The signal contact allows you to control external devices or monitor device functions.

  • Page 31: Management Interface Mgmt (External Management)

    5.6.2 Management interface MGMT (external management) Note: The MGMT interface exclusively supports CLI access via terminal emulation. Note: When connecting an external USB-C to USB-C cable to the Management interface MGMT, the rotational symmetry feature of the connectors is not supported. For this reason, connections may not be operational.
  • Page 32 Figure 6: Management interface MGMT: Location on the device (front side of the device) The interface allows you to connect your device temporarily via terminal emulation or network to an external device using an adapter cable. The adapter cable is available as an accessory (see on page 73 “Accessories”).

  • Page 33: Sd Card Interface

    Configuration, management and checking via adapter  cable You have the option to configure, manage and check your device via the interface using an adapter cable. You find detailed information in the software user documentation. You find the software user documentation as PDF files on the Internet at https://www.doc.hirschmann.com The adapter cable is available as an accessory...

  • Page 34: Display Elements

    The SD card interface allows you to connect the AutoConfiguration Adapter ACA31 storage medium. The storage medium ACA31 is used for saving/ loading the configuration data and diagnostic information, and for loading the software. On the front side of the device there are LEDs that inform you about the status of the interface.
  • Page 35 These LEDs provide information about conditions which affect the operation of the whole device. Display Color Activity Meaning Supply – none Supply voltage is too low (Power) voltage yellow lights up Device variants with redundant power supply: Supply voltage 1 or 2 is on green lights up Device variants with redundant power supply: Supply voltage 1 and 2 are on...

  • Page 36: Port Status

    5.7.2 Port status Figure 9: Port status: Location of the display elements of Port group I on the device (front side of the device) Installation GRS105/GRS106 Release 01 11/2021...
  • Page 37 Figure 10: Port status: Location of the display elements of Port group II on the device (front side of the device) Installation GRS105/GRS106 Release 01 11/2021...
  • Page 38 Figure 11: Port status: Location of the display elements of Port group III on the device (front side of the device) These LEDs provide port-related information. Display Color Activity Meaning Link status – none Device detects an invalid or missing link green lights up Device detects a valid link...

  • Page 39: Installation

    Installation The devices have been developed for practical application in a harsh industrial environment. On delivery, the device is ready for operation. Perform the following work steps to install the device: Checking the package contents  Installing the SD card (optional) ...

  • Page 40: Installing The Sd Card (Optional)

    Installing the SD card (optional) LOCK Figure 12: SD card interface: Location on the device (front side of the device) Perform the following work steps:  Deactivate the write protection on the SD card by pushing the write- protect lock towards the contacts of the card. ...

  • Page 41: Installing An Sfp Transceiver (Optional)

    Installing an SFP transceiver (optional) Prerequisites: Exclusively use Hirschmann SFP transceivers. See “Accessories” on page 73. Figure 13: Installing SFP transceivers: Installation sequence Perform the following work steps:  Take the SFP transceiver out of the transport packaging (1).  Remove the protection cap from the SFP transceiver (2). ...
  • Page 42 CAUTION OVERHEATING OF THE DEVICE Verify that all ventilation slots are clear when installing the device. Avoid touching the device while it is operating. Failure to follow these instructions can result in minor injury or equipment damage. Selecting the assembly location ...
  • Page 43  Use the screws to secure the mounting brackets on the device.  Additionally attach 2 brackets to the rear of the device as shown in figure You obtain the additional brackets as accessories. See “Accessories” on page 73.  Fasten the device by screwing the brackets to the flat surface. Completely screw the device to the flat surface using screws through each mounting hole.
  • Page 44 Figure 15: Mounting vertically on a flat surface: Optional mounting on a vertical flat surface. Mounting in a switch cabinet  Note: Install the device in the 19" switch cabinet using sliding or mounting rails. This provides a more stable position of your device in environments subject to vibration.
  • Page 45 Figure 16: Mounting in a switch cabinet: Mounting brackets with oblong holes  Ensure adequate ventilation. If necessary, install an additional fan in the switch cabinet to prevent the device from overheating.  Measure the depth of the 19" switch cabinet so that all the lines to be connected can be fed in easily.
  • Page 46 Figure 17: Mounting in a switch cabinet: Assembly in a switch cabinet with sliding/ mounting rails 1 - device 2 - sliding/mounting rail 3 - 19" switch cabinet Perform the following work steps:  Assemble the sliding or mounting rails in the 19" switch cabinet as specified by the manufacturer.

  • Page 47: Grounding The Device

    Grounding the device WARNING ELECTRIC SHOCK Ground the device on the power supply unit with a grounding screw. Failure to follow these instructions can result in death, serious injury, or equipment damage. The power supply variants with characteristic value M9, MM, ML, G9, GG, and GL have a connection for protective grounding.

  • Page 48: Connecting The Terminal Blocks

    Connecting the terminal blocks WARNING ELECTRIC SHOCK Connect only a supply voltage that corresponds to the type plate of your device. Failure to follow these instructions can result in death, serious injury, or equipment damage. WARNING ELECTRIC SHOCK Never insert pointed objects (narrow screwdrivers, wires, etc.) into the device or into the connection terminals for electric conductors.

  • Page 49: Supply Voltage Characteristic Value L

    Type of the voltages Specification of the Pin assignment that can be connected supply voltage DC voltage Rated voltage range Plus terminal of the supply voltage 110 V DC ... 250 V DC Voltage range incl. Minus terminal of the supply voltage maximum tolerances 88 V DC ...

  • Page 50: Signal Contact

    Type of the voltages Specification of the supply Pin assignment that can be voltage connected DC voltage Rated voltage range Plus terminal of the supply voltage 24 V DC ... 48 V DC Minus terminal of the supply voltage Voltage range incl. maximum tolerances 18 V DC ...

  • Page 51: Filling Out The Inscription Label

    Note: Verify that you connect only optical ports with the same optical transmission properties with each other. Filling out the inscription label The information field for the MAC address on the front of the device helps you to identify your device. Installation GRS105/GRS106 Release 01 11/2021...

  • Page 52: Operating The Device

    Operating the device WARNING ELECTRIC SHOCK Connect only a supply voltage that corresponds to the type plate of your device. Failure to follow these instructions can result in death, serious injury, or equipment damage. Note: Note the safety instructions in “Requirements for connecting electrical wires”...

  • Page 53: Making Basic Settings

    Making basic settings Note: 2 or more devices configured with the same IP address can cause unpredictable operation of your network. Install and maintain a process that assigns a unique IP address to every device in the network. When you install the device for the first time enter the IP parameters. The device provides the following options for entering the IP parameters during the first installation: ...

  • Page 54: First Login (Password Change)

     When you log on to the device with the Command Line Interface, then the device prompts you to confirm your new password.  Log on to the device again with your new password. For further information see: https://hirschmann-support.belden.com/en/kb/required-password-change- new-procedure-for-first-time-login Installation GRS105/GRS106 Release 01 11/2021...

  • Page 55: Maintenance And Service

    Maintenance and service  When designing this device, Hirschmann largely avoided using high-wear parts. The parts subject to wear and tear are dimensioned to last longer than the lifetime of the product when it is operated normally. Operate this device according to the specifications. See “Technical data”...

  • Page 56: 10 Monitoring The Ambient Air Temperature

    10 Monitoring the ambient air temperature Exclusively operate the device within the specified ambient air temperature range. See “General technical data” on page 61. The ambient air temperature is the temperature of the air at a distance of 5 cm (2 in) from the device. It depends on the installation conditions of the device, for example the distance from other devices or other objects, and the output of neighboring devices.

  • Page 57: 11 Monitoring The Ambient Humidity

    11 Monitoring the ambient humidity Exclusively operate the device within the specified ambient humidity range. See “General technical data” on page 61. The humidity in the device is measured by an internal humidity sensor. The measurements of the sensor may vary depending on the installation conditions of the device, for example the distance from other devices or other objects, and the thermal output of neighboring devices.

  • Page 58: 12 Disassembly

    12 Disassembly 12.1 Removing the device  Disconnect the data cables.  Disable the supply voltage.  Disconnect the supply voltage.  Remove any terminal blocks and power supply cables from the device. Figure 20: Removing the device: Mounting brackets with oblong holes ...

  • Page 59: Removing An Sfp Transceiver (Optional)

    12.2 Removing an SFP transceiver (optional) Figure 21: Removing an SFP transceiver: Removal sequence Perform the following work steps:  Open the locking mechanism of the SFP transceiver (1).  Pull the SFP transceiver out of the slot via the open locking mechanism (2).

  • Page 60: Removing The Sd Card (Optional)

    12.3 Removing the SD card (optional) Figure 22: SD card interface: Location on the device (front side of the device) Perform the following work steps:  Pull the SD card out of the SD card slot. Installation GRS105/GRS106 Release 01 11/2021...

  • Page 61: 13 Technical Data

    13 Technical data 13.1 General technical data Dimensions “Dimension drawings” on page Weight GRS105/GRS106 with 4.7 kg (10.36 lb) 1 Power supply unit GRS105/GRS106 with 5.1 kg (11.24 lb) 2 Power supply units Pollution degree Protection classes Laser protection Class 1 according to IEC 60825-1 Degree of protection IP30 Ground connection Screw type...

  • Page 62: Power Consumption/Power Output

    Power supply unit with Nominal voltage 110 V DC ... 250 V DC supply voltage Voltage range incl. 88 V DC ... 288 V DC characteristic value M maximum tolerances Connection type 3-pin terminal block Tightening torque 0.5 Nm (4.4 lb-in) min.

  • Page 63: Climatic Conditions During Operation

    Signal contact Connection type 2-pin terminal block Tightening torque 0.34 Nm (3 lb-in) Minimum conductor diameter 0.08 mm² (AWG28) Maximum conductor diameter 2.5 mm² (AWG12) Table 19: Signal contact 13.5 Climatic conditions during operation Climatic conditions during operation Ambient air temperature -10 °C ...

  • Page 64: Dimension Drawings

    13.7 Dimension drawings 0.13 462,6 0.13 inch 18.21 19,3 19,3 17.5 0.76 0.76 482,6 1.46 Figure 23: Dimension drawings: Dimensions for GRS105/GRS106 device variants (Example: GRS106-6F8F16TSGG...) Installation GRS105/GRS106 Release 01 11/2021...

  • Page 65: 14 Emc And Immunity

    14 EMC and immunity EMC interference emission Standard applications Railway applications (trackside) EN 55032 Class A Fulfilled Fulfilled FCC 47 CFR Part 15 Class A Fulfilled Fulfilled EN 61000-6-4 Fulfilled Fulfilled Table 22: EMC and immunity: EMC interference emission EMC interference immunity Standard applications Railway applications (trackside) Electrostatic discharge...
  • Page 66 Immunity Standard applications Railway applications (trackside) IEC 60068-2-6, test Fc Vibration 5 Hz ... 8.4 Hz with 0.14 in (3.5 mm) amplitude — 8.4 Hz ... 150 Hz with 1 g — IEC 60068-2-27, test Ea Shock 15 g at 11 ms —...

  • Page 67: 15 Network Range

    15 Network range Note: The line lengths specified for the transceivers apply for the respective fiber data (fiber attenuation and Bandwidth Length Product (BLP)/ Dispersion). 15.1 10/100/1000 Mbit/s twisted pair port 10/100/1000 Mbit/s twisted pair port Length of a twisted pair segment max.

  • Page 68: Gigabit Ethernet Sfp Transceiver

    15.3 Gigabit Ethernet SFP transceiver Product code Mode Wave length Fiber System Example for F/O line Fiber attenuation BLP/Dispersion attenuation length M-SFP-SX/LC... 850 nm 50/125 µm 0 dB ... 7.5 dB 0 km ... 0.55 km 3.0 dB/km 400 MHz×km (0 mi ...

  • Page 69: Bidirectional Gigabit Ethernet Sfp Transceiver

    Product code Mode Wave length Fiber System Example for F/O line Fiber attenuation BLP/Dispersion attenuation length SFP-GIG-LX/LC... 1310 nm 50/125 µm 0 dB ... 10.5 dB 0 km ... 0.55 km 1.0 dB/km 800 MHz×km (0 mi ... 0.34 mi) SFP-GIG-LX/LC...
  • Page 70 Product code Mode Wave length Wave length Fiber System Example for F/O line Fiber BLP/Dispersion attenuation length attenuation M-SFP-BIDI Type 1590 nm 1490 nm 9/125 µm 5 dB ... 24 dB 23 km ... 80 km 0.25 dB/km 19 ps/(nm×km) B LH/LC EEC (14.29 mi ...

  • Page 71: 2.5 Gigabit Ethernet Sfp Transceiver

    15.5 2.5 Gigabit Ethernet SFP transceiver Product code Mode Wave length Fiber System Example for F/O Fiber BLP/Dispersion attenuation line length attenuation M-SFP-2.5-MM/LC EEC 850 nm 50/125 µm 0 dB ... 4 dB 0.55 km (0.34 mi) 3.5 dB/km 2000 MHz×km (OM3) M-SFP-2.5-MM/LC EEC 850 nm...

  • Page 72: Dac Cables

    Product code Mode Wave length Fiber System Example for F/O line Fiber BLP/dispersion attenuation length attenuation M-SFP-10-SR/LC EEC MM 850 nm 50/125 µm 0 dB ... 8.1 dB 0.4 km (0.25 mi) 3 dB/km 4700 MHz×km (OM4) M-SFP-10-SR/LC EEC MM 850 nm 62.5/125 µm 0 dB ...

  • Page 73: 16 Scope Of Delivery

    16 Scope of delivery Amount Article 1 × GRS105/GRS106 device 1 × 2-pin terminal block for signal contact 1 × General safety instructions and information sheet 2 × Mounting bracket (pre-mounted) Exclusively for devices with supply voltage 3-pin terminal block for power supply characteristic value M: 1 ×...
  • Page 74 Gigabit Ethernet SFP transceiver Order number M-SFP-SX/LC 943 014-001 M-SFP-SX/LC EEC 943 896-001 M-SFP-MX/LC EEC 942 108-001 M-SFP-LX/LC 943 015-001 M-SFP-LX/LC EEC 943 897-001 M-SFP-LX+/LC 942 023-001 M-SFP-LX+/ LC EEC 942 024-001 M-SFP-LH/LC 943 042-001 M-SFP-LH/LC EEC 943 898-001 M-SFP-LH+/LC 943 049-001 M-SFP-LH+/LC EEC 942 119-001...
  • Page 75 10 Gigabit Ethernet SFP+ transceiver Order number (only applies to the basic device) M-SFP-10-ZR/LC 942 213-001 SFP-10-DAC-05m (Direct Attach Copper) 942 280-001 SFP-10-DAC-1m (Direct Attach Copper) 942 280-002 SFP-10-DAC-2m (Direct Attach Copper) 942 280-003 SFP-10-DAC-4m (Direct Attach Copper) 942 280-004 Other accessories Order number AutoConfiguration Adapter ACA31...
  • Page 76 19 Underlying technical standards Name EN 55032 Electromagnetic compatibility of multimedia equipment – Emission Requirements FCC 47 CFR Part 15 Code of Federal Regulations IEC/EN 62368-1 Equipment for audio/video, information and communication technology - Part 1: safety requirements IEEE 802.1D MAC Bridges (switching function) IEEE 802.1Q Virtual LANs (VLANs, MRP, Spanning Tree)
  • Page 77 You find the addresses of our partners on the Internet at https://www.hirschmann.com. A list of local telephone numbers and email addresses for technical support directly from Hirschmann is available at https://hirschmann-support.belden.com. This site also includes a free of charge knowledge base and a software download section. Customer Innovation Center...
