Run and Test
After code compilation and flashing the device, perform the following steps:
1. Connect the two pins P02.1 (PWM signal) and P02.0 (CC60 input) to each other

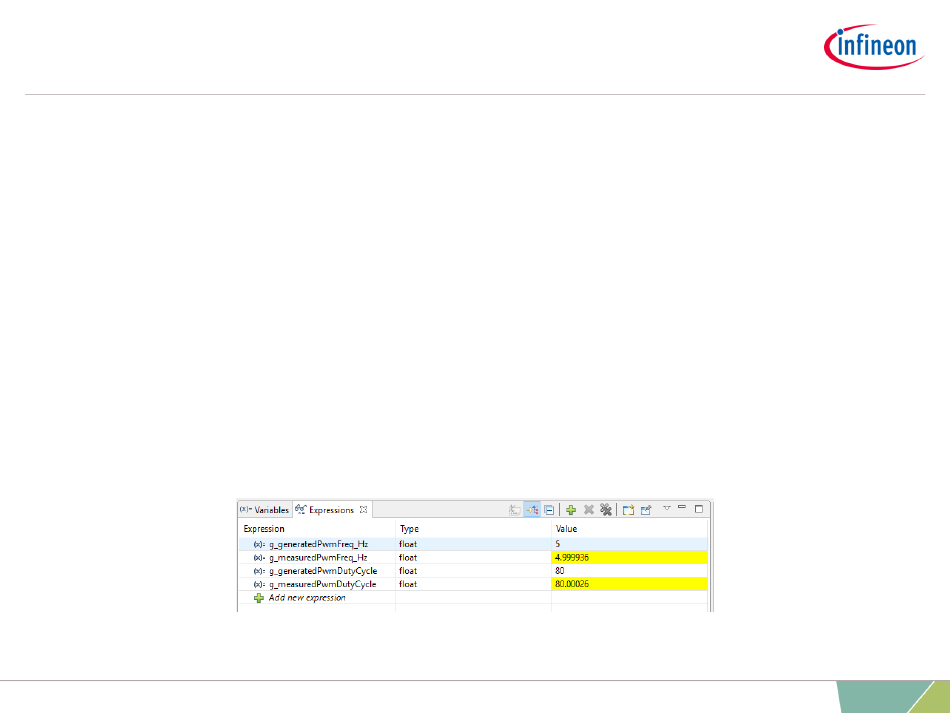

2. Check the parameter g_measuredPwmFreq_Hz in the debugger (the debug
session should be suspended previously). Its value should be similar to the
parameter g_generatedPwmFreq_Hz
3. Change the parameter g_generatedPwmFreq_Hz and check if
g_measuredPwmFreq_Hz changes accordingly
4. Check the parameter g_measuredPwmDutyCycle in the debugger (the debug
session should be suspended previously). Its value should be similar to the
parameter g_generatedPwmDutyCycle
5. Change the parameter g_generatedDutyCycle and check if
g_measuredDutyCycle changes accordingly
