Getting Started
EIA-232 cables are available in the following lengths: 10 feet (BC22F-10), 25 feet
(BC22F-25), or 50 feet (BC22F-50). The peripheral you are using may require a null-
modem extension cable. See the peripheral documentation or contact your Digital sales
representative for information on the correct null-modem cable to use.
________________________ Caution ___________________________
This modem control port has default support for non-standard 19.8 Kbaud. To
change to 19.2 Kbaud, user must remove Jumper on J26 on the CPU mother
board. Refer to Chapter 3, Figure 3-14.
___________________________________________________________

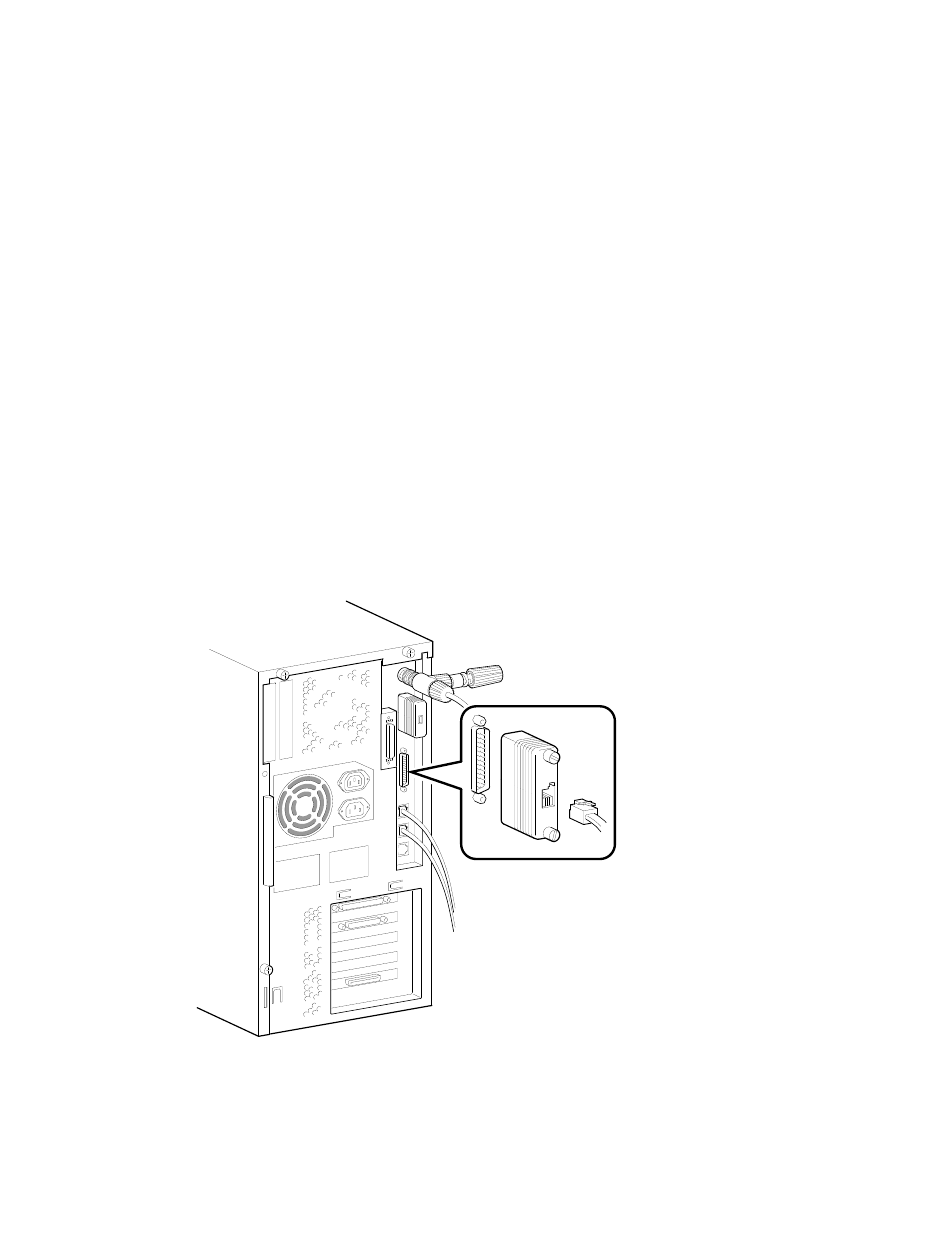

Figure 2-14 Connecting an EIA Connector to the Asynchronous Port

2-18 MicroVAX 3100 Models 88/98 User Information
MLO-013618
