DC-202 xDSL/Cable Broadband router

Static Routing - Example

For the DC-202's Routing Table

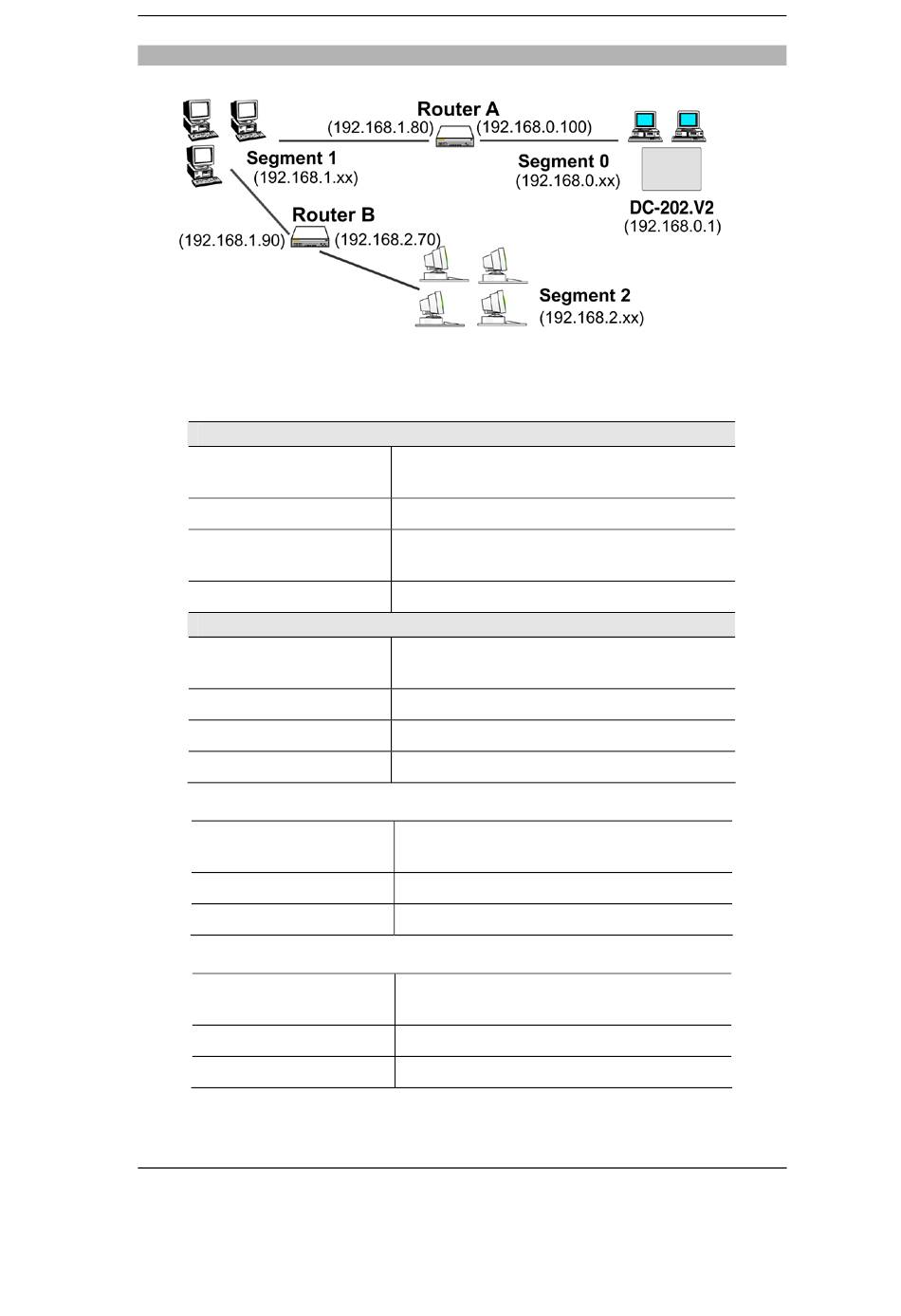

For the LAN shown above, with 2 routers and 3 LAN segments, the DC-202
requires 2 entries as follows.
Entry 1 (Segment 1)
Destination IP Ad-
dress
Network Mask
Gateway IP Address
Metric
Entry 2 (Segment 2)
Destination IP Ad-
dress
Network Mask
Gateway IP Address
Metric
For Router A's Default Route
Destination IP Ad-
dress
Network Mask
Gateway IP Address
For Router B's Default Route
Destination IP Ad-
dress
Network Mask
Gateway IP Address
192.168.1.0
255.255.255.0 (Standard Class C)
192.168.0.100 (DC-202's local
Router)
2
192.168.2.0
255.255.255.0 (Standard Class C)
192.168.0.100
3
0.0.0.0
0.0.0.0
192.168.0.1 (DC-202's IP Address)
0.0.0.0
0.0.0.0
192.168.1.80 (DC-202's local router)
