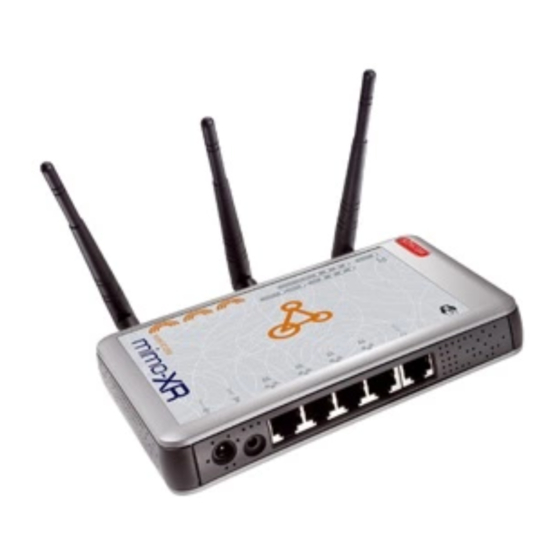

- Page 1 Wireless Network Broadband Router MiMoXR WL-153 Full manual...
- Page 2 Copyright The contents of this publication may not be reproduced in any part or as a whole, stored, transcribed in an information retrieval system, translated into any language, or transmitted in any form or by any means, mechanical, magnetic, electronic, optical, photocopying, manual, or otherwise, without the prior written permission.
-
Page 3: Table Of Contents
Table of Contents CHAPTER 1 INTRODUCTION ................5 FEATURES....................5 MINIMUM REQUIREMENTS ................6 PACKAGE CONTENT ..................6 CHAPTER 2 HARDWARE INSTALLATION ............. 7 2.1 PANEL LAYOUT ....................7 2.1.1 F ................F RONT LADWIJZER NIET GEDEFINIEERD 2.1.2. R ..............................8 ANEL 2.2 PROCEDURE FOR HARDWARE INSTALLATION.......... - Page 4 6.3.1 WEP E ............................26 NCRYPTION 6.3.2 802.1 ............................... 28 X ONLY 6.3.3 WPA P ..........................29 SHARED KEY 6.3.4 WPA R .............................. 29 ADIUS 6.4 ACCESS CONTROL ..................31 CHAPTER 7 FIREWALL SETTINGS ..............32 7.1 DMZ ......................32 7.2 DOS ATTACK ....................
-
Page 5: Chapter 1 Introduction
Chapter 1 Introduction Congratulations on purchasing this Wireless Broadband Router. This Wireless Broadband Router is a cost-effective IP Sharing Router that enables multiple users to share the Internet through an ADSL or cable modem. Simply configure your Internet connection settings in the Wireless Broadband Router and plug your PC to the LAN port and you're ready to share files and access the Internet. -
Page 6: Minimum Requirements
Minimum Requirements • One External xDSL (ADSL) or Cable modem with an Ethernet port (RJ-45) • Network Interface Card (NIC) for each Personal Computer (PC) • PCs with a Web-Browser (Internet Explorer 4.0 or higher, or Netscape Navigator 4.7 or h igher) Package Content •... -
Page 7: Chapter 2 Hardware Installation
Chapter 2 Hardware Installation 2.1 Panel Layout LEDs: Function Color Status Description POWER Power indication Green Power is being applied to this product. The corresponding WAN or LAN port is linked. Link/ Link Status Green Modem The corresponding WAN or LAN port is Blinking sending or receiving data. -
Page 8: Rear Panel
2.1.2. Rear Panel Ports: Port Description POWER Power inlet Modem the port where you will connect your cable (or DSL) modem or Ethernet router. Port 1-4 the ports where you will connect networked computers and other devices. To reset system settings to factory defaults, press the reset button for at least 4 seconds. -
Page 9: Procedure For Hardware Installation
2.2 Procedure for Hardware Installation 2.2.1 Decide where to place your Wireless Broadband Router ou can place your Wireless Broadband Router on a desk or other flat surface, or you can ount it on a wall. For optimal performance, place your Wireless Broadband Router in the enter of your office (or your home) in a location that is away from any potential source of terference, such as a metal wall or microwave oven. -
Page 10: Chapter 3 Network Settings And Software Installation
Chapter 3 Network Settings and Software Installation To use this product correctly, you have to properly configure the network settings of your computers and install the attached setup program into your MS Windows platform (Windows 95/98/NT/2000). 3.1 Make The Correct Network Settings for your PC The default IP address of this product is 192.168.0.1, and the default subnet mask is 255.255.255.0. - Page 11 Is the Ethernet cable correctly connected between this product and your computer? Tip: The LAN LED of this product and the link LED of network card on your computer must be lighted. Is the TCP/IP environment of your computers properly configured? Tip: If the IP address of this product is 192.168.0.1, the IP address of your computer must be 192.168.0.X and default gateway must be 192.168.0.1.
-
Page 12: Chapter 4 Configuring Wireless Broadband Router
Chapter 4 Configuring Wireless Broadband Router This product provides Web based configuration scheme, that is, configuring by your Web browser, such as Netscape Communicator or Internet Explorer. This approach can be adopted in any MS Windows, Macintosh or UNIX based platforms. -
Page 13: Start-Up And Log In
4.1 Start-up and Log in Activate your browser, and disable the proxy or add the IP address of this product into the exceptions. Then, type this product’s IP address in the Location (for Netscape) or Address (for IE) field and press ENTER. For example: http://192.168.0.1. After the connection is established, you will see the web user interface of this product. -
Page 14: Status
4.2 Status The Status section allows you to monitor the current status of your router. You can use the Status page to monitor: the connection status of the Broadband router's WAN/LAN interfaces, the current firmware and hardware version numbers, any illegal attempts to access your network, and information on all DHCP client PCs currently connected to your network. -
Page 15: Lan Settings
4.2.1 LAN Settings The LAN Port screen below allows you to specify a private IP address for your router’s LAN ports as well as a subnet mask for your LAN segment. Parameters Default Description IP address 192.168.0.1 This is the router’s LAN port IP address (Your LAN clients default gateway IP address) IP Subnet Mask 255.255.255.0... - Page 16 IP Address Pool You can select a particular IP address range for your DHCP server to issue IP addresses to your LAN Clients. Note: By default the IP range is from: Start IP 192.168.0.100 to End IP 192.168.0.199. If you want your PC to have a static/fixed IP address then you’ll have to choose an IP address outside this IP address Pool Domain Name...
-
Page 17: Device Status
4.2.2 Device Status View the Broadband router’s current configuration settings. The Device Status displays the configuration settings you’ve configured in the Wizard/Basic Settings/Wireless Settings section. Parameters Description Device Status This page displays the Broadband router LAN port’s current LAN IP Address and Subnet Mask. It also shows whether the DHCP Server function is enabled/disabled.. -
Page 18: Internet Status
4.2.3 Internet Status View the Broadband router’s current Internet connection status and other related information Parameters Description Internet Connection This page displays whether the WAN port is connected to a Cable/DSL connection. It also displays the router’s WAN port: WAN IP address, Subnet Mask, and ISP Gateway as well as the Primary DNS and Secondary DNS being used. -
Page 19: Dhcp Client Status
4.2.4 DHCP Client status View your LAN client's information that is currently linked to the Broadband router's DHCP server. Parameters Description Active DHCP Client This page shows all DHCP clients (LAN PCs) currently connected to your network. The “Active DHCP Client Table” displays the IP address and the MAC address and Time Expired of each LAN Client. -
Page 20: System Log
4.2.5 System Log View the operation log of the system. Parameters Description System Log This page shows the current system log of the Broadband router. It displays any event occurred after system start up. At the bottom of the page, the system log can be saved <Save> to a local file for further processing or the system log can be cleared <Clear>... -
Page 21: Statistics
4.2.6 Statistics View the statistics of packets sent and received on WAN, LAN and Wireless LAN. Parameters Description Statistics Shows the counters of packets sent and received on WAN, LAN and Wireless LAN. -
Page 22: Run Setup Wizard
5. Run Setup Wizard • Click Wizard to configure the router. • The Setup wizard will now be displayed; check that the modem is connected and click • Select your country from the Country list. • From Service, select your internet provider. Click Next. - Page 23 • Depending on the chosen provider, you may need to enter your user name and password, MAC address or hostname in the following window. After you have entered the correct information, click Next. • Click APPLY to complete the configuration. •...
-
Page 24: Chapter 6 Wireless Settings
This is the name of the wireless LAN. All the devices in the same wireless LAN should have the same ESSID. Default ESSID for this device is: Sitecom Channel Number The channel used by the wireless LAN. All devices in the same wireless LAN should use the same channel. -
Page 25: Advanced Wireless Settings
together here when your AP is in AP Bridge modes. 6.2 Advanced Wireless Settings You can set advanced wireless LAN parameters of this router. The parameters include Authentication Type, Fragment Threshold, RTS Threshold, Beacon Interval, Preamble Type. You should not change these parameters unless you know what effect the changes will have on this router. -
Page 26: Wireless Security Options
access point will use the highest possible selected transmission rate to transmit the data packets. Preamble Type The “Long Preamble” can provide better wireless LAN compatibility while the “Short P reamble” can provide better wireless LAN performance. Broadcast ESSID If you enable “Broadcast ESSID”, every wireless station located within the coverage of this access point can discover this access point easily. - Page 27 Parameters Description Key Length You can select the WEP key length for encryption, 64-bit or 128-bit. Larger WEP key length will provide higher level of security, but the throughput will be lower. Key Format You may select to select ASCII Characters (alphanumeric format) or Hexadecimal Digits (in the "A-F", "a-f"...
-
Page 28: Only
6.3.2 802.1x only IEEE 802.1x is an authentication protocol. Every user must use a valid account to login to this Access Point before accessing the wireless LAN. The authentication is processed by a RADIUS server. This mode only authenticates users by IEEE 802.1x, but it does not encrypt the data during communication. -
Page 29: Wpa Pre-Shared Key
6.3.3 WPA Pre-shared key Wi-Fi Protected Access (WPA) is an advanced security standard. You can use a pre-shared key to authenticate wireless stations and encrypt data during communication. It uses TKIP or CCMP(AES) to change the encryption key frequently. So the encryption key is not easy to be broken by hackers. - Page 30 RADIUS server to authenticate wireless stations and provide the session key to encrypt data during communication. It uses TKIP or CCMP(AES) to change the encryption key frequently. This can improve security very much. Parameters Description WPA(TKIP) TKIP can change the encryption key frequently to enhance the wireless LAN security.
-
Page 31: Access Control
6.4 Access Control This wireless router provides MAC Address Control, which prevents the unauthorized MAC Addresses from accessing your wireless network. Parameters Description Enable wireless access control Enable wireless access control Add MAC address into the list Fill in the "MAC Address" and "Comment" of the wireless station to be added and then click "Add". -
Page 32: Chapter 7 Firewall Settings
Chapter 7 Firewall Settings The Broadband router provides extensive firewall protection by restricting connection parameters, thus limiting the risk of hacker attack, and defending against a wide array of common Internet attacks. However, for applications that require unrestricted access to the Internet, you can configure a specific client/server as a Demilitarized Zone (DMZ). -
Page 33: Dos Attack
Public IP Address The IP address of the WAN port or any other Public IP addresses given to you by your ISP Client PC IP Address Input the IP address of a particular host in your LAN that will receive all the packets originally going to the WAN port/Public IP address above Note: You need to give your LAN PC clients a fixed/static IP address for DMZ to work properly. -
Page 34: Access Control
Click <Apply> at the bottom of the screen to save the above configurations. You can now configure other advance sections or start using the router (with the advance settings in place) 7.3 Access Control If you want to restrict users from accessing certain Internet applications/services (e.g. Internet websites, email, FTP etc.), then this is the place to set that configuration. -
Page 35: Url Block
Add PC Fill in “Client PC MAC Address” and “Comment” of the PC that is allowed to access the Internet, and then click “Add”. If you find any typo before adding it and want to retype again, just click "Reset" and the fields will be cleared. Remove PC If you want to remove some PC from the "MAC Filtering Table", select the PC you want to remove in the table and then click... - Page 36 If you find any typo before adding it and want to retype again, just click "Reset" and the field will be cleared. Remove URL Keyword If you want to remove some URL keyword from the "Current URL Blocking Table", select the URL keyword you want to remove in the table and then click "Delete Selected".
-
Page 37: Chapter 8 Advanced Settings
Chapter 8 Advanced Settings Network Address Translation (NAT) allows multiple users at your local site to access the Internet through a single Public IP Address or multiple Public IP Addresses. NAT provides Firewall protection from hacker attacks and has the flexibility to allow you to map Private IP Addresses to Public IP Addresses for key services such as Websites and FTP. -
Page 38: Virtual Server
forward “TCP” or “UDP” packets only or select “both” to forward both “TCP” and “UDP” packets. Port Range The range of ports to be forward to the private IP. Comment The description of this setting. Add Port Forwarding Fill in the "Private IP", “Type”, “Port Range” and "Comment" of the setting to be added and then click "Add". - Page 39 Parameters Description Enable Virtual Server Enable Virtual Server. Private IP This is the LAN client/host IP address that the Public Port number packet will be sent to. Note: You need to give your LAN PC clients a fixed/static IP address for Virtual Server to work properly.
-
Page 40: Special Applications
8.3 Special Applications Some applications require multiple connections, such as Internet games, video conferencing, Internet telephony and others. In this section you can configure the router to support multiple connections for these types of applications. Parameters Description Enable Trigger Port Enable the Special Application function. - Page 41 Popular applications This section lists the more popular applications that require multiple connections. Select an application from the Popular Applications selection. Once you have selected an application, select a location (1-10) in the Copy to selection box and then click the Copy to button.
-
Page 42: Alg Settings
8.4 ALG Settings You can select applications that need “Application Layer Gateway” to support. Parameters Description Enable You can select to enable “Application Layer Gateway”, then the router will let that application correctly pass though the NAT gateway. 8.5 UpnP Settings With UPnP, all PCs in you Intranet will discover this router automatically. -
Page 43: Qos
Parameters Default Description UPnP Feature Disable You can Enable or Disable UPnP feature here. After you enable the UPnP feature, all client systems that support UPnP, like Windows XP, can discover this router automatically and access the Internet through this router without any configuration. - Page 44 Parameters Description Enable/Disable QoS You can check “Enable QoS” to enable QoS function for the WAN port. You also can uncheck “Enable QoS” to disable QoS function for the WAN port. Add a QoS rule into the table Click “Add” then you will enter a form of the QoS rule. Click “Apply”...
- Page 45 Rule Name The name of this rule. Bandwidth You can assign the download or upload bandwidth by the unit of Kbps (1024 bit per second). You can limit the maximum bandwidth consumed by this rule by selecting “Maximum”. You also can reserve enough bandwidth for this rule by selecting “Guarantee”.
-
Page 46: Chapter 9 Tools
Chapter 9 Tools You can change the password required to log into the broadband router's system web-based management. By default, there is no password. So please assign a password to the Administrator as soon as possible, and store it in a safe place. Passwords can contain 0 to 12 alphanumeric characters, and are case sensitive. -
Page 47: Timezone
9.1 Timezone The Time Zone allows your router to reference or base its time on the settings configured here, which will affect functions such as Log entries and Firewall settings. Parameter Description Set Time Zone Select the time zone of the country you are currently in. The router will set its time based on your selection. -
Page 48: Remote Management
9.2 Remote Management The remote management function allows you to designate a host in the Internet the ability to configure the Broadband router from a remote site. Enter the designated host IP Address in the Host IP Address field. Parameters Description Host Address This is the IP address of the... -
Page 49: Firmware Upgrade
Port The port number of remote management web interface. Enabled Select “Enabled” to enable the remote management function. Click <Apply> at the bottom of the screen to save the above configurations. You can now configure other advance sections or start using the router (with the advance settings in place) 9.3 Firmware Upgrade This page allows you to upgrade the router’s firmware. -
Page 50: Back-Up Settings
the upgrade process. (You may have to wait a few minutes for the upgrade to complete). Once the upgrade is complete you can start using the router. 9.4 Back-up Settings The Backup screen allows you to save (Backup) the router’s current configuration setting. Saving the configuration settings provides an added protection and convenience should problems occur with the router and you have to reset to factory default. -
Page 51: Reset (Restart) The Router
9.5 Reset (restart) the router You can reset the router’s system should any problem exist. The reset function essentially Re-boots your router’s system. Note: Your settings will NOT be changed by the system-reboot. 9.6 DDNS DDNS allows you to map the static domain name to a dynamic IP address. You must get an account, password and your static domain name from the DDNS service providers. - Page 52 Appendix A How to Manually find your PC’s IP and MAC address In Window’s open the Command Prompt program 2) Type Ipconfig /all and <enter> • Your PC’s IP address is the one entitled IP address (e.g. 192.168.1.77) • The router’s IP address is the one entitled Default Gateway (e.g. 192.168.1.254) •...
-
Page 53: Glossary
Glossary Default Gateway (Router): Every non-router IP device needs to configure a default gateway’s IP address. When the device sends out an IP packet, if the destination is not on the same network, the device has to send the packet to its default gateway, which will then send it out towards the destination. - Page 54 When both are represented side by side in their binary forms, all bits in the IP address that correspond to 1’s in the network mask become part of the IP network address, and the remaining bits correspond to the host ID. For example, if the IP address for a device is, in its binary form, 11011001.10110000.10010000.00000111, and if its network mask is, 11111111.11111111.11110000.00000000...
- Page 55 SMTP POP3 H.323 1720 SNMP SNMP Trap HTTP PPTP 1723 PC Anywhere TCP 5631 PC Anywhere UDP 5632 PPPoE: Point-to-Point Protocol over Ethernet. Point-to-Point Protocol is a secure data transmission method originally created for dial-up connections; PPPoE is for Ethernet connections.
- Page 56 WAN: Wide Area Network. A network that connects computers located in geographically separate areas (e.g. different buildings, cities, countries). The Internet is a wide area network. Web-based management Graphical User Interface (GUI): Many devices support a graphical user interface that is based on the web browser. This means the user can use the familiar Netscape or Microsoft Internet Explorer to Control/configure or monitor the device being managed.
