Page 1: User Manual

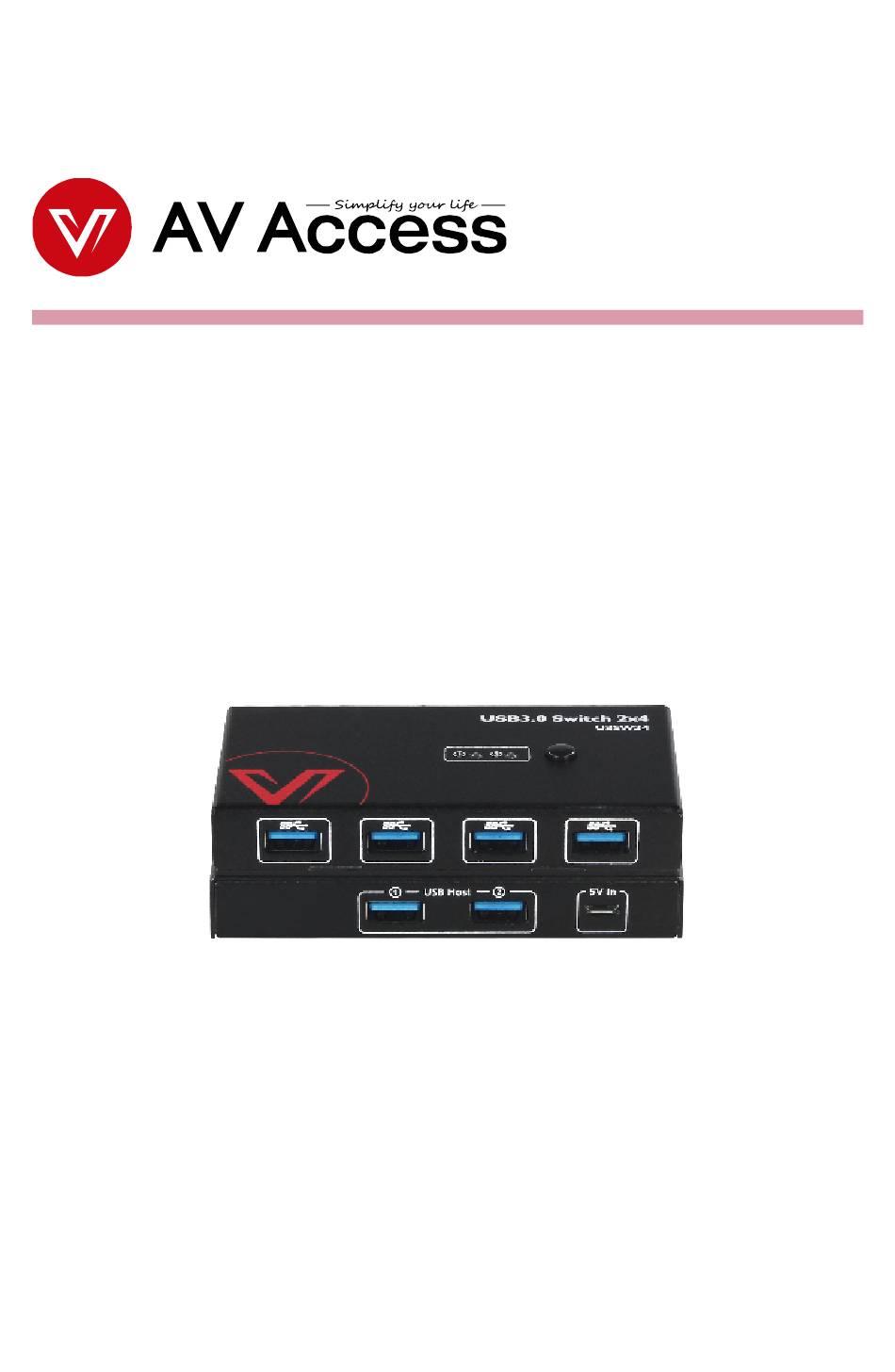

2x1 USB 3.0 Switcher with 4-Port USB 3.0 Hub U3SW24 User Manual Version: V1.0.0... -
Page 2: Package Contents
U3SW24 features 2 USB PCs share 4 USB 3.0 devices. It supports ultra-fast USB 3.0 data transfer rates of up to 5Gb/s, and easily switches between systems via push buttons with LED indicating the active computer. -
Page 3: Application Diagram
Application Diagram USB PC USB PC Rear Panel Front Panel Mouse Keyboard Camera USB Drive... -
Page 4: Specifications
Specifications Video Input/Output Signal Type USB 3.0 Maximum Transfer Data 5Gb/s Rate Control Method Switch button control General Operating Temperature 0°C to 45°C (32°F to 113°F) Storage Temperature -20°C to 70°C (-4°F to 158°F) Humidity 10% to 90%, non-condensing Human-body Model: ESD Protection ±8kV (Air-gap discharge)/ ±4kV (Contact discharge) -
Page 5: Panel Description
Panel Description Name Description PC Switch LED Switch to PC 1/2, the LED 1/2 will (1~2) be lit on. Press to switch between PC 1 and Switch Button USB 3.0 Type-A Connector. USB PC 1/2 Connect to PC. Reserved micro USB 2.0 port for DC 5V USB power input. -
Page 6: Troubleshooting
Name Description devices, you can connect one DC 5V USB power to this port. USB 3.0 Type-A Connector. USB Devices Connect to USB devices such as keyboard, Mouse, USB Printer. Troubleshooting No Power Ensure power on all the devices. Ensure use standard DC 5V USB power adapter (Not ...
