Valor 1600J L1 Quick Start Manual

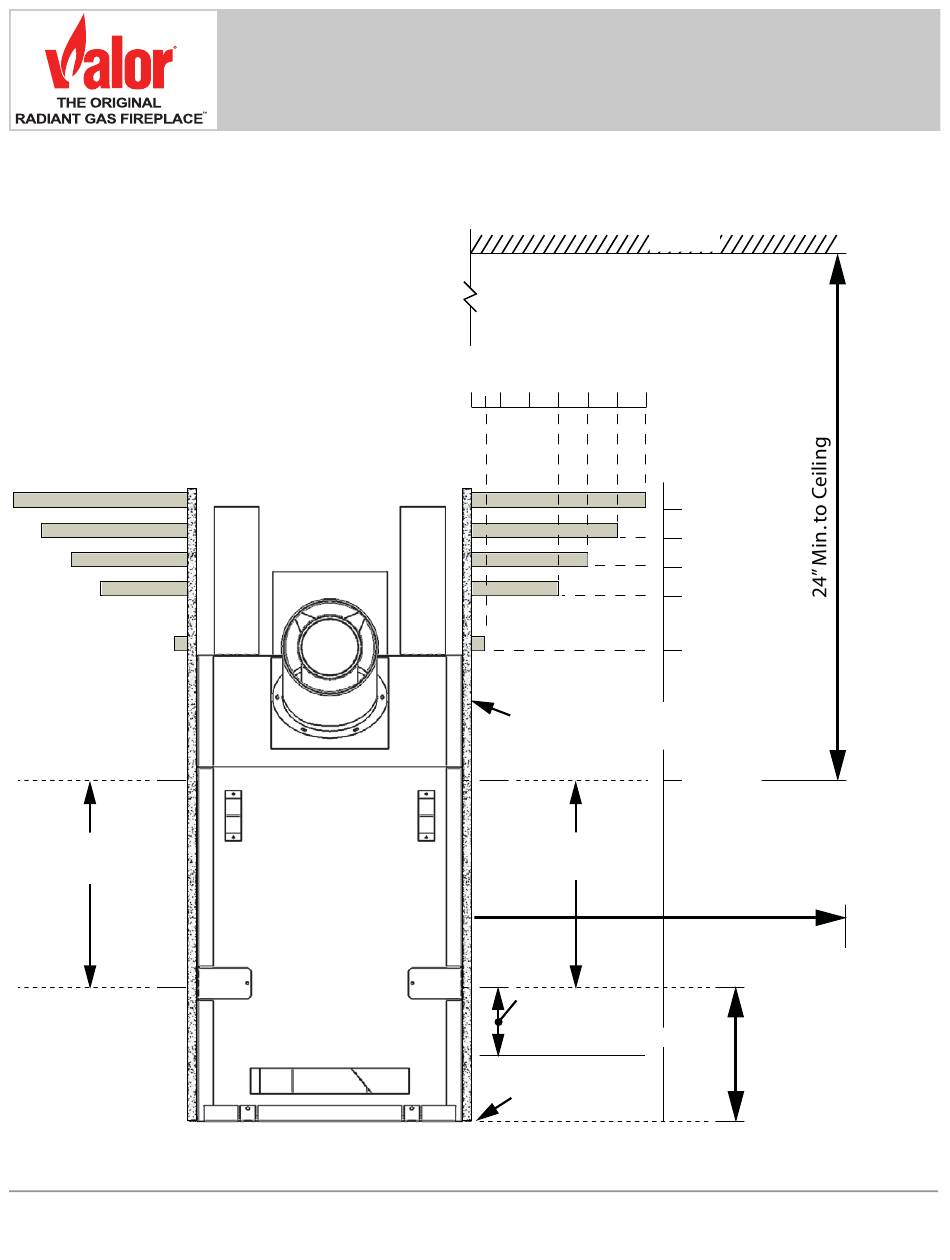

Combustible Mantel—Left Side View
Same dimensions and restrictions
apply to both sides of the appliance
Fireplace
Opening
1600J L1 See-thru Linear DV ZC

Clearances

Miles Industries Ltd. • 190—2255 Dollarton Highway • North Vancouver, BC • V7H 3B1
Tel: 604.984.3496 or 1.800.468.2567 • Fax: 604.984.0246 or 1.800.268.0333

Mantel Projection

(from Face of Cement Board)
0 2" 4" 6" 8" 10" 12"
Face of 1/2" thick
non-combustible
cement board
Fireplace
Opening
4" minimum to
combustible or
non-combustible hearth
Bottom of Unit
www.valorfi replaces.com
October 2016
Ceiling
44"
Mantel
42"
Height
(from
40"
Bottom
38"
of Unit)
33"
23-7/8"
Do not put
furniture or objects
within 36" (914 mm)
of front of appliance
9-3/8"
1/2
