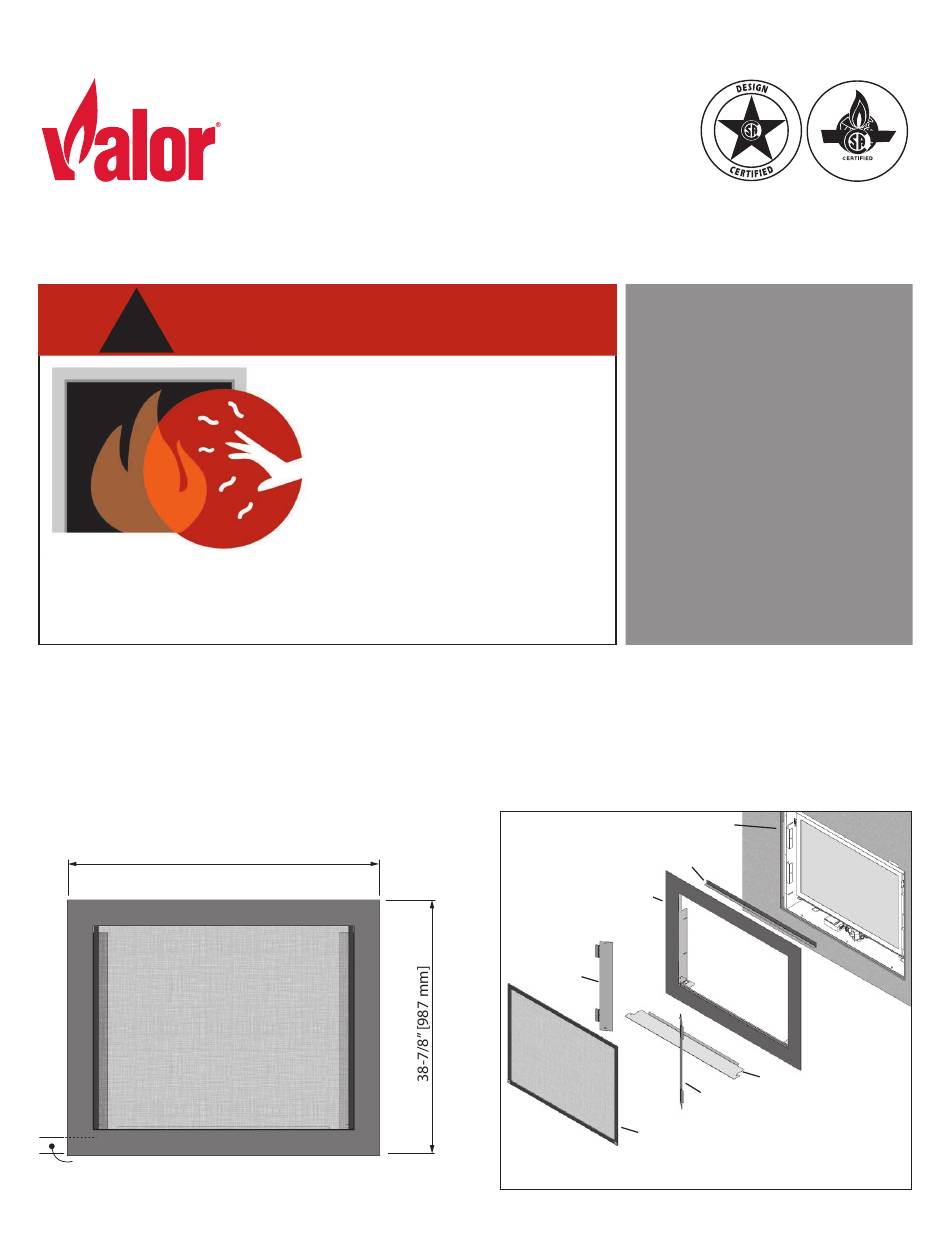

INSTALLATION MANUAL
1440 Four-Sided Trim Kit
For 1440FSB2 and 1440FSZ2 trims with Valor heater models 1400 ONLY
DANGER
!
A barrier designed to reduce the risk of burns from the hot
viewing glass is provided with this appliance and shall be
installed for the protection of children and other at-risk
individuals.
The 1440 trim is intended to be used on Valor heaters
models 1400. Mounting of the 1440 does not aff ect
clearances or other specifi cations listed in the heater
installation manuals—see installation manual supplied
with the heater for more information.
!
Please note the appliance will have to be raised
when using this trim as the plate extends below the
bottom of appliance.
47-5/8" [1209 mm]
1-1/2" [38 mm] between bottom
of appliance and bottom of trim
4005086-03
© Copyright Miles Industries Ltd., 2019
H6 Series
HOT GLASS WILL
CAUSE BURNS.
DO NOT TOUCH GLASS
UNTIL COOLED.
NEVER ALLOW CHILDREN
TO TOUCH GLASS.
!
I N ST A LL E R
L e a v e t h i s m a n u a l
w i t h t h e a p p l i a n c e .
C O N S U M E R
Retain this manual
for future reference.
Note: Mounting of this trim allows for non-combustible
material up to 3/4" (19 mm) thick installed over top of
the required 1/2" (13 mm) cement board. For thicker
fi nishes, refer to appliance manual.
1400 engine
Linerbox bracket
Steel front panel
LH door
Barrier screen
Overview
Plinth
RH door
