INSTALLATION MANUAL

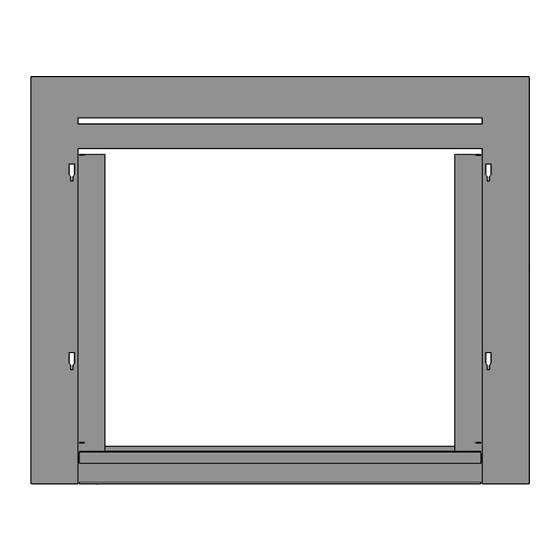

1035BPB-RC Three-sided Backing Plate Kit
CSA approved for use with Valor H3 1000 Heater Models
(in Retrofi t applications)
INSTALLER: Leave this manual with the appliance.
CONSUMER: Retain this manual for future reference.
The 1035BPB-RC backing plate is intended to be used on Valor heaters models H3 1000 in retrofi t applications. Refer
to installation manual supplied with appliance for clearances to combustible and other specifi cations when using the
1035BPB-RC "Retrofi t Application" Backing Plate.
The 1035BPB-RC needs to be fi tted with the 1045CFV—Clearview Front Surround to complete the installation.
Note: Intended to install into existing cavity and overlap existing wall finish. Backing plate mounts in fixed
position and does not adjust for additional finish material.
4007607-01
© Copyright Miles Industries Ltd., 2019
H3 Series
39-1/2" (1004 mm)
H3 1000
Left hand door
Backing plate assembly
Overview
Right hand door
Removable bottom panel
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Valor H3 Series
Summary of Contents for Valor H3 Series
- Page 1 CONSUMER: Retain this manual for future reference. The 1035BPB-RC backing plate is intended to be used on Valor heaters models H3 1000 in retrofi t applications. Refer to installation manual supplied with appliance for clearances to combustible and other specifi cations when using the 1035BPB-RC “Retrofi...
- Page 2 Installation 3. Insert the left hand door. 1. On completion of appliance installation, insert the a. Insert the door tabs straight into the top and backing plate assembly into the liner box, and at- bottom slots behind the front panel of the plate. tach it using 4 screws into the left and right sides.
- Page 3 Because our policy is one of constant development and improvement, details may vary slightly from those given in this publication. Designed and Manufactured by / for Miles Industries Ltd. 190 – 2255 Dollarton Highway, North Vancouver, B.C., CANADA V7H 3B1 Tel. 604-984-3496 Fax 604-984-0246 www.valorfi replaces.com...
- Page 4 CONSOMMATEUR : Conservez cette notice pour consultation ultérieure. La Plaque de fi nition 1035BPB-RC est conçue pour être installée sur les foyers Valor 1000 H3 installés en remplacement d’un foyer existant dans un encastrement combustible. Consultez le guide d’installation fourni avec l’appareil pour connaître les dégagements aux matériaux combustibles et autres spécifi...
- Page 5 Installation 3. Installez la porte gauche. 1. Une fois le foyer installé, insérez la plaque de fi nition a. Insérez les onglets de la porte dans les fentes à l’intérieur de la caisse du foyer et fi xez-la à l’aide situées juste derrière la façade de la plaque.
- Page 6 Pièces Description Pièce n Plaque de finition 4007121AZ Porte droite 4007169AZ Porte gauche 4007164AZ Panneau amovible 4007096AZ Vis à métaux (4) 100A757 Parce que nous favorisons une politique de développement continu, certains détails de la présente publication peuvent varier. Conçue et fabriquée par / pour Miles Industries Ltd.
