Advantech PCM-27J3AU Startup Manual

PCM-27J3AU
3-Port Audio Stereo, mPCIe, 3.5mm Jack

Packing List

Before installation, please make sure that you have:

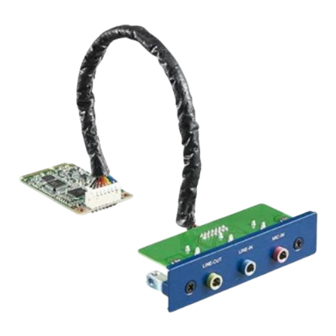

ƒ 1 x Audio mPCIe Card
ƒ 1 x 3-Port Audio I/O plate with iDoor bracket
ƒ 1 x Wired signal cable
ƒ 1 x Startup Manual
ƒ 1 x Warranty Card
If anything is missing or damaged, contact your distributor
or sales representative immediately.

Installation

PCM Module with iDoor technology supports following
iAutomation Computing Platforms:
ƒ Embedded Automation PC UNO-2200/2300 series
ƒ Control DIN-Rail PC UNO-1300/1400 series
ƒ Control Cabinet PC UNO-3200/3300/3400 series
ƒ Control Panel Computers TPC-xx81/xx82 series
ƒ Thin Client Panel Computers TPC-xx51 series
See the following page for installation in TPC Embedded
Panel Computers and UNO Embedded Computers.
Documentation/Software Support Guide
The Startup Manual is included in the package. The other
support documentation such as datasheets can be accessed
from Advantech's website.
Notes
For more information on this and other Advantech
products, visit our websites at:
http://www.advantech.com
http://www.advantech.com/eAutomation
For technical support and service:
http://www.advantech.com.tw/eservice
This manual is for PCM-27J3AU
Part No: 200327J300
1 Startup Manual

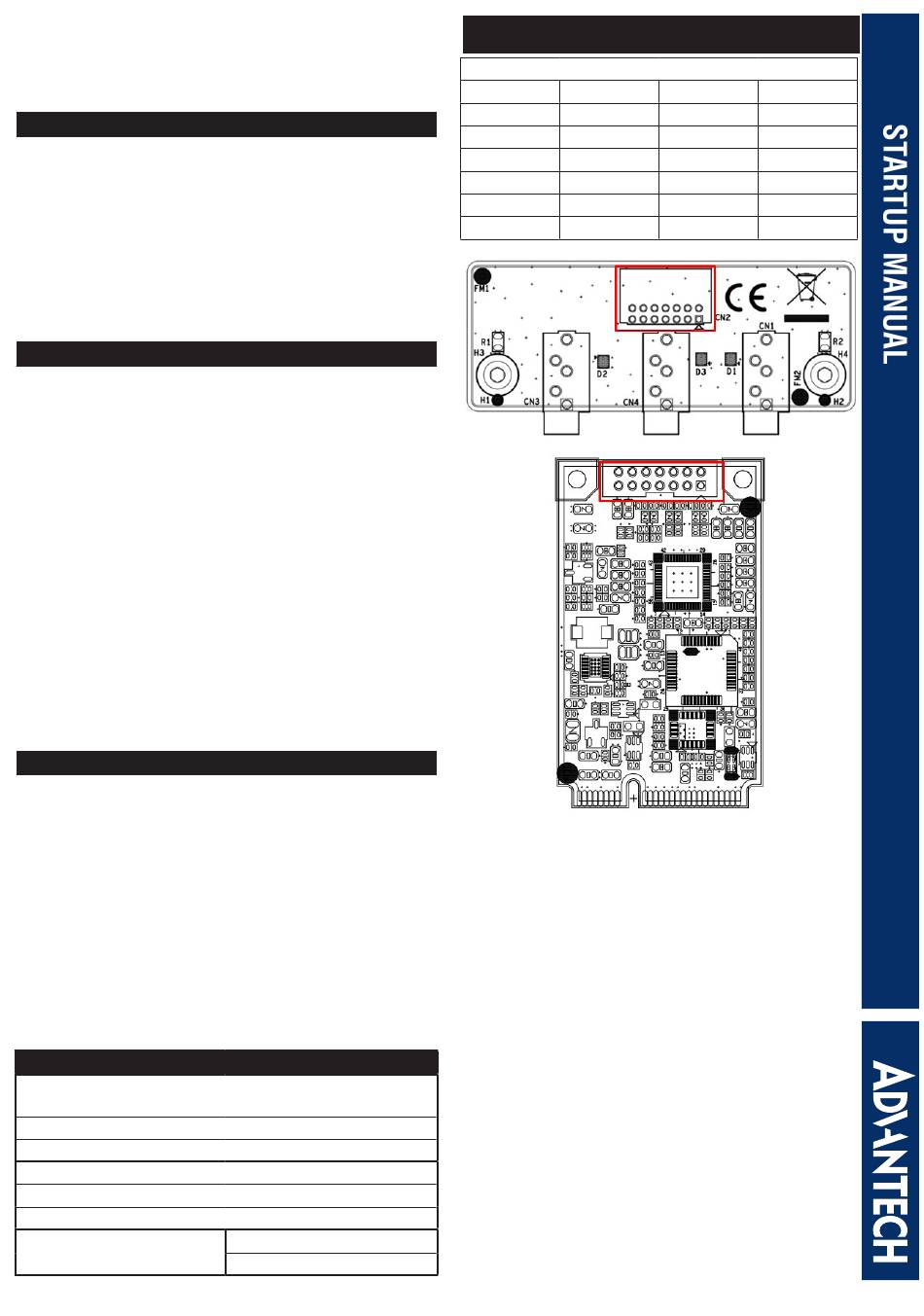

PIN Assignment of Audio Signal Connector
(14-Pin)
Pin1
Pin3
Pin5
Pin7
Pin9
Pin11
Pin13
1st Edition
December 2015
Description of PIN Use - I/O Board CN2 / mPCIe Card CN1
LOUT_R Pin2
LOUT_JD Pin4
LIN_R Pin6
LIN_JD Pin8
MIC_R Pin10
MIC_JD Pin12
GND_AUD Pin14
LOUT_L
GND_AUD
LIN_L
GND_AUD
MIC_L
GND_AUD
NC
