Advantech PCM-3730 User Manual

PCM-3730
PC/104 16-Channel Isolated
Digital I/O Module
General information

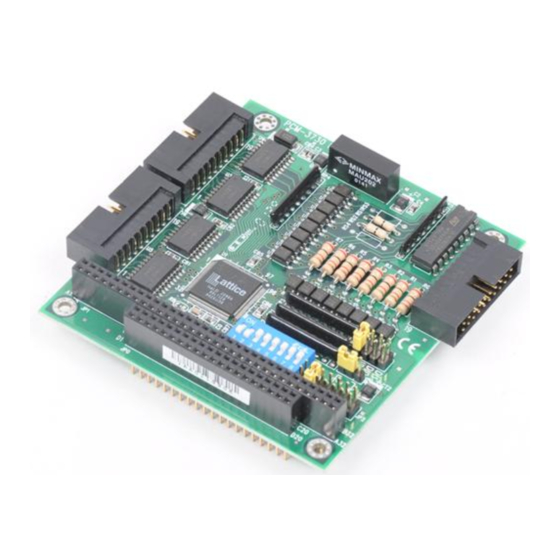

The PCM-3730 offers 16 isolated digital I/O channels (8 DI
and 8 DO) and 32 TTL digital I/O channels (16 DI and 16
DO) on a PC/104 module. Providing 2500 V
PCM-3730
each I/O channels corresponds to a bit in a PC I/O port,
making the PCM-3730 very easy to program. The PCM-
3730 offers one PC interrupt with jumper-selectable IRQ.
User's Manual
F e a t u r e s
• 16 isolated DIO channels (8 inputs and 8 outputs)
• 32 TTL-level DIO channels (16 inputs and 16 outputs)
• High output driving capacity
• High-voltage isolation on isolated I/O channels (2500
V )
DC
• Interrupt capacity
• One 20-pin connectors for isolated input channels and
output channels
• High sink current on isolated output channels (200 mA/
channel)
A p p l i c a t i o n s
• Industrial ON/OFF control
• Contact closure monitoring
• Switch status sensing
• BCD interfacing
• Digital I/O control
• Industrial and lab automation
S p e c i f i c a t i o n s
Digital input
8 optically-isolated inputs
• Input voltage: 5 t o 24 V
• Input resistance: 2 KW @ 0.5 W
• Isolation voltage: 2,500 V
• Throughput: 10 KHz max.
16 TTL-level inputs
• Input voltage:
Low: 0.8 V max.
High: 2.0 V min.
• Input load:
Low: 0.4 mA max at 0.5 V
High: 0.05 mA max at 2.7 V
• Throughput: 30 KHz typical
PCM-3730 User's Manual
PC/104 and the PC/104 logo are trademarks of the PC/104 Consortium
isolation,
DC
DC
DC
Digital output
8 optically-isolated
• Output voltage: Open collector 5 to 40 V
• Sink current: 200 mA max.
• Isolation voltage: 2500 V
• Throughput: 10 KHz max.
16 TTL-level outputs
• Output voltage:
Low: Sink 8 mA at 0.5 V max.
High: Source -0.4 mA at 2.4 V min.
• Throughput: 30 KHz typical
Interrupt source
Jumper selectable:
Channels 0 and 1 of Isolated DI port or
Channels 0 and 1 of TTL DI port
Register format
BASE+0 Isolated DI/O
BASE+2 and BASE+3 TTL DI/O
D i m e n s i o n s
95 mm x 90 mm
C o n n e c t o r s
One 20-pin flat-cable connectors for isolated DIO
Two 20-pin flat-cable connectors for TTL DIO
Power consumption
+5 V: 330 mA typical, 500 mA maximum
D a u g h t e r b o a r d s
The PCM-3730 interfaces with a wide variety of
Advantech daughterboards, such as the following:
PCLD-786 AC/DC power SSR and relay
driver board
This board holds eight optically-isolated solid state
relay modules and provides an additional eight
outputs to drive external relays.
PCLD-785B and PCLD-885 relay
output boards
These boards let you control relays through the
PCM-3730's 16-bit TTL digital output channels.
PCLD-785B provides 24 SPDT relays, while the
PCLD-885 provides 16 SPST power relays.
Part no. 2003730050 1st Edition
outputs
DC
DC
Printed in Taiwan August 1997
