6. The older machine doesn't have that bracket which is ok. Remove the light grey in color
connector located on the left side towards the top of the board. Please look at figure 3 for
reference.

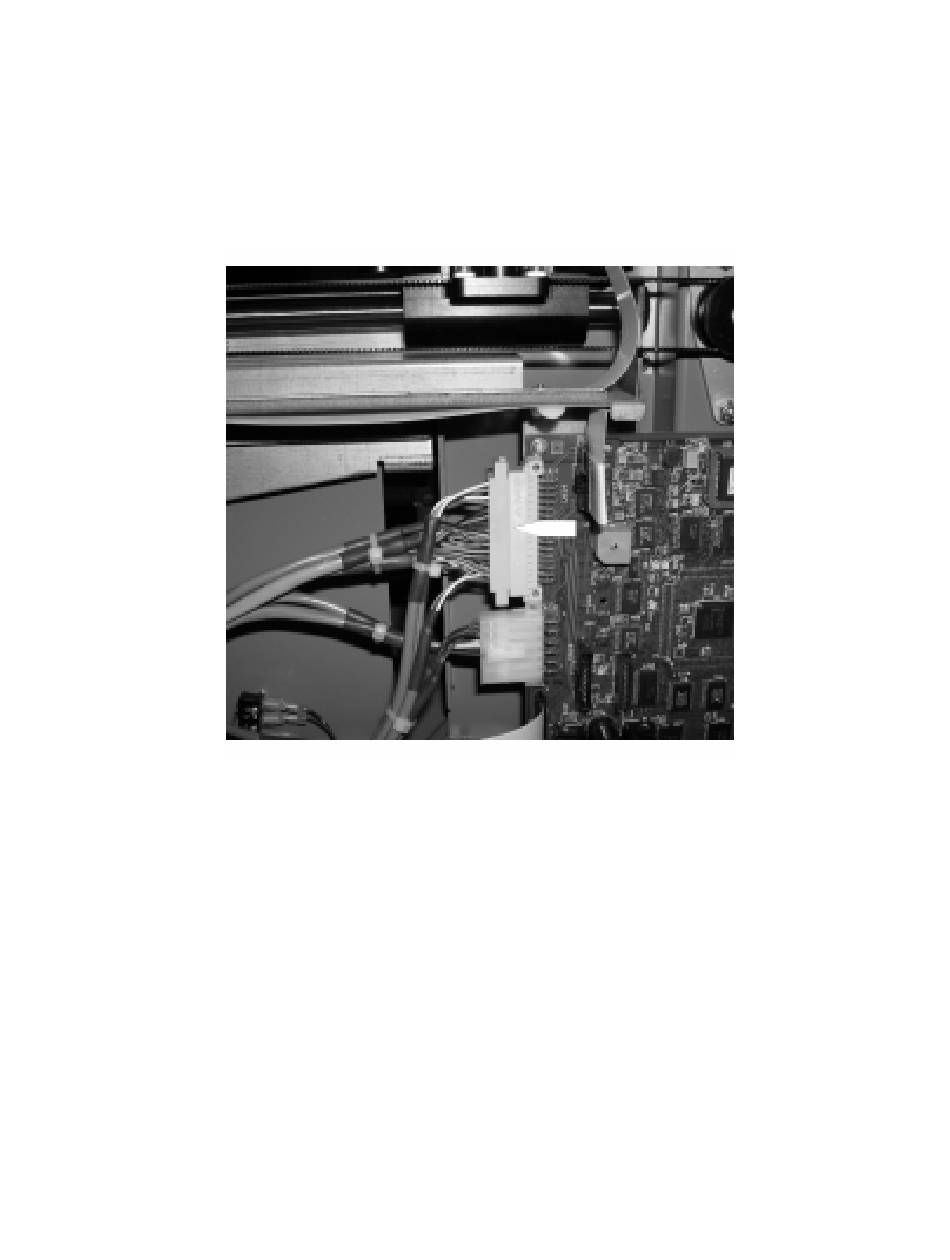

Figure 3: Older Machines
7. Use the #1 Phillips head screw driver to remove the 4 Phillips head screws located on each
corner of the board. The controller board can now be removed. To install the new board, attach the
grounding strap provided to your wrist and connect the other end to a screw somewhere on the
chassis of the machine before handling the new controller board. Once you have this ground strap
secure, reverse steps 7 back down to 1 to install the new controller board.
If you have any questions, please contact Epilog's Technical Support at the following:
Phone 303.215.9171
Fax
303.531.7594
email
tech@epiloglaser.com
