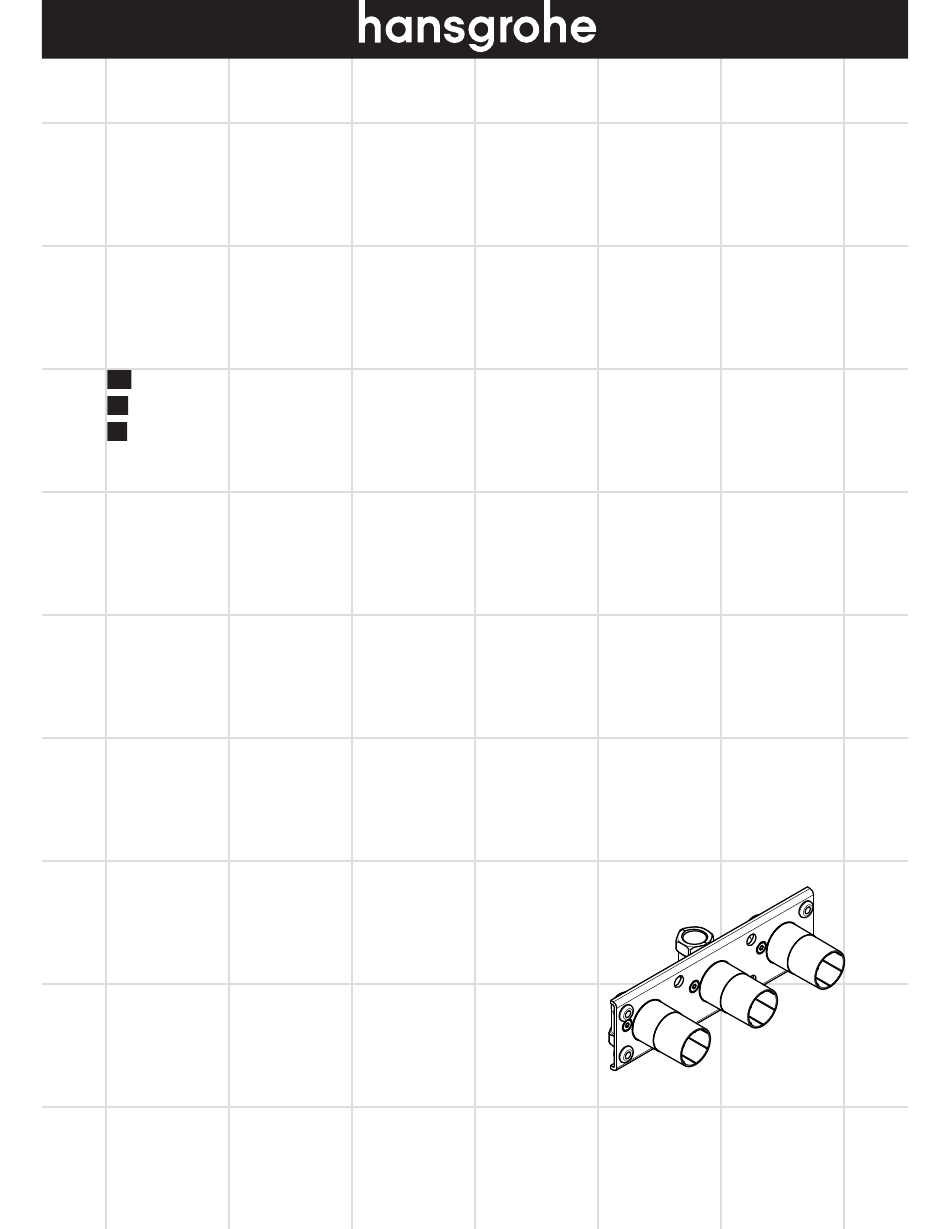

- Page 1 Installation / User Instructions / Warranty Instructions de montage / Mode d'emploi / Garantie Instrucciones de montaje / Manejo / Garantía ShowerTablet 600 Basic Set 13129181...
- Page 2 English Français Installation Considerations À prendre en considération pour l’installation • This rough is for use with Shower Tablet 600 Thermostat Universal, #13108xx1 (not included). • Ce pièce intérieure requiert une Shower Tablet 600 Thermostat Universal, #13108xx1 (non compris). • For best results, Hansgrohe recommends that this unit be installed by a licensed, professional plumber.
- Page 3 8¹¹⁄ ₁ ₆"(220 mm) NPT ½ 3"(75 mm) 3"(75 mm) NPT ½ min.1¾" (46 mm) max.2⅞" (74 mm) 3⅝" (91 mm) Replacement Parts / Pièces détachées / Repuestos 98181000 (18x2) 17mm...
- Page 4 Installation Suggestion / Suggestion d'installation / Sugerencia para la instalación 5" (127 mm) 5⅞"(150 mm)
- Page 5 T ½ 1 2 7 5 " ( T ½ T ½...
-
Page 6: Installation / Installation / Instalación
Installation / Installation / Instalación English Français Español This unit must be installed so that Installez le robinet de façon à ce Instale la válvula de modo que the outside surface of the finished que la surface extérieure du mur la superficie exterior de la pared wall falls between the "min"... - Page 7 English Français Español Make sure that the valve is level. Assurez-vous que le robinet est de Asegúrese de que la válvula niveau. quede nivelada. Strap the pipes securely. Fixez bien les conduites en vous Ajuste firmemente las tuberías conformant aux pratiques de plom- de acuerdo con las prácticas de berie appropriées.
- Page 8 English Français Español Brush adhesive (not included) over Appliquez un adhésif à l’épreuve Aplique adhesivo (no incluido) a the backer board. de l’eau (non inclus) sur le panneau la pared alrededor de las válvulas. d’appui, autour de les valves. Do not use hot glue. No use cola caliente, N’utilisez pas de colle puesto que daña la junta.
-
Page 12: Limited Consumer Warranty
Limited Consumer Warranty This warranty is limited to products manufactured by Hansgrohe, Inc. excessive water pressure or corrosion. (“Hansgrohe”) that are purchased by a consumer in the United States Labor and other expenses for disconnection, deinstallation, or return of the product for warranty service (including but or Canada after March 1, 1996, and installed in either the United States or in Canada.
