Emulex LPe12000-Series Host Bus Adapters Installation Guide

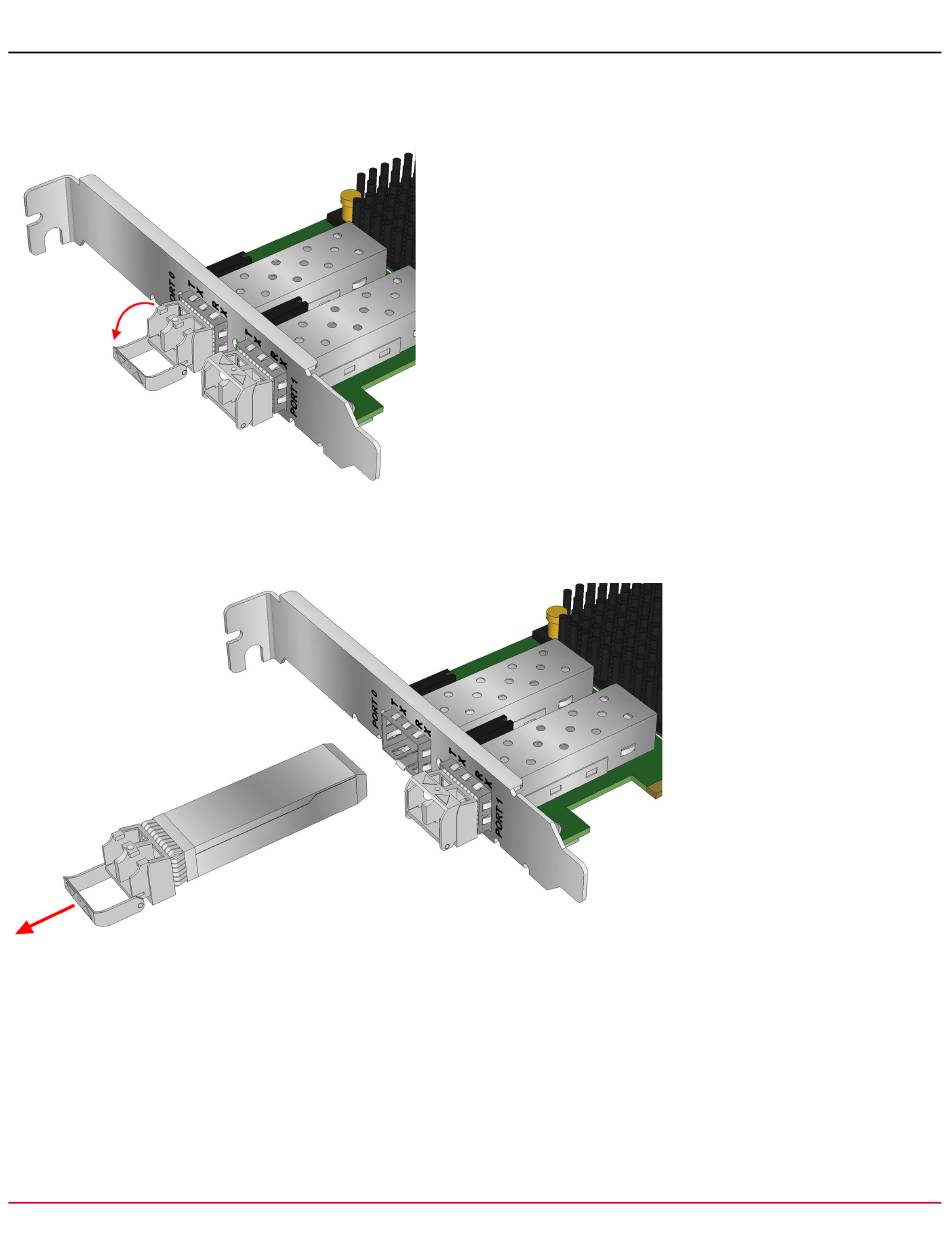

Figure 2 shows a transceiver with the latch released and another transceiver latched in place.
Figure 2: Releasing the Latch on an Optical Transceiver
Figure 3 shows an extracted transceiver and another transceiver latched in place.
Figure 3: Removing an Optical Transceiver
2. Observing ESD precautions, store the transceiver in an ESD-safe place.
3. Remove the mounting bracket screws and washers from the adapter.
the bracket.
Broadcom
Figure 4 shows the screws that are removed from
