Emulex LPe12000-Series Host Bus Adapters Installation Guide
The LPe12004 adapter has four six-post jumper blocks that control the adapter's device ID for ports 0, 1, 2, and 3.
Select the ID by installing a jumper between posts 1 and 2, or 3 and 4, or 5 and 6, as described in
NOTE:
Without a jumper, the adapter reports a device ID of 0x1AE5. Most software drivers require a PCI device ID of F100
to properly identify and control the adapter. Do not attempt to operate the adapter with the PCI device ID set to
0x1AE5 unless recommended by the driver installation instructions.
Table 3: Jumper Settings
PCI Identifier
F100
F101
1AE5

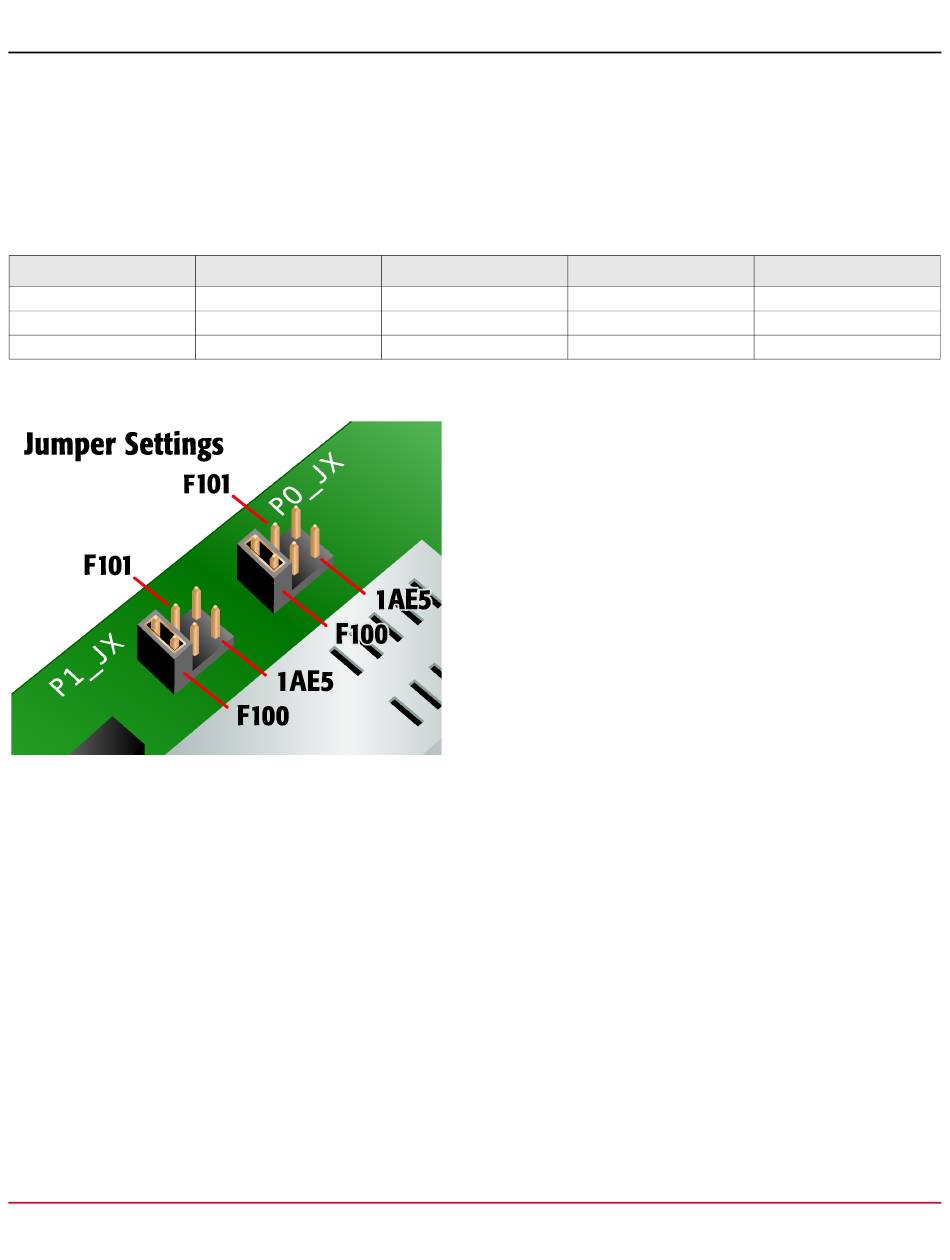

Figure 5: Jumper Settings
2.2 Installing the Adapter
To install the adapter, follow these steps:
1. Turn off the computer if hot-plug installation is not supported on the server.
Refer to the computer documentation to see if the computer supports hot-plug or hot-swap of PCIe adapter cards.
2. Remove the computer case.
3. Remove the blank panel from an empty x8 or x16 PCIe bus slot.
4. Insert the adapter into the empty slot. Press firmly until the adapter is seated.
NOTE:
Make sure that the adapter is in an appropriate PCIe slot that does not interfere with other components or with the
case to prevent damage to the adapter.
5. Secure the adapter mounting bracket to the case with a panel screw or clip.
6. Replace the computer case and tighten the case screws.
Broadcom
P0_JX (Port 0)
1–2
3–4
5–6
P1_JX (Port 1)
1–2
3–4
5–6
P2_JX (Port 2)
1–2
3–4
5–6
Table
3.
P3_JX (Port 3)
1–2
3–4
5–6
LPe-120XX-IG124-100
7
