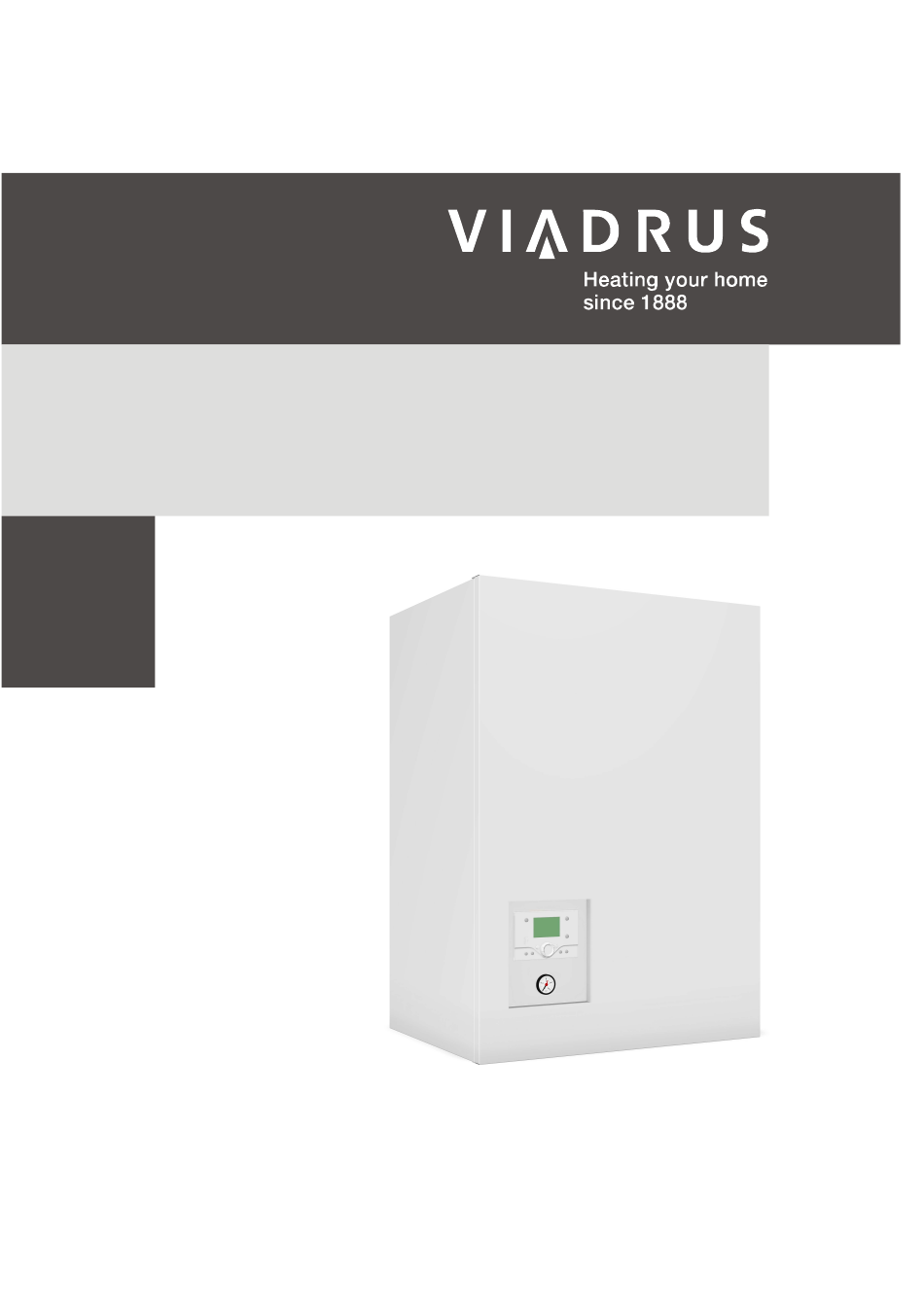

- Page 1 VIADRUS K 5 Manual for boiler operation and installation GB_2016_47 GB_2016_42...
-
Page 2: Table Of Contents
Content: page Produced versions of boilers ..........................3 Usage and advantages of the boiler ........................3 Technical data ............................... 4 Boiler description ..............................6 Boiler structure ............................... 6 Integrated stack heater ............................7 Placement and installation............................. 8 Regulations and directives ..........................8 Possibilities of placement .......................... -
Page 3: Produced Versions Of Boilers
Dear customer, We thank you that you have bought a VIADRUS K5 boiler, thus having shown your confidence in VIADRUS brand. In order to accustom to correct manipulation with your new product, before installation and commissioning, please carefully acquaintance with the instruction manual (mainly, chapter 8 – Operation with the stove by a user, and chapter No. -
Page 4: Technical Data
Technical data Tab. №. 1 Sizes, operating temperature and electrical parameters Fuel type Natural gas Consumer category Weight [kg] Water content Boiler sizes - width/depth/high [mm] 680/505/950 Ø of connection of combustion air [mm] 80 divided, 100 concentrated Ø of chimney throat [mm] 80 divided, 60 concentrated Ø... - Page 5 Requirements for information related to boiler heaters for heating the indoor premises, boiler combined heaters and combined heat and power heaters for heating the indoor premises Model/s: VIADRUS K5 D4L20XX Condensing boiler: Low-temperature boiler: Boiler of type B1: Combined heat and power heater for heating the indoor...
-
Page 6: Boiler Description
Boiler description Boiler structure boiler frame with insulation heating water pipe heat-exchanger with bracket return water pipe electric fan manual air-relief valve Venturi tube siphon HW reservoir with capacity of 60l with insulation condensate exhaust expansion tank 10l electric panel with LMS control board, display and hydro-block manometer gas valve... -
Page 7: Integrated Stack Heater
The lead-in of combustion air and the flue gases exhaust can be executed by several methods, namely: into the chimney, through the wall, through the roof (inclined or flat one), into the common well. The boiler is a consumer in a design C, i.e. a closed one with electronic ignition and flame ionization. Integrated stack heater Tab. -
Page 8: Placement And Installation
Placement and installation Regulations and directives a) for the heating system ČSN 06 0310 Heat systems in buildings – Design and mounting ČSN 06 0830 Heat systems in buildings – Securing devices ČSN 07 7401 Water and steam for heat energetic equipment with steam operation pressure up to 8 MPa EN 15502-1 Gas fuel boilers for central heating - Part 1: General requirement and tests EN 15502-2-1... -
Page 9: Possibilities Of Placement
ČSN 38 6405 Gas equipment, principles for operation. Law 458/2000 Sb. Law on conditions of enterpreneurship and on execution of public administration in energetic branches and on changes of some laws (the Energetic law) Possibilities of placement Upon installation and usage of the boiler, it is necessary to observe all requirements of ČSN 06 1008. -
Page 10: Delivery And Accessories Content
Delivery and accessories content The boiler VIADRUS K5 is supplied in an assembled state on a pallet, packed in a cardboard cover and protected by a foil. Standard accessories for all versions of the boiler: Manual for operation and installation of the boiler, containing a warranty certificate... -
Page 11: Electric Connection Diagram
Electric connection diagram Fig. №. 6 Circuit connection diagram... - Page 12 Fig. №. 7 Electric connection diagram...
-
Page 13: Commissioning
Commissioning Connection to the heating system and watering the system Before watering the heating system, it is necessary to clean properly this system, i.e. at least two times fill the system with clean water and afterward drain it. Water serving for watering the heating system has to be clean and colorless, without suspended substances, without oil and without chemically aggressive substances. -
Page 14: Gas Connection
Gas connection Before connecting the gas pipeline to the boiler, the gas pipeline has to be tested and revised. After connecting the boiler to the gas pipeline, it is necessary to test all gas joints by a gas detector or with using of foam solution. The input pressure of natural gas is about 2 kPa (20 mbar). - Page 15 The chimney has to be equipped with a special insert, determined for the condensing boiler, and with an exhaust of condensate from the chimney. The boiler VIADRUS K5 can be used with a plastic insert with the thermal resistance of 120 °C, for example produced by ALMEVA.
-
Page 16: Fume-Extraction System - Example Of A Correct Connection Of The Flue Gas Ducting And The Air Suction
A proposal for design of the fume-extraction system and the air supply, including theirs lengths, shall be performed by a designer in the technical documentation on the basis of the project supporting documents VIADRUS. Remark: Number of components for separate types of designs depends on the placement of the boiler. - Page 17 7.8.1 Fume-extraction diagram, type STARR, 2 x D 80 mm Chimney plastic head starr (complete) Anti-raining packing End pipe without orifice Universal distance bushing Pipe with orifice Revision T-piece Revision door Pipe with orifice Foot elbow 87° with anchorage LIB pipe part with rim Revision T-piece Pipe with orifice Revision T-piece with drain...
- Page 18 7.8.2 Fume-extraction diagram, type FLEX, 2 x D 80 mm Anti-raining packing End pipe without orifice Version 1 Version 2 End pipe flex End plastic head flex (complete) End plastic head starr (complete) Universal distance bushing Revision door Ventilation grid Revision T-piece flex/starr Revision T-piece flex/flex Flexibile hose...
-
Page 19: Connection Of The System Lik 60/100
Connection of the system LIK 60/100 Flange 60/100 Screw M4 x 12... - Page 20 7.10 Fume-extraction diagram, type LIK, design 60/100 mm (max. length 5 m) Chimney plastic head starr (complete) LIK pipe part with rim Adjustable LIK pipe part with clamp LIL wall bushing LIK revision T-piece with measuring hole LIK revision T-piece with drain LIK elbow 45°...
-
Page 21: Commissioning The Boiler
7.11 Pressure losses of elements of fume-extraction system in using the boiler VIADRUS K5 max. fan pressure 150Pa Divided fume-extraction - flue gases Ordering code code Name Loss in Pa VIADRUS 20105 PPSB48 Elbow 45° 20107 PPSB98 Elbow 87° 20133... -
Page 22: Instructions Before Commissioning
The control unit is determined for control by means of extension modules of 1 to 3 mixing heating circuits, hot water, a cascade, a swimming pool, a wooden boiler, etc. (see the project supporting documents VIADRUS). Other possible method of commutation of the boiler is with help of 0 - 10 V through the input H1. In this case the boiler is the only the source of heat. -
Page 23: Energy Saving
Button of manual operation - actuation of the boiler to the preselected temperature 60 °C, all pumps run, the mixer is not controlled - a symbol will displayed on the display Button Sweeper - at a short press of the button, the boiler will go to the emission measuring mode. This button serves for authorized service technician. - Page 24 Time program TO2 (only in a case, that it is activated) Parameter Function Production settings Min. Max. Units Preselection Mo-Su 00:00 24:00 hh:mm Mo-Su: 1. Phase on 6:00 00:00 24:00 hh:mm Mo-Su: 1. Phase off 22:00 00:00 24:00 hh:mm Mo-Su: 2. Phase on 24:00 00:00 24:00...
- Page 25 Holidays TO3 (only in a case, that it is activated) Parameter Function Production settings Min. Max. Units Preselection Start 01.01 31.12. dd.MM 01.01 31.12. dd.MM Anti-frost protection, hh:mm Type of operation Anti-frost protection Dumping Heating circuit 1 Parameter Function Production Min.
-
Page 26: Error Messages
Error messages The table 6 contains a list of the most frequent error states of the boiler. In case of other error code, it is necessary to call the service. Error messages Maintenance or special If this symbol is operation displayed, it means that If this symbol is displayed, it there is a fault in the... -
Page 27: Failures
Failures Failure Cause Solution • The boiler doesn't The boiler is without voltage Check, whether the supply cord is in the kindle socket and whether there is voltage in the socket. • Insufficient or interrupted gas supply Check that the main gas supply and the shut-off valve of the boiler are opened •... -
Page 28: Important Warnings
In case of violation of these conditions, no warranty repairs can be required. Instructions for product liquidation after the lapse of its service life VIADRUS a.s. is a contractual partner of company EKO–KOM a.s. with the client number F00120649. The packages comply with EN 13427. -
Page 29: Warranty And Responsibility For Defects
VIADRUS a.s. provides an extended warranty period to the boiler drum for the time period of 60 from the sell-by date, but not longer than 66 months from the dispatch date from VIADRUS a.s. - Page 31 The annex for the warranty certificate for the customer - the user The record of performed warranty and after-warranty repairs and regular annual checks of the product Contractual service Record Customer Performed activity organization date signature (signature, stamp)
- Page 32 VIADRUS K 5 VIADRUS a.s. Bezručova 300 | CZ - 735 81 | Bohumín E-mail : info@viadrus.cz | www.viadrus.cz...
