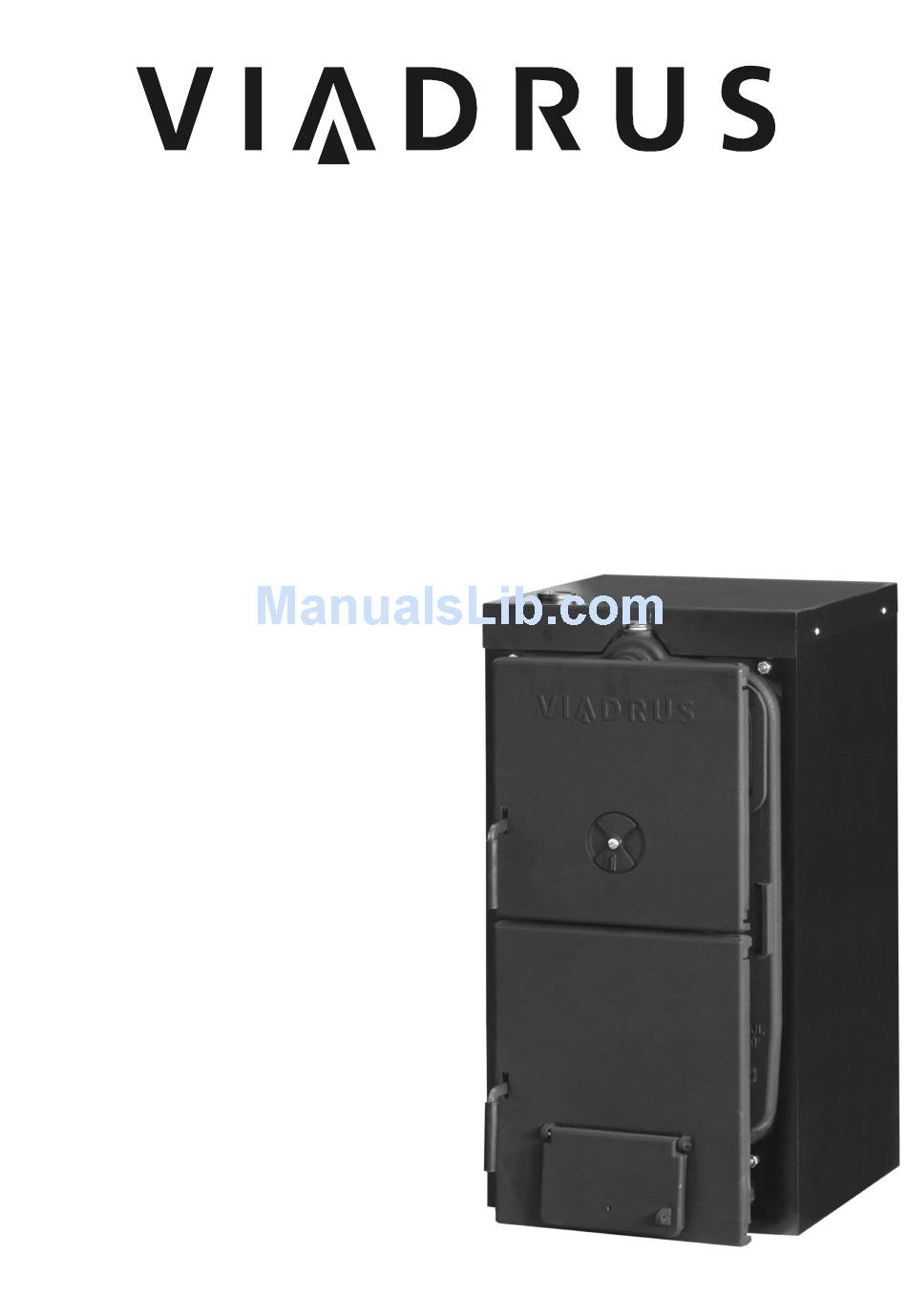

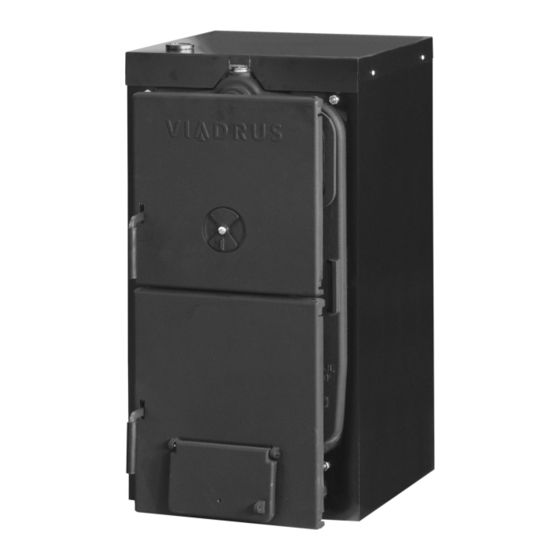

- Page 1 Hercules U26 VIADRUS HERCULES U 22 BASIC MANUAL FOR BOILER OPERATION Návod k obsluze AND INSTALLATION...
-
Page 2: Table Of Contents
Contents: page Usage and advantages of the boiler ......................3 Technical data of the boiler ........................4 Description ..............................6 Construction of the boiler ........................6 Regulating and security elements ....................... 6 Placing and installation ..........................8 Regulations and instructions ....................... 8 Placing possibilities .......................... -
Page 3: Usage And Advantages Of The Boiler
Burning of other materials such as plastic is unallowable. Usage and advantages of the boiler Three – sectional size of the boiler VIADRUS HERCULES U 22 BASIC is appropriate for heat source reconstruction in self – contained flats, for smaller residential and recreational facilities. Bigger sizes of the boiler meet the requirements of heating the family houses, shops, schools, etc. -
Page 4: Technical Data Of The Boiler
Technical data of the boiler Chart Nr. 1 Dimensions, technical parameters of the boiler Section number Weight Water space volume 31,5 36,2 40,9 45,6 50,3 55,0 59,7 64,4 Firing chamber volume Firing chamber depth Diameter of smoke socket Boiler dimensions: 917 x 508 - height x width - depth... - Page 5 Section number 1000 682,5 778,5 874,5 970,5 1066,5 1162,5 1258,5 1354,5 Ø D Fig. no. 2 Main dimensions of boiler...
-
Page 6: Description
Description Construction of the boiler The main part of the boiler is the cast iron section boiler drum made of grey cast iron according to: ČSN 42 2415 Grey iron 42 2415 with luminated graphite, or ČSN 42 2420 Grey iron 42 2420 with luminated graphite Pressure parts of the boiler correspond to the demands on solidity according to: ČSN 07 0240 Warm-water and law-pressure steam boilers... - Page 7 1. Boiler drum 2. Stoker door 3. Ash door 4. Smoky chimney – pot 5. Boiler drum insulation 6. Jacket 7. Thermomanometer 8. Sealing Ø 90 x 60 x 3 9. Heat water flange 10. Returnable water flange 11. Filling and draining cock Fig.
-
Page 8: Placing And Installation
Placing and installation Regulations and instructions The boiler for solid fuels can be installed by a company with a valid authorization to perform its installation and maintenance. For installation a project in accordance with valid regulations must be executed. The heating system must be filled with water, that meets the ČSN 07 7401 requirements, especially its harness must not exceed the required parameters. - Page 9 Chart Nr. 4 Grade of reaction to fire Examples of building materials and products included in the reaction to fire Grade of reaction to fire (Extract from EN 13 501-1 + A1) A1 – incombustible Granite, sandstone, concrete, bricks, ceramic tiles, mortars, fireproof plasters, … A2 –...
-
Page 10: Order, Delivery And Assembly
Order, delivery and assembly Order In the order the following is needed to be specified: 1. Boiler size. 2. Demands on optional accessories. Delivery and accessories The boiler is delivered according to the order in a manner that a complete boiler drum is located on the palette and a covered boiler jacket is fixed on the side. - Page 11 Every heat source in an open heat system must be connected with an open expansion tank positioned at the highest point of the heat system. The expansion tanks must be rated in the way that they can contain the changes in water volume resulting from heating and cooling. The open expansion tanks must be equipped with non-closable bleeder and a overflow pipes.
- Page 12 Insert a smoke pipe on the smoke extension and push in into the chimney opening. Two threaded holes Js 6/4 "in the front boiler section must be blinded by using plugs Js 6/4". Mounting of the jackets Remove the jackets from the carton package. Put down the insulation on the boiler drum.
-
Page 13: Putting Into Operation - Instructions For A Contractual Service Organization
Filling of the heat system with water: Water for filling of the boiler and the heat system must be pure and colourless, without suspended substances, oil and chemically aggressive substances. Its hardness must correspond to ČSN 07 7401 and in case it does not correspond it is necessary the water to be adjusted. -
Page 14: User's Boiler Service
User’s boiler service COKE, ANTHRACITE The optimal fuel is coke with granularity of 40 – 60 mm but it is possible to burn even coke and anthracite with granularity of 20 – 40 mm (nut 2). In case of sufficient chimney draught (0,15 to 0,25 mbar) it is possible to burn even non –... -
Page 15: Important Notice
IMPORTANT NOTICE 1. The boiler only can be used for the purpose that it is destined for. 2. The boiler must be operated only by adults who are introduced to these operating instructions. It is unallowable to let children at the boiler unattended of adults. Interventions into the boiler design that could threaten the health of the operating staff, eventually the inmates, are disallowed. -
Page 16: Instructions For Product Liquidation After Its Operating Life
If the boiler is operated according to the instructions mentioned in the “Instructions for the boiler operation and installation”, the boiler does not require any special professional service interventions. “Certification of the quality and completeness of the VIADRUS HERCULES U 22 BASIC boiler” serves for filling in by a contractual service organization as the ”Warranty card”. - Page 17 Information for customer Packaging identification Assessment reference PE Plastic sacks, folie, corrugated board, iron and plastic fix line Identification of principal materials used. Paper, Polyethylene, iron, wood Part 1: Summary of assessment Standard/Report Assessment requirement Claim Note 1.1 Prevention by source reduction 1.2 Heavy metals and ensure below maximum permitted levels...
- Page 19 1x For the attention of the service organization VIADRUS a.s., Bezručova 300 735 81 Bohumín The Warranty card and Certification of the quality and completeness for the boiler VIADRUS U 22 Boiler serial number ......…………………. Boiler power ......User (surname, name) …………………………………………………………………………………………...
- Page 20 Appendix to the Warranty card for customer - user Recording of performed warranty and after – warranty repairs and performance of regular product check Contractual service Recording Customer´s Performed operation organization date signature (signature, stamp)
- Page 21 1x For the attention of the producer VIADRUS a.s., Bezručova 300 735 81 Bohumín The Warranty card and Certification of the quality and completeness for the boiler VIADRUS U 22 Boiler serial number ......…………………. Boiler power ......User (surname, name) …………………………………………………………………………………………...
- Page 23 1x For the attention of the user VIADRUS a.s., Bezručova 300 735 81 Bohumín The Warranty card and Certification of the quality and completeness for the boiler VIADRUS U 22 Boiler serial number ......…………………. Boiler power ......User (surname, name) …………………………………………………………………………………………...
- Page 24 Update 17/2013 – GB...
