- Page 1 VIADRUS CLAUDIUS K 2 Manual for boiler operation and installation GB_2016_43 GB_2016_35...
-
Page 2: Table Of Contents
Connection to the mains ..........................16 Condensate drain............................16 Flue gas exhaust............................16 Pressure losses of flue gas exhaust components for the boiler VIADRUS CLAUDIUS K2 ...... 18 Boiler commissioning ..........................18 Boiler settings ............................. 19 Boiler operation by user ............................20 General description ............................. -
Page 3: Manufactured Boiler Versions

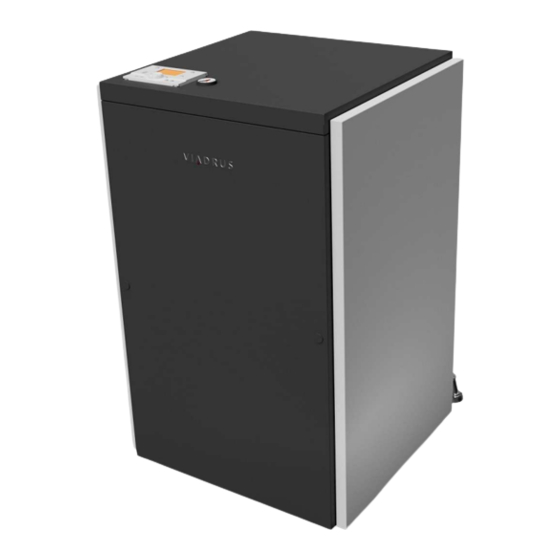

Boiler Uses and Advantages Condensing boiler VIADRUS CLAUDUS K 2 is intended for combustion of low pressure natural gas. The size of the condensing boiler is suitable for heating of houses, recreation facilities and also for reconstruction of heat sources in individual flats. -
Page 4: Specifications
Specifications Tab. №. 1 Sizes, operation temperature and electrical variables K 2 L3X K 2 L5X Fuel type Appliance category Weight [kg] Water content Boiler dimensions - width (L2) [mm] - depth [mm] - height [mm] Ø connection of the combustion air [mm] Ø... - Page 5 Information requirements relating to boiler heaters for space heating, boiler combined heaters and cogeneration heaters for space heating Model/Models: VIADRUS CLAUDIUS K2 L3X Condensing boiler: Low-temperature boiler: Boiler type B1: Cogeneration heater for space heating: NO If YES, featured with an auxiliary heater:...
- Page 6 Information requirements relating to boiler heaters for space heating, boiler combined heaters and cogeneration heaters for space heating Model/Models: VIADRUS CLAUDIUS K2 L5X Condensing boiler: Low-temperature boiler: Boiler type B1: Cogeneration heater for space heating: NO If YES, featured with an auxiliary heater:...
-
Page 7: Boiler Description
Boiler description Boiler construction The heat exchanger of the condensing boiler consists of a front, middle (the number depends on the size of the boiler) and the rear section. These castings are connected by means of silicon rings and tightened by threaded bars. -
Page 8: Storage Heater Viadrus Ov - H 100
Storage heater VIADRUS OV - H 100 Water heater VIADRUS OV – H 100 is a pressure device adapted to operate at a maximum water pressure of 0.6 MPa (6 bar). Hot service water heater is a device designed for heating and storing hot water. - Page 9 Central heating circulation (supply, return pipeline) 3/4” E-socket (heating coil) 5/4” Sensor housing 3/8" Thermometer 1/2” internal thread Water drain 3/4" Magnesium anode stopper 2” Weight (empty) ANODE PROTECTION DRAIN Fig. №. 4 Water heater VIADRUS OV - H 100...
-
Page 10: Placement And Installation
Placement and installation Regulations and guidelines a) for the heating system CSN 06 0310 Heating systems in buildings – Design and installation CSN 06 0830 Heating systems in buildings – Safety devices CSN 07 7401 Water and steam for heating equipment with steam working pressure up to 8 MPa EN 15502-1 Gas-fired central heating boilers - Part 1: General requirements and tests EN 15502-2-1... -
Page 11: Positioning Options
E (F) – easily flammable Asphalt board, fibreboards, cellulose materials, polyurethane, polystyrene, polyethylene, PVC,... Delivery and accessories The boiler VIADRUS CLAUDIUS K 2 is supplied as assembled on a pallet, packed in a carton cover and foil protected. Standard accessories to all boiler variants:... -
Page 12: Boiler Installation
Boiler Installation According to the marked outlets, the boiler is connected to the heating system including HW (if used) and gas distribution as shown in Fig. No. 6. Condensate drain should be connected in compliance with the applicable standards CSN and EN. Further, the flue gas exhaust is connected according to the project. Heating water outlet from the boiler (if a water heater, it is necessary to make connections via T - piece... -
Page 13: Wiring Diagram
Wiring diagram Fig. №. 7 Circumferential diagram... - Page 14 Fig. №. 8 Wiring diagram...
-
Page 15: Commissioning
Commissioning Connection to the heating system and filling with water Before filling the heating system with water the system should be duly cleaned, it means that the system should be twice filled with clean water and drained. Water for the boiler and the heating system filling must be clear and colourless, without suspended solids, oil and aggressive chemicals. -
Page 16: Gas Connection
Condensing boiler is equipped with low energy pump with a PWM driving Wilo Yonos Para RS 15/7.5. Modulating pump is controlled by the control unit of the boiler according to the chosen strategy. The connection to the heating system, HW and gas is carried out through ball valves. Wilo Yonos Para RS 15/7.5 pump characteristics Fig. - Page 17 Fig. №. 11 Flue gas exhaust and air intake connection options The boiler version B and C is specified by a double digit: the first digit in the index relates to the possible boiler installation with regard to the way of combustion air inlet and flue gas exhaust, the second digit in the index relates to the use and positioning of the built-in ventilator in the boiler.
-
Page 18: Pressure Losses Of Flue Gas Exhaust Components For The Boiler Viadrus Claudius K2
Pipe 1m Note: The number of components for each version depends on the location of the boiler. For the boiler, the flue gas exhaust by ALMEVA is approved see accessories in the price list of VIADRUS a. www.viadrus.cz In the case of an assembly of two or more boilers in a cascade we recommend contacting the company Almeva www.almeva.cz... -
Page 19: Boiler Settings
Boiler settings The product meets the values for “Green product”. The specific measured values depend on the type of connection of the combustion air supply and flue gas exhaust to a given appliance. Therefore, when the boiler commissioning, value should be checked or adjusted. The gas valve is factory set to CO value in the flue gas in the range from 8.4 to 8.8%. -
Page 20: Boiler Operation By User
Using the expansion modules, the control unit can manage up to 3 mixed heating circuits, hot water, cascade, solar, pool, wood-fired boiler etc. (see VIADRUS design documents). Another possible method of the boiler switching boiler is using 0 - 10 V via the input H1. The boiler is then only a heat source. -
Page 21: Energy Saving
8.2.1 Energy saving • Use automatic operation. • Set the desired comfortable temperature. • Use your time program. The main rule is that the Automatic mode must be set as operating mode: In this mode, the controller monitors the heating for optimal heat consumption (e.g.: summer/winter switching). Or you can individually adjust the operating mode for anti-frost, permanent setback, comfort, according to your needs. - Page 22 Time program 3/HC3 Parameter Function Factory settings Min. Max. Units Preset Mo-Su 00:00 24:00 hh:mm Mo-Su : 1. Phase ON 6:00 00:00 24:00 hh:mm Mo-Su : 1. Phase OFF 22:00 00:00 24:00 hh:mm Mo-Su : 2. Phase ON 24:00 00:00 24:00 hh:mm Mo-Su : 2.
- Page 23 Heating circuit 1 Parameter Function Factory settings Min. Max. Units Comfort temperature Line 712 Line 716 °C Setback temperature Line 714 Line 710 °C Anti-frost temperature Line 712 °C Heating curve slope 0.10 4.00 Summer / winter automatic ---/8 °C Req.
-
Page 24: Error Messages
Error messages Table 6 shows a list of the most common fault conditions of the boiler. In case of displaying a different error message, please contact service. Error Maintenance or messages special operation If you see this symbol, it If you see this symbol, it is the fault. -
Page 25: Maintenance
ATTENTION! Boiler sensors do not work as the signalling equipment. When the floor heating is used, it must be provided by an external thermostat. Otherwise, in the case of manual opening of the three-way valve, the floor heating may be damaged. Maintenance The boiler housing can be washed using lukewarm detergent solution. -
Page 26: Important Notice
In case of failure to comply with these conditions, it is not possible to claim warranty repairs. Instructions for product disposal after its service life VIADRUS a.s. is a contract partner of EKO–KOM a.s. with the client number F00120649. Packages comply with CSN EN 13427. -
Page 27: Warranty And Liability For Defects
VIADRUS a.s. provides an extended warranty for the boiler body for a period of 60 months from the date of purchase, and max. 66 months from date of shipment from VIADRUS a.s. - Page 28 Information for customer Packaging identification Assessment reference PE Plastic sacks, folie, corrugated board, iron and plastic fix line Identification of principal materials used. Paper, Polyethylene, iron, wood Part 1: Summary of assessment Standard/Report Assessment requirement Claim Note 1.1 Prevention by source reduction 1.2 Heavy metals and ensure below maximum permitted levels...
- Page 29 Annex to the warranty certificate for customer - user A record of warranty and after-warranty repairs and regular annual product inspections Contracting service Record Customer Carried out activity organization date signature (signature, stamp)
- Page 32 VIADRUS CLAUDIUS K 2 VIADRUS a.s. Bezručova 300 | CZ - 735 81 | Bohumín E-mail : info@viadrus.cz | www.viadrus.cz...
